A Practical Guide To End-to-End Tracing In Event Driven Architectures with Roman Kolesnev

1. A Practical Guide To End-to-End Tracing In Event Driven Architectures

2. Roman - UK developer at PIE Labs PIE Labs, Confluent • What is Distributed Tracing ? • What is OpenTelemetry? • Kafka Client instrumentation • Kafka Streams instrumentation • Kafka Connect instrumentation • Summary Who we are, what we’ll talk about…

3. What is Distributed Tracing (DT)? https://www.altexsoft.com/blog/shipment-tracking-integration-apis-edis-carriers-aggregators/ Systems get complex…

4. Components of a DT system • Instrumentation • Collection • Visualisation https://blog.gurock.com/distributed-tracing /

5. What makes up a trace? https://docs.logz.io/user-guide/distributed-tracing/what-is-tracing

6. Context and Context? • Local Trace Context

7. Context and Context? • Remote Trace Context

8. Trace Context and it’s Propagation?

9. Why Distributed Tracing? Adding context to the message and process flow. • Dependency graph • Record of Event flow • Log correlation • Contextual metrics • Answer questions like: “This result looks weird. Show me all the intermediate states, so I can debug where the weirdness started…”

10. Section: What is OpenTelemetry? • What is Distributed Tracing (DT)? • What is OpenTelemetry? • Kafka Client instrumentation • Kafka Streams instrumentation • Kafka Connect instrumentation

11. Overview of OpenTelemetry 1. Standardised, vendor-agnostic 2. High-quality, ubiquitous, and portable 3. Collection of tools, APIs, and SDKs 4. Instrument, generate 5. Collect, and export 6. To an observability back-end (not OT - e.g. Jaeger) 7. To help you analyze your software’s performance and behavior

12. Support for Kafka in OpenTelemetry Kafka Clients: • Javaagent • Tracing Wrappers • Tracing Interceptors Kafka Streams: • Javaagent • Supply Kafka Clients with Tracing OpenTelmetry instrumentation

13. Javaagent - Auto Instrumentation Agent • Aspect Oriented approach • Byte Buddy • Muzzle • Extension support • Service Provider Interface (SPI) for tracer customization • Installed at runtime through `-javaagent` Java option OpenTelmetry instrumentation agent - how does it work?

14. Tracing Interceptors • Standard Consumer / Producer Interceptor implementations • Installed through Interceptor configuration Tracing Interceptors - how do they work?

15. Tracing Wrappers • Standard Consumer / Producer Interface implementations • Installed through code • Uses java.reflect.Proxy to intercept relevant method calls and add tracing behaviour Tracing Wrappers - how do they work?

16. • What is Distributed Tracing (DT)? • What is OpenTelemetry? • Kafka Client instrumentation • Kafka Streams instrumentation • Kafka Connect instrumentation Section: Kafka Client instrumentation

17. Tracing Consumer Producer Applications Application Flow Trace

18. Tracing Consumer Producer Applications Kafka Receive Telemetry Enabled

21. Tracing Consumer Producer Applications Kafka Receive Telemetry Disabled

24. Comparison of instrumentation methods Interceptor / Wrapper Javaagent

25. Comparison of instrumentation methods - Producer Interceptor Javaagent Wrapper

26. Comparison of instrumentation methods - Consumer Interceptor Javaagent Wrapper

27. Comparison of instrumentation methods Interceptor Wrapper Javaagent Installation Config or Code Code Runtime Producer Metadata Limited Full Full Consumer Metadata Full Full Full Consumer Local Context Not propagated Not propagated Propagated Library Kafka-clients-2.6 Kafka-clients-2.6 Kafka-clients-0.11

29. Kafka Streams support • Kafka Streams specific Process span implementation in Javaagent • Stateless Kafka Streams processing pipelines • Limitations: • Non-javaagent implementation limitations • Stateful operation support • Caching in stateful operations

30. Kafka Streams support - Stateless Javaagent Interceptor / Wrapper

31. Kafka Streams support - Stateless Javaagent Interceptor / Wrapper

32. Kafka Streams support - Stateless Interceptor / Wrapper

33. Kafka Streams support - Stateless Interceptor / Wrapper Javaagent

34. Kafka Streams - Stateful - No Caching

35. Kafka Streams - Stateful - No Caching - Aggregate Span

39. Kafka Streams - Stateful - No Caching - Wrapped Store

42. Kafka Streams - Stateful - Caching

43. Kafka Streams - Stateful - Caching - Aggregate

46. Kafka Streams support - summary • Supported as is with Javaagent: • Stateless • Stateful - with limitations - single thread context, - no caching • Wrapping State Store approach • Inlining Span creation into Stateful operations • Transformer hack - possible repartitioning

48. Kafka Connect support - Source Task

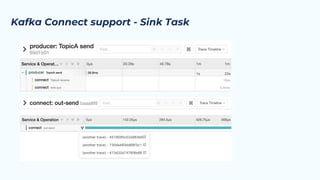

52. Kafka Connect support - Sink Task

55. Future plans & More Information confluent.io/community/ask-the-community rkolesnev@confluent.io https://github.com/rkolesnev/kafka-opentelemetry
