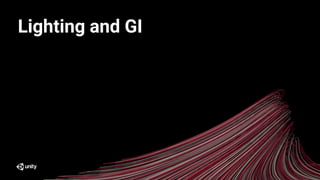

3. Lighting and GI

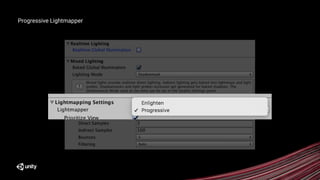

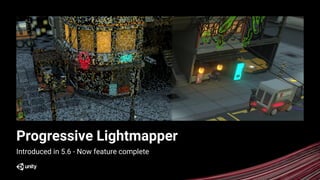

4. Progressive Lightmapper
Introduced in 5.6 - Now feature complete

5. Progressive Lightmapper

6. Progressive Lightmapper

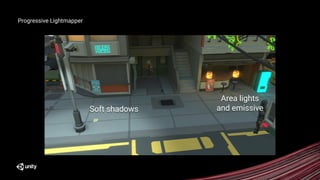

Soft shadows
Area lights
and emissive

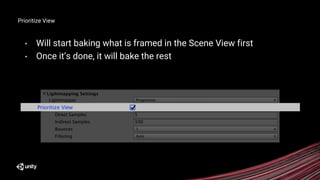

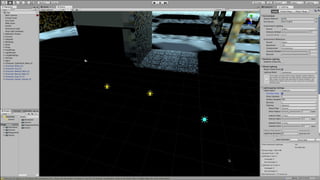

8. Prioritize View

9. Prioritize View
• Will start baking what is framed in the Scene View first
• Once it’s done, it will bake the rest

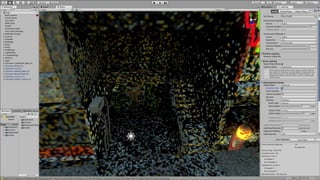

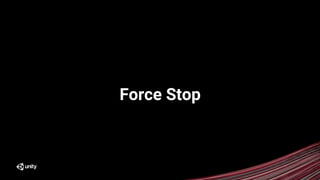

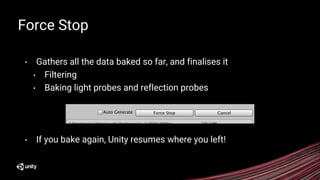

12. Force Stop

13. Force Stop
• Gathers all the data baked so far, and finalises it
• Filtering
• Baking light probes and reflection probes
• If you bake again, Unity resumes where you left!

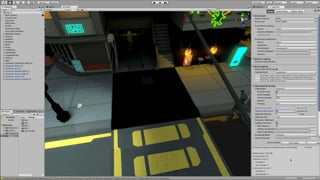

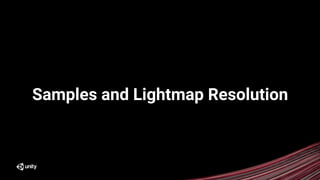

15. Samples and Lightmap Resolution

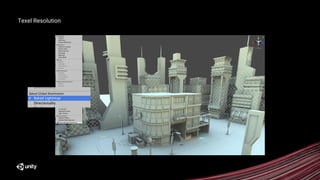

16. Texel Resolution
• Start with a very low resolution to iterate quickly (10-15)
• Don’t inspect the game with the eyes of a creator…
• … but think of how the player will see it!
• You always need a lower resolution than you think!

17. Texel Resolution

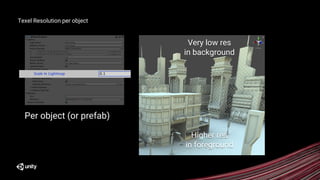

18. Texel Resolution per object
Higher res
in foreground
Very low res
in background
Per object (or prefab)

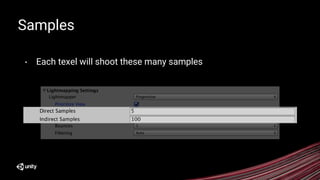

19. Samples
• Each texel will shoot these many samples

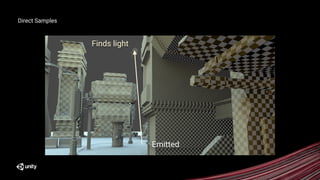

20. Direct Samples
Emitted
Finds light

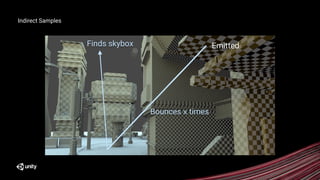

21. Indirect Samples
Bounces x times
EmittedFinds skybox

22. Light Bounces

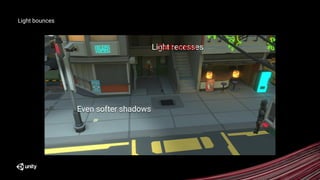

23. Light bounces
Even softer shadows
Light recessesDark areas

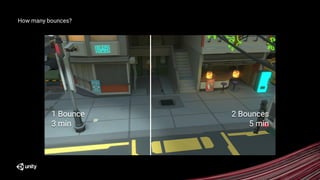

24. How many bounces?
1 Bounce
3 min
2 Bounces
5 min

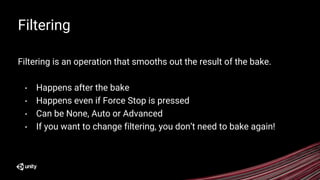

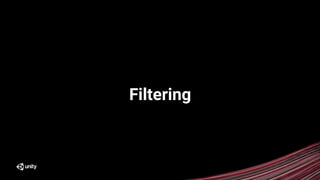

25. Filtering

26. Filtering
Filtering is an operation that smooths out the result of the bake.
• Happens after the bake
• Happens even if Force Stop is pressed
• Can be None, Auto or Advanced
• If you want to change filtering, you don’t need to bake again!

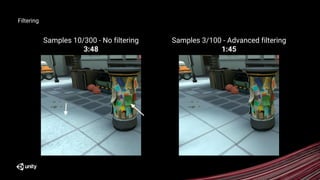

27. Filtering
Samples 10/300 - No filtering
3:48
Samples 3/100 - Advanced filtering
1:45

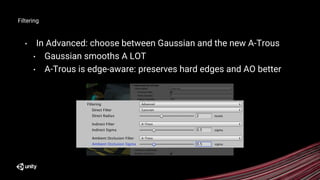

28. • In Advanced: choose between Gaussian and the new A-Trous
• Gaussian smooths A LOT
• A-Trous is edge-aware: preserves hard edges and AO better
Filtering

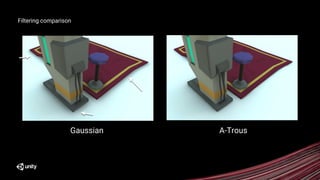

29. Filtering comparison
Gaussian A-Trous

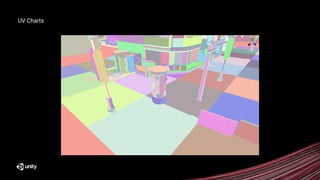

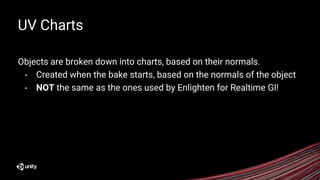

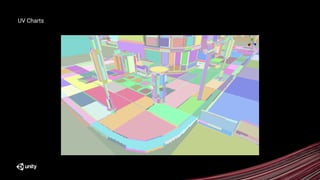

30. UV Charts

31. UV Charts
Objects are broken down into charts, based on their normals.
• Created when the bake starts, based on the normals of the object
• NOT the same as the ones used by Enlighten for Realtime GI!

32. UV Charts

33. UV Charts

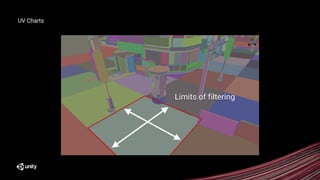

Limits of filtering

34. UV Charts

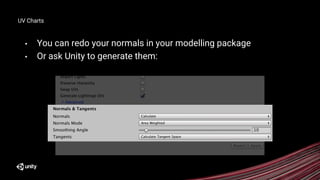

• You can redo your normals in your modelling package
• Or ask Unity to generate them:

35. UV Charts

36. Light Probes

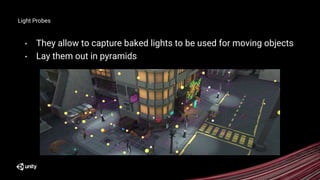

37. Light Probes
• They allow to capture baked lights to be used for moving objects
• Lay them out in pyramids

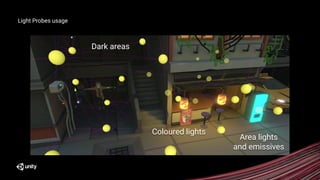

38. Light Probes usage
Dark areas
Area lights
and emissives
Coloured lights

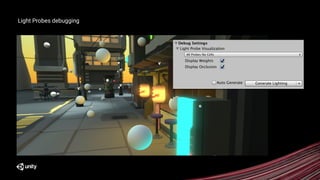

40. Light Probes debugging

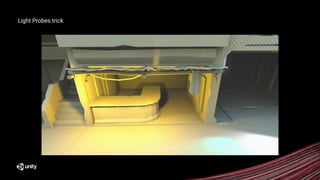

41. Light Probes trick

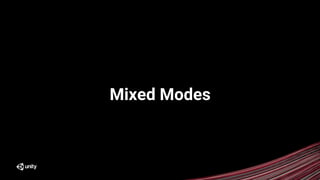

42. Mixed Modes

43. Mixed Modes

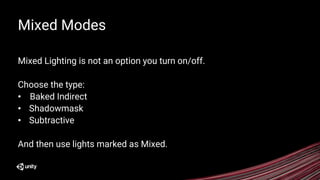

Mixed Lighting is not an option you turn on/off.
Choose the type:
• Baked Indirect
• Shadowmask
• Subtractive
And then use lights marked as Mixed.

44. Subtractive

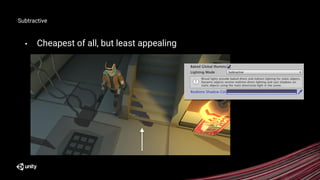

• Cheapest of all, but least appealing

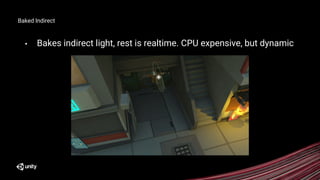

45. Baked Indirect
• Bakes indirect light, rest is realtime. CPU expensive, but dynamic

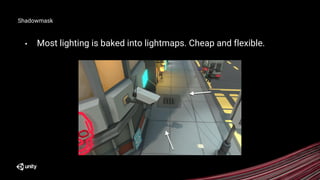

46. Shadowmask
• Most lighting is baked into lightmaps. Cheap and flexible.

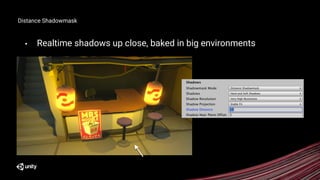

47. Distance Shadowmask
• Realtime shadows up close, baked in big environments

48. Various Tips

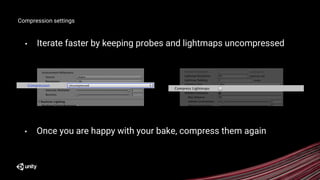

49. Compression settings
• Iterate faster by keeping probes and lightmaps uncompressed
• Once you are happy with your bake, compress them again

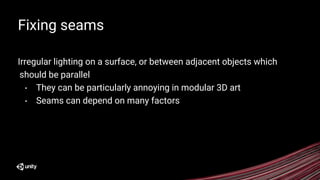

50. Fixing seams
Irregular lighting on a surface, or between adjacent objects which
should be parallel
• They can be particularly annoying in modular 3D art
• Seams can depend on many factors

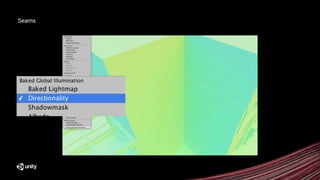

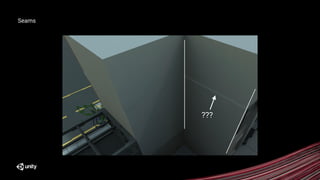

51. Seams
???

52. Seams

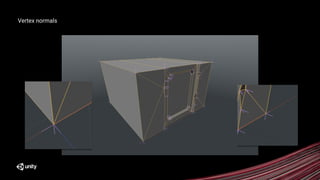

53. Vertex normals

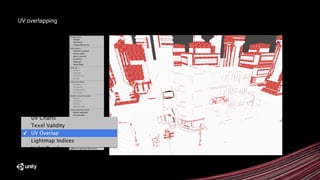

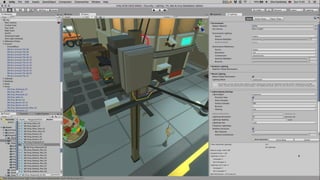

54. UV overlapping
