OIT and Indirect Illumination using DX11 Linked Lists<br />Holger Gruen	AMD ISV Relations<br />Nicolas Thibieroz	AMD ISV R...

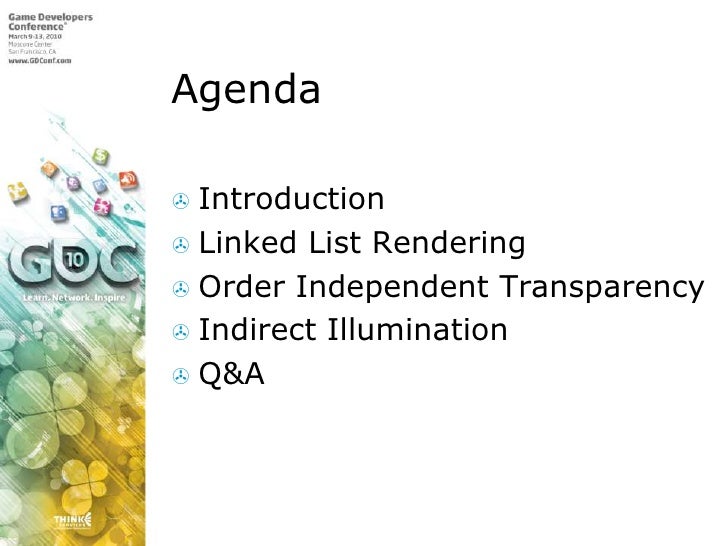

Agenda<br />Introduction<br />Linked List Rendering<br />Order Independent Transparency<br />Indirect Illumination<br />Q&...

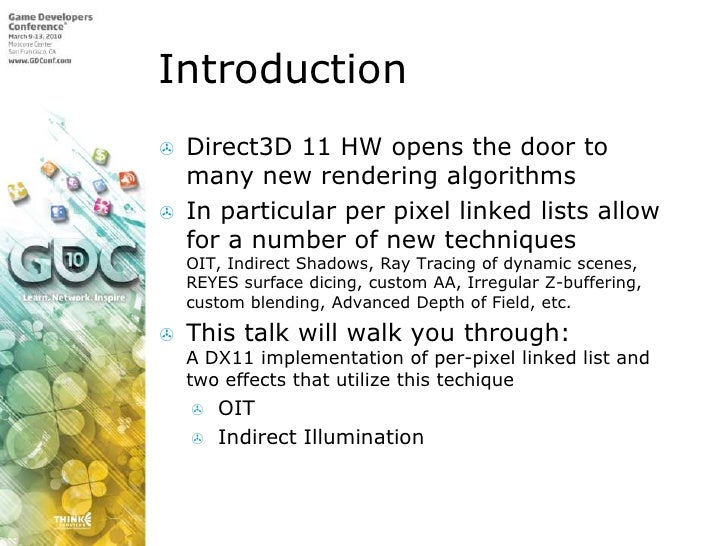

Introduction<br />Direct3D 11 HW opens the door to many new rendering algorithms<br />In particular per pixel linked lists...

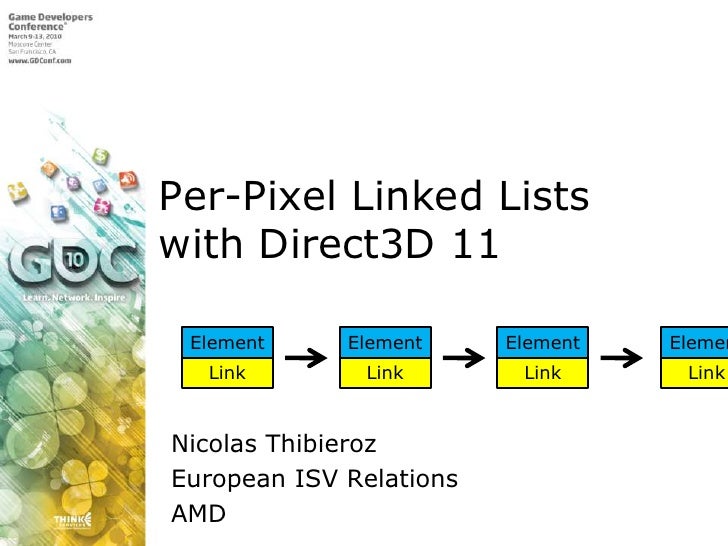

Per-Pixel Linked Lists with Direct3D 11<br />Element<br />Element<br />Element<br />Element<br />Link<br />Link<br />Link<...

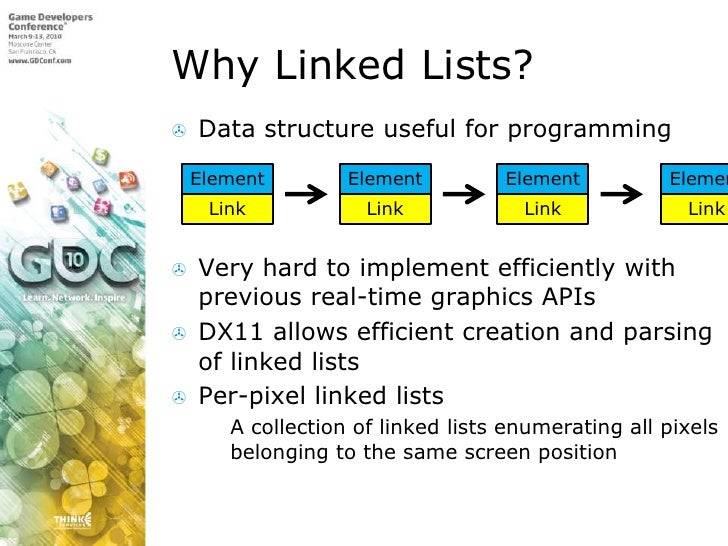

Why Linked Lists?<br />Data structure useful for programming<br />Very hard to implement efficiently with previous real-ti...

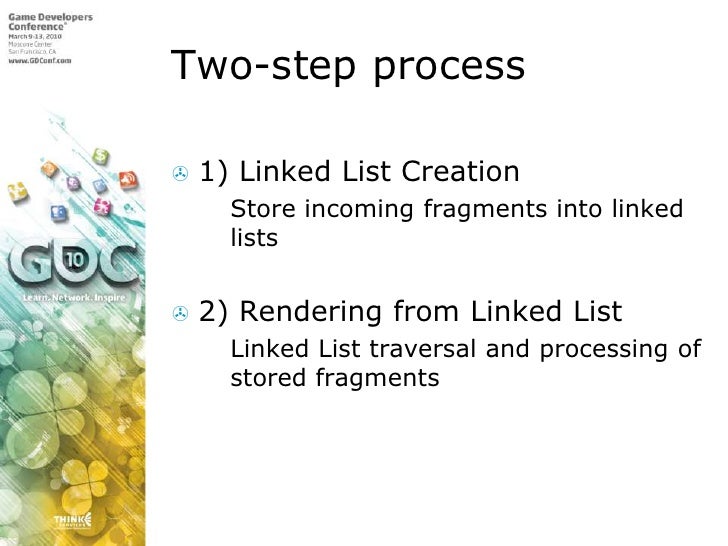

Two-step process<br />1) Linked List Creation<br />Store incoming fragments into linked lists<br />2) Rendering from Linke...

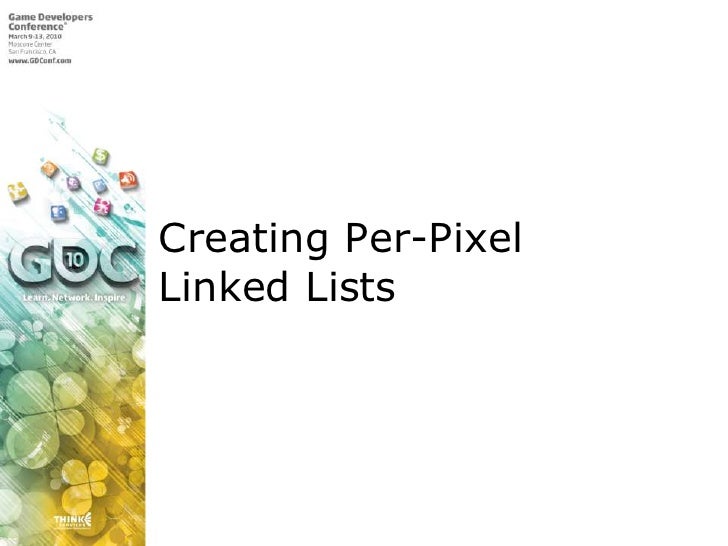

Creating Per-Pixel Linked Lists<br />
PS5.0 and UAVs<br />Uses a Pixel Shader 5.0 to store fragments into linked lists<br />Not a Compute Shader 5.0!<br />Uses ...

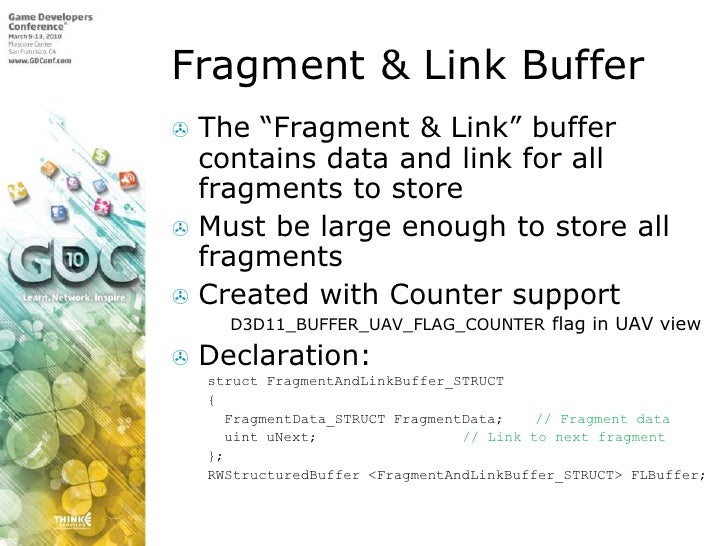

Fragment & Link Buffer<br />The “Fragment & Link” buffer contains data and link for all fragments to store<br />Must be la...

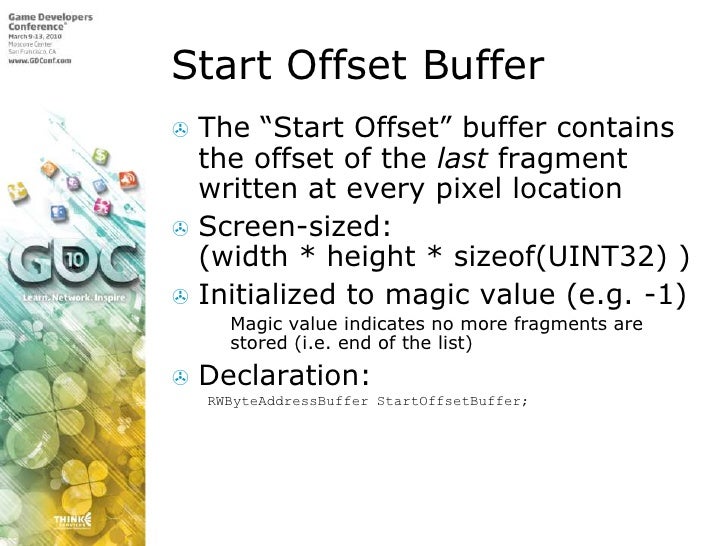

Start Offset Buffer<br />The “Start Offset” buffer contains the offset of the last fragment written at every pixel locatio...
Linked List Creation (1)<br />No color Render Target bound!<br />No rendering yet, just storing in L.L.<br />Depth buffer ...

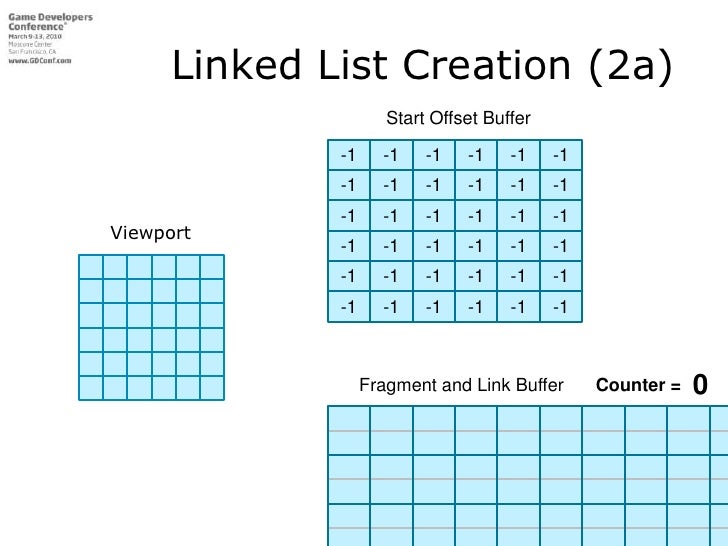

Linked List Creation (2a)<br />Start Offset Buffer<br />-1<br />-1<br />-1<br />-1<br />-1<br />-1<br />-1<br />-1<br />-1...

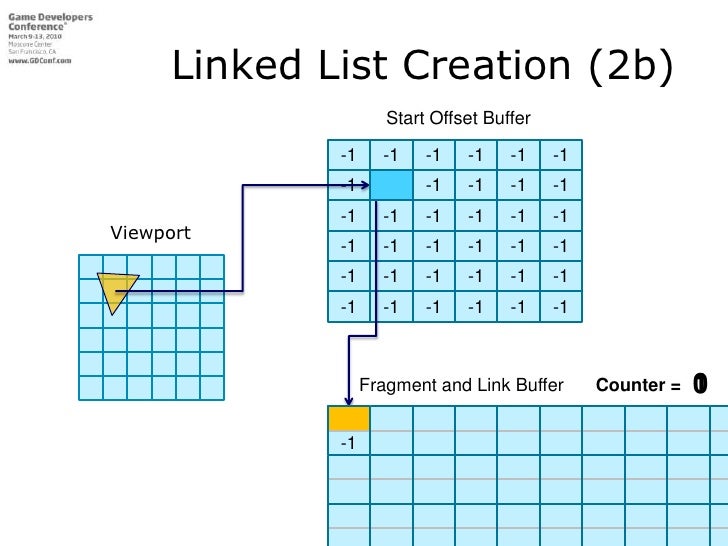

Linked List Creation (2b)<br />Start Offset Buffer<br />-1<br />-1<br />-1<br />-1<br />-1<br />-1<br />-1<br />-1<br />-1...

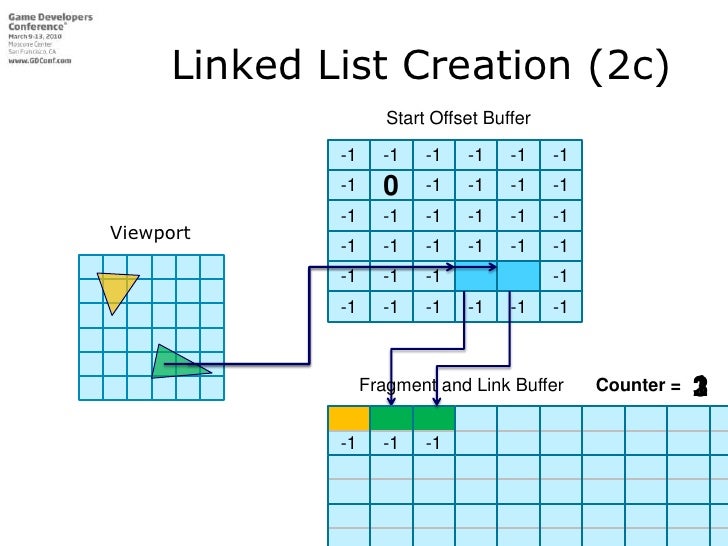

Linked List Creation (2c)<br />Start Offset Buffer<br />-1<br />-1<br />-1<br />-1<br />-1<br />-1<br />-1<br />0<br />-1<...

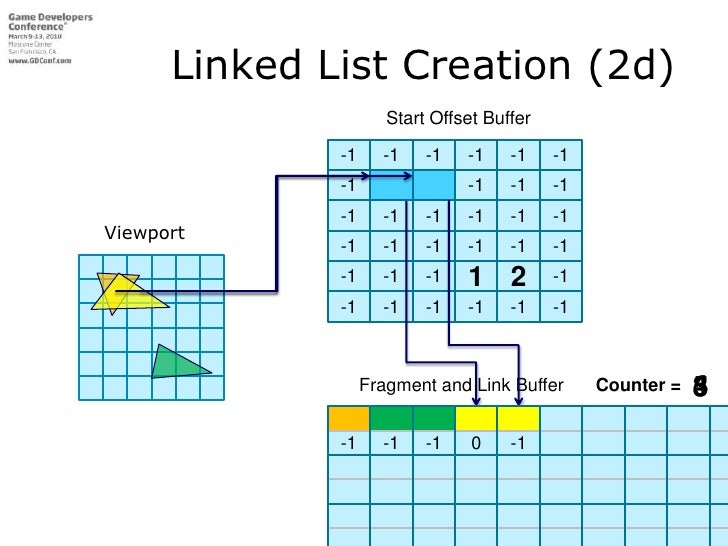

Linked List Creation (2d)<br />Start Offset Buffer<br />-1<br />-1<br />-1<br />-1<br />-1<br />-1<br />-1<br />-1<br />-1...
Linked List Creation - Code<br />float PS_StoreFragments(PS_INPUT input) : SV_Target<br />{<br /> // Calculate fragment da...

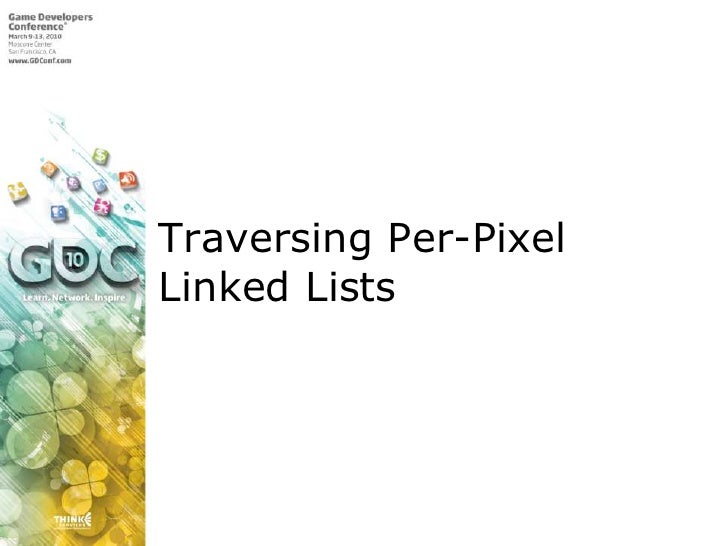

Traversing Per-Pixel Linked Lists<br />

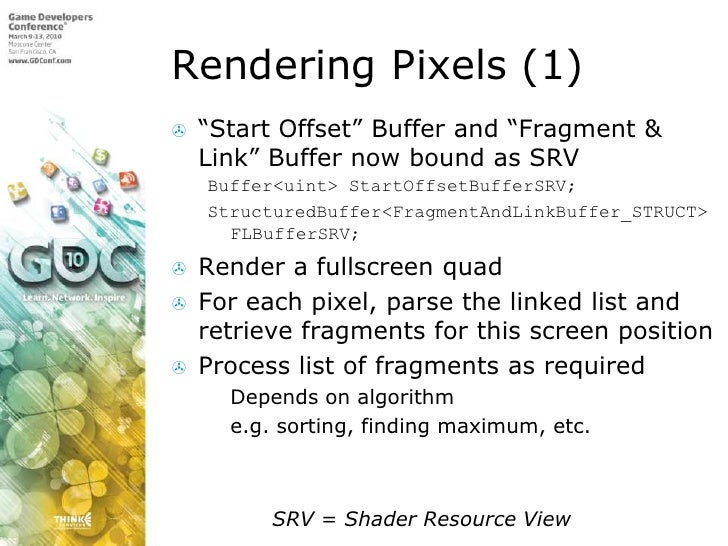

Rendering Pixels (1)<br />“Start Offset” Buffer and “Fragment & Link” Buffer now bound as SRV<br />Buffer<uint> StartOffse...
Rendering from Linked List<br />Start Offset Buffer<br />-1<br />-1<br />-1<br />-1<br />-1<br />-1<br />4<br />-1<br />-1...

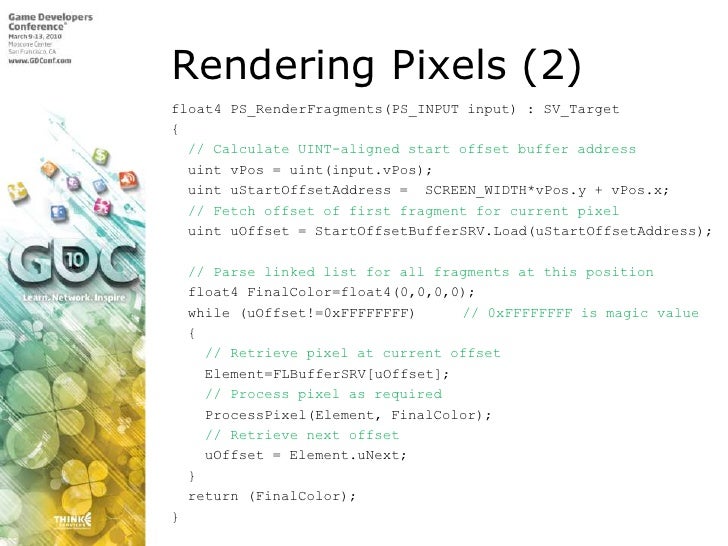

Rendering Pixels (2)<br />float4 PS_RenderFragments(PS_INPUT input) : SV_Target<br />{<br />  // Calculate UINT-aligned st...

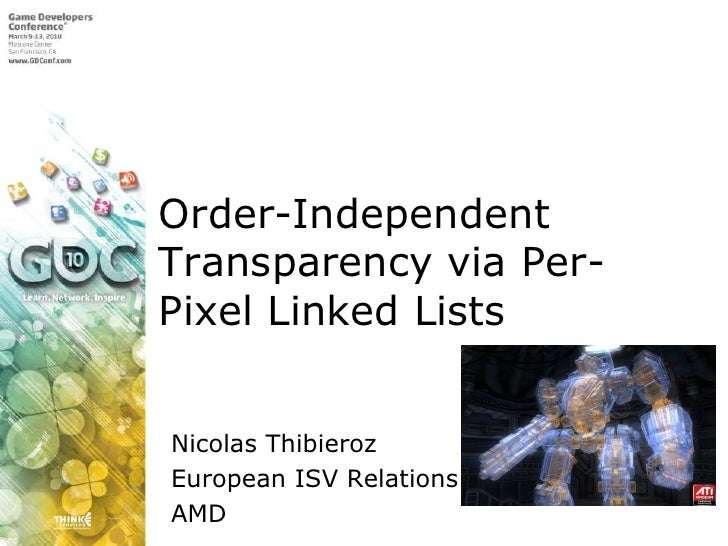

Order-Independent Transparency via Per-Pixel Linked Lists<br />Nicolas Thibieroz<br />European ISV Relations<br />AMD<br />

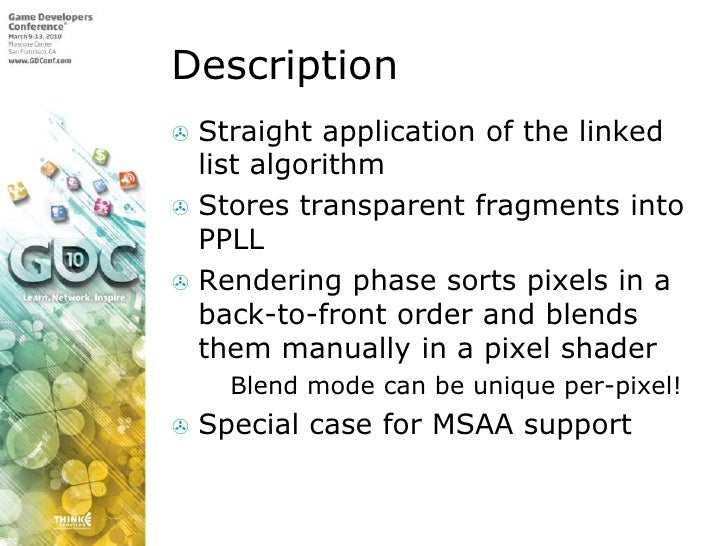

Description<br />Straight application of the linked list algorithm<br />Stores transparent fragments into PPLL<br />Render...

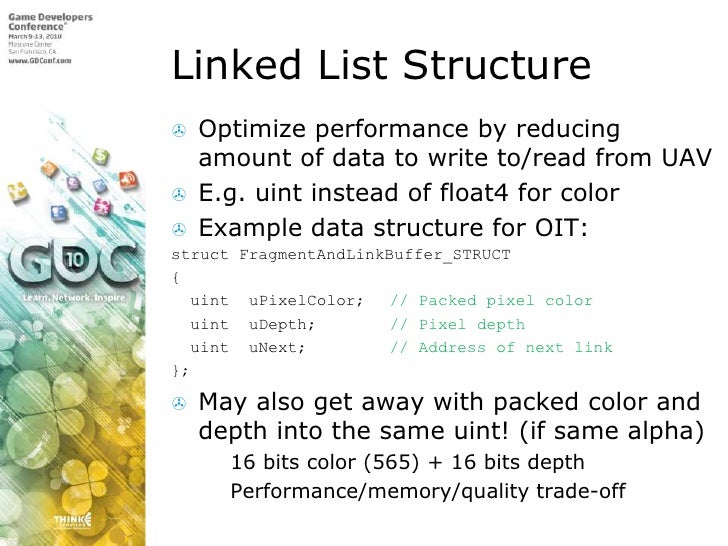

Linked List Structure<br />Optimize performance by reducing amount of data to write to/read from UAV<br />E.g. uint instea...

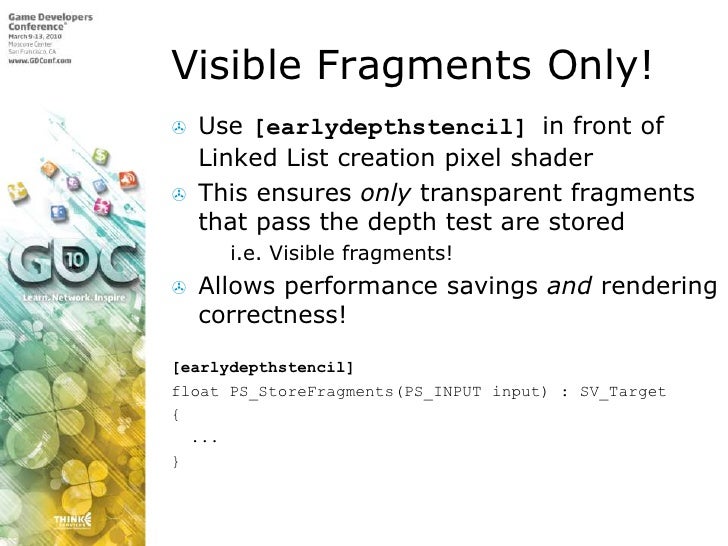

Visible Fragments Only!<br />Use [earlydepthstencil] in front of Linked List creation pixel shader<br />This ensures only ...
Sorting Pixels<br />Sorting in place requires R/W access to Linked List<br />Sparse memory accesses = slow!<br />Better wa...

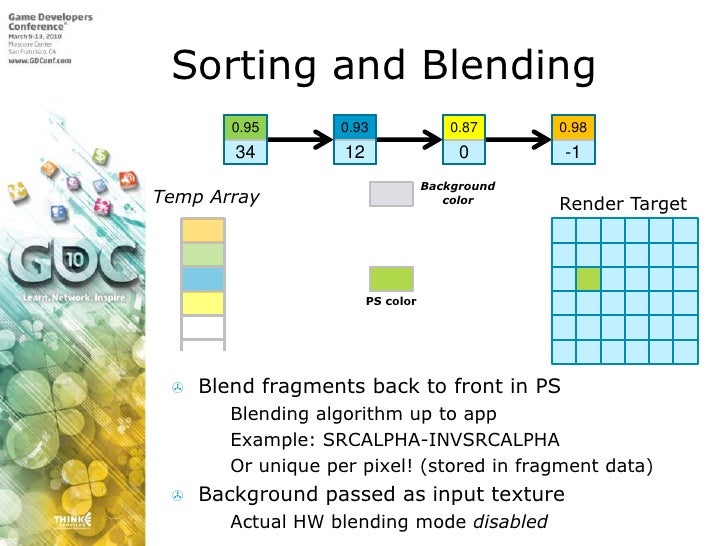

Sorting and Blending<br />0.95<br />0.93<br />0.87<br />0.98<br />Background<br />color<br />Temp Array<br />Render Target...

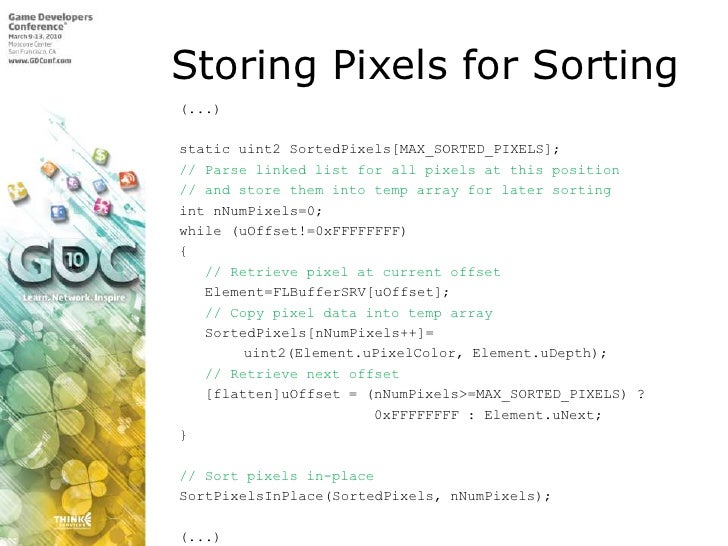

Storing Pixels for Sorting<br /> (...)<br /> static uint2 SortedPixels[MAX_SORTED_PIXELS]; <br /> // Parse linked list for...

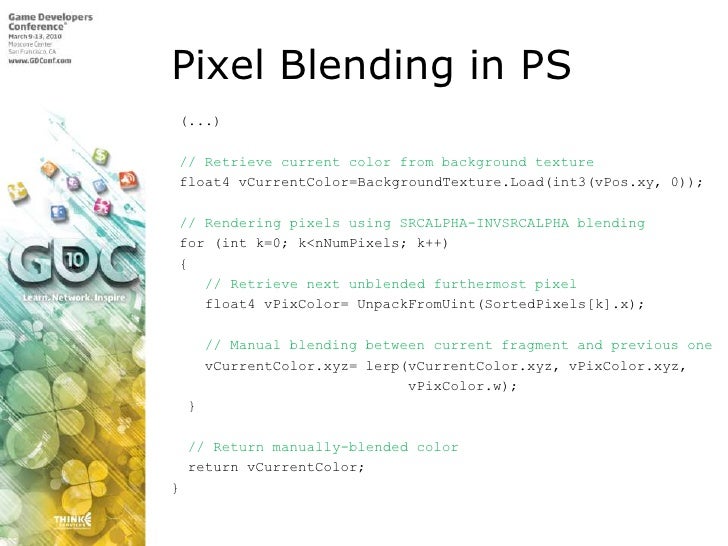

Pixel Blending in PS<br /> (...)<br /> // Retrieve current color from background texture<br /> float4 vCurrentColor=Backgr...
OIT via Per-Pixel Linked Lists with MSAA Support<br />

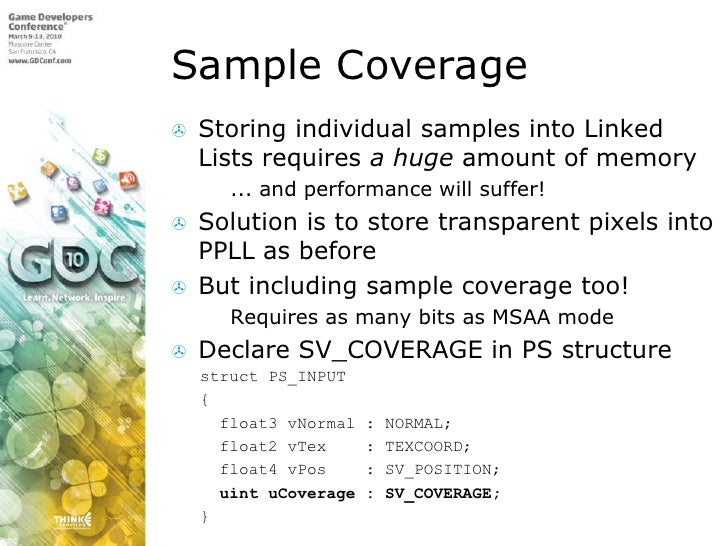

Sample Coverage<br />Storing individual samples into Linked Lists requires a huge amount of memory<br />... and performanc...

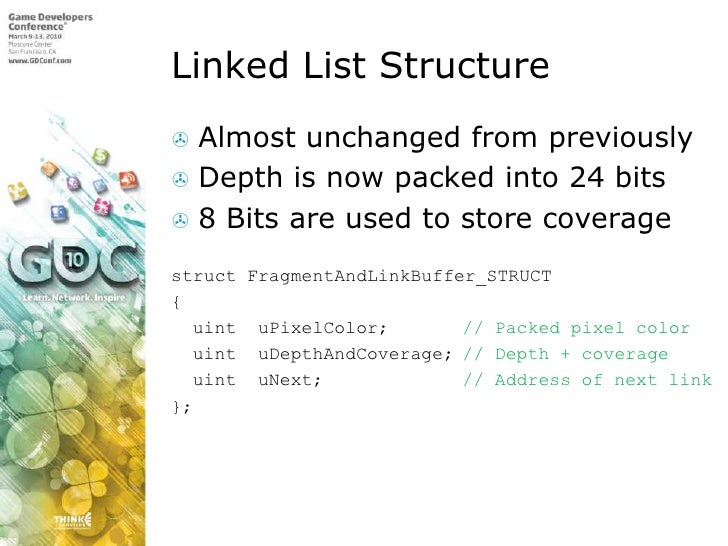

Linked List Structure<br />Almost unchanged from previously<br />Depth is now packed into 24 bits<br />8 Bits are used to ...
Sample Coverage Example<br />Pixel Center<br />Sample<br />Third sample is covered<br />uCoverage = 0x04           (0100 i...
Rendering Samples (1)<br />Rendering phase needs to be able to write individual samples<br />Thus PS is run at sample freq...
Rendering Samples (2)<br /> static uint2 SortedPixels[MAX_SORTED_PIXELS]; <br /> // Parse linked list for all pixels at th...
DEMO<br />OIT Linked List Demo<br />
Direct3D 11 Indirect Illumination<br />Holger GruenEuropean ISV Relations AMD<br />
Indirect Illumination Introduction 1<br />Real-time Indirect illumination is an active research topic<br />Numerous approa...

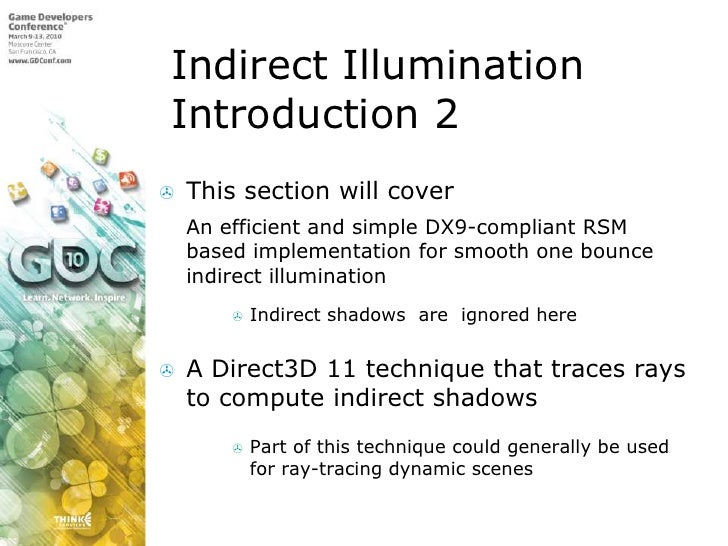

Indirect Illumination Introduction 2<br />This section will coverAn efficient and simple DX9-compliant RSM based implement...

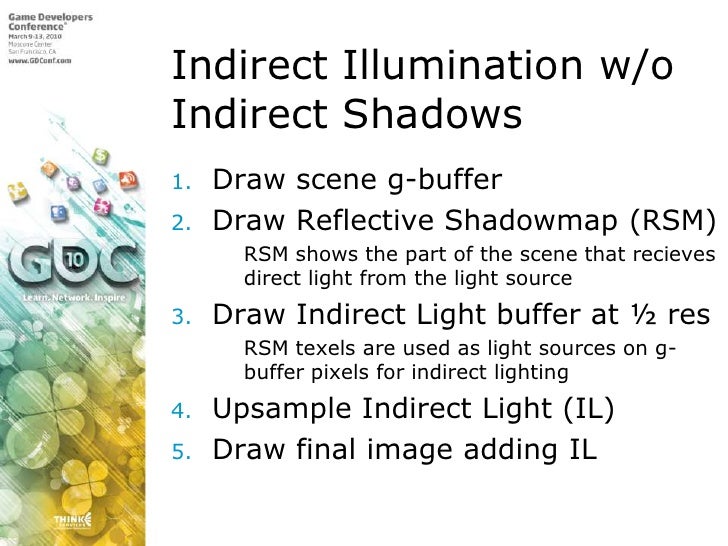

Indirect Illumination w/o Indirect Shadows<br />Draw scene g-buffer<br />Draw Reflective Shadowmap (RSM)<br />RSM shows th...

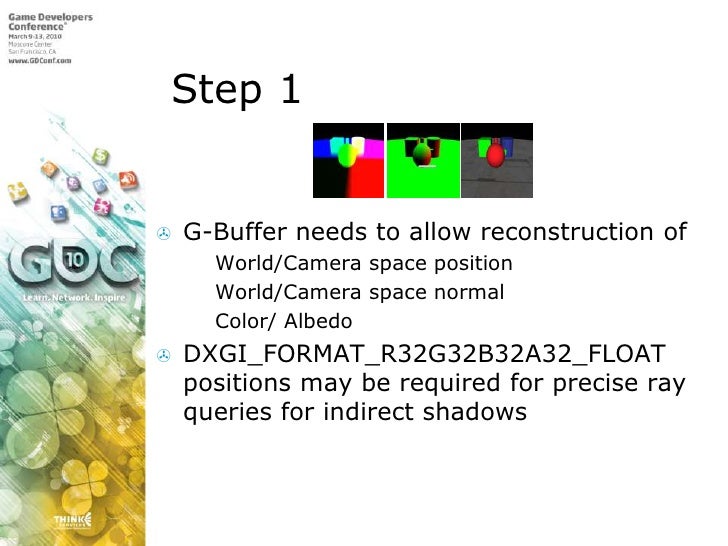

Step 1<br />G-Buffer needs to allow reconstruction of<br />World/Camera space position<br />World/Camera space normal<br /...

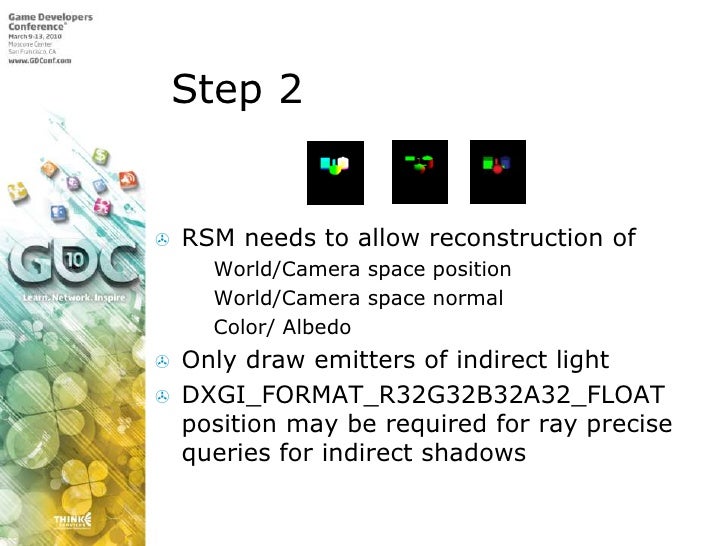

Step 2<br />RSM needs to allow reconstruction of<br />World/Camera space position<br />World/Camera space normal<br />Colo...

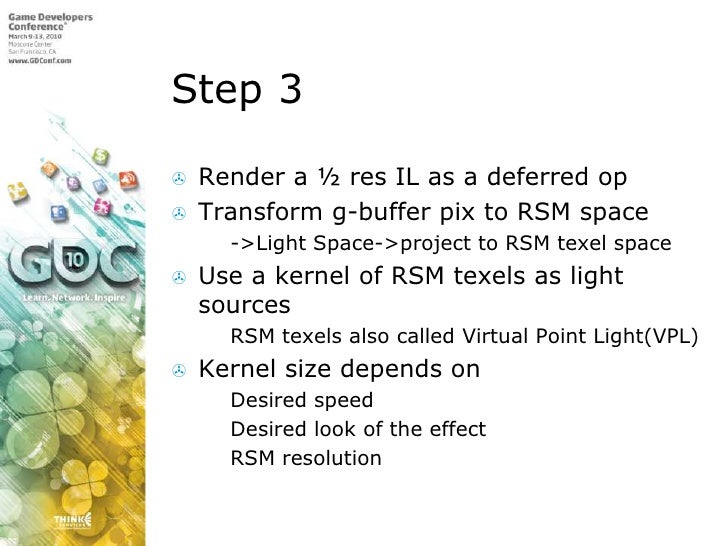

Step 3<br />Render a ½ res IL as a deferred op<br />Transform g-buffer pix to RSM space<br />->Light Space->project to RSM...

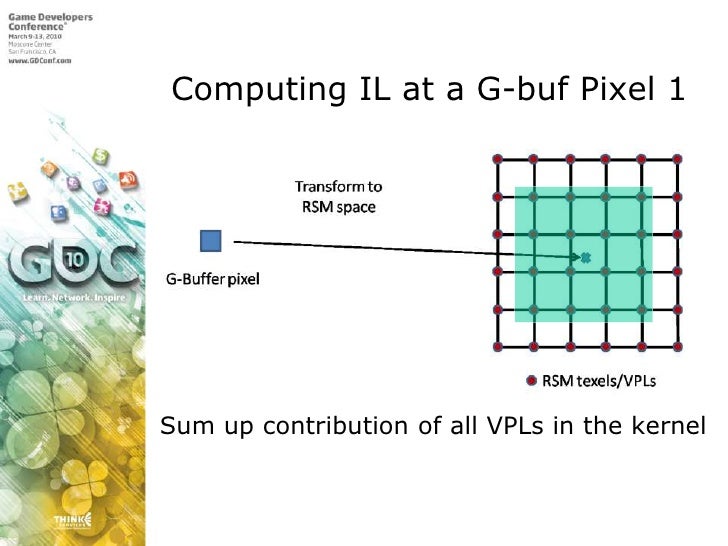

Computing IL at a G-buf Pixel 1<br />Sum up contribution of all VPLs in the kernel<br />

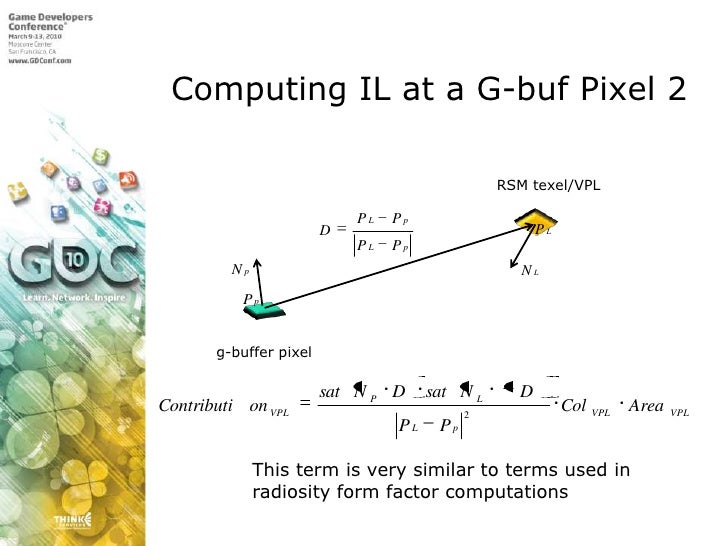

Computing IL at a G-buf Pixel 2<br />RSM texel/VPL<br />g-buffer pixel<br />This term is very similar to terms used in rad...

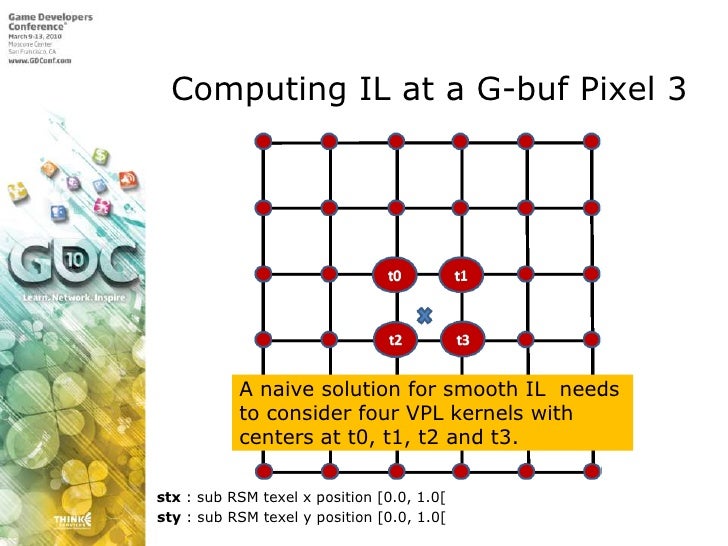

Computing IL at a G-buf Pixel 3<br />A naive solution for smooth IL  needs to consider four VPL kernels with centers at t0...
Computing IL at a g-buf pixel 4<br />IndirectLight =<br /> (1.0f-sty) * ((1.0f-stx) *     + stx *     ) +<br />  (0.0f+sty...

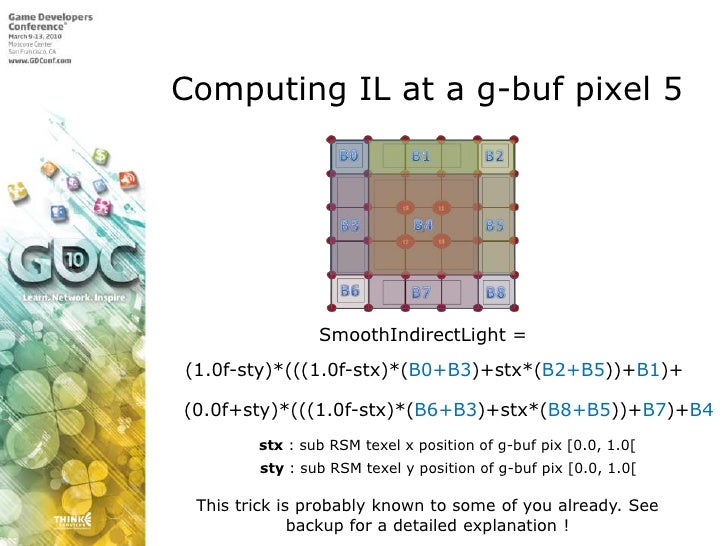

Computing IL at a g-buf pixel 5<br />SmoothIndirectLight =<br /> (1.0f-sty)*(((1.0f-stx)*(B0+B3)+stx*(B2+B5))+B1)+<br /> (...
Indirect Light Buffer<br />

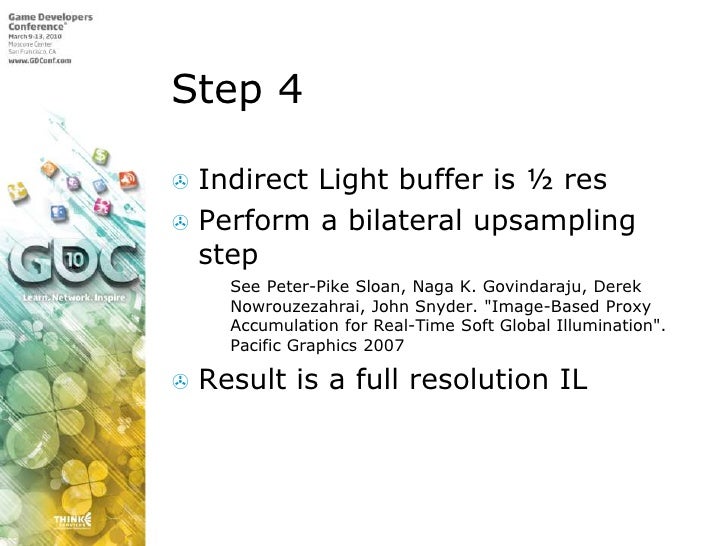

Step 4<br />Indirect Light buffer is ½ res<br />Perform a bilateral upsampling step<br />SeePeter-Pike Sloan, Naga K. Govi...

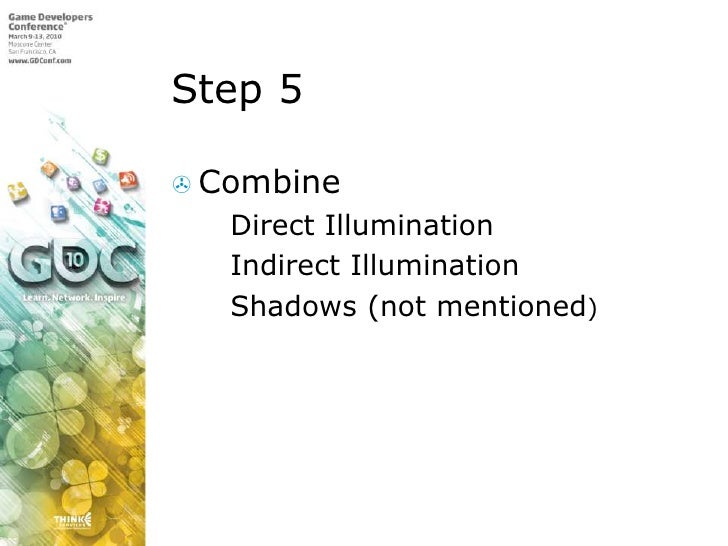

Step 5<br />Combine <br />Direct Illumination<br />Indirect Illumination<br />Shadows (not mentioned)<br />

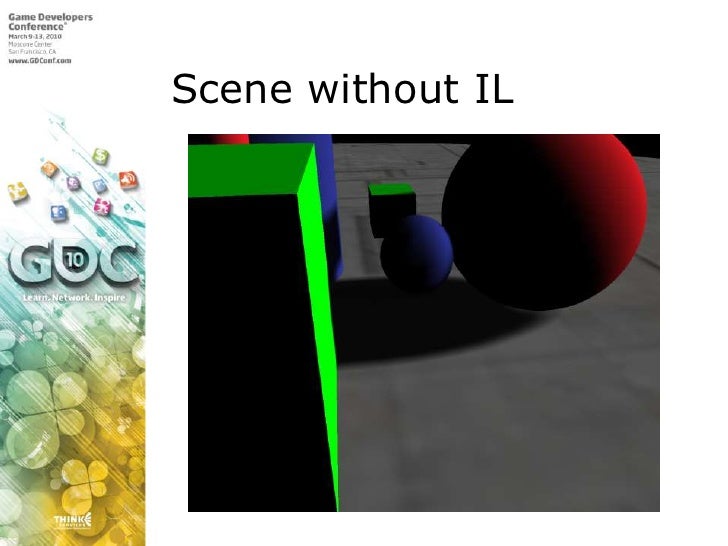

Scene without IL<br />

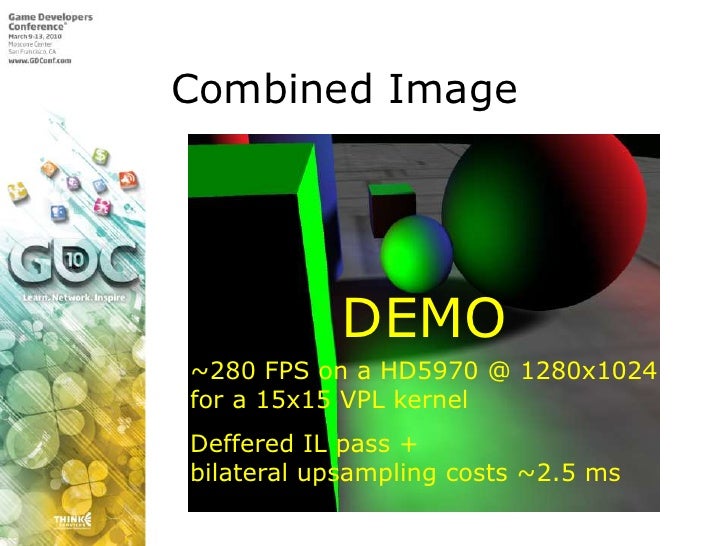

Combined Image<br />DEMO<br />~280 FPS on a HD5970 @ 1280x1024<br />for a 15x15 VPL kernel<br />Deffered IL pass + bilater...

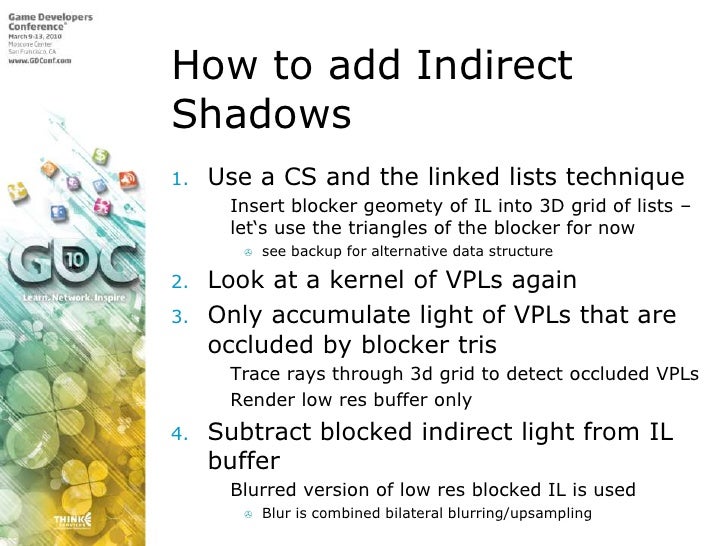

How to add Indirect Shadows<br />Use a CS and the linked lists technique<br />Insert blocker geomety of IL into 3D grid of...

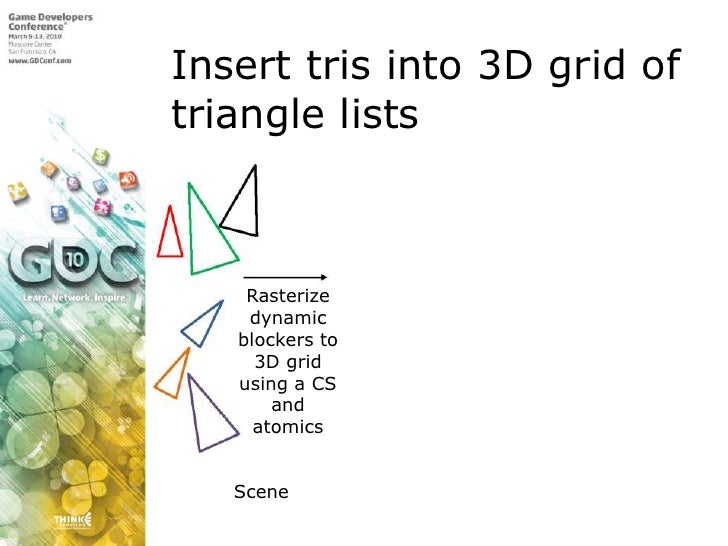

Insert tris into 3D grid of triangle lists<br />Rasterize dynamic blockers to 3D grid using a CS and atomics<br />Scene<br />

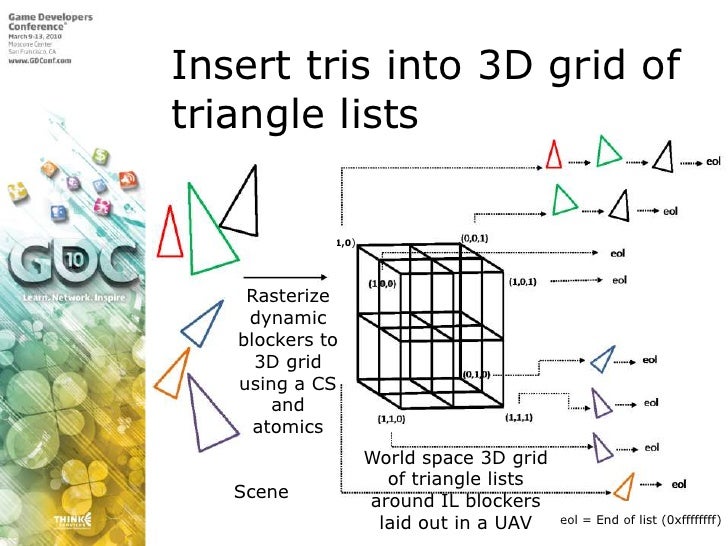

Insert tris into 3D grid of triangle lists<br />(0,1,0)<br />Rasterize dynamic blockers to 3D grid using a CS and atomics<...

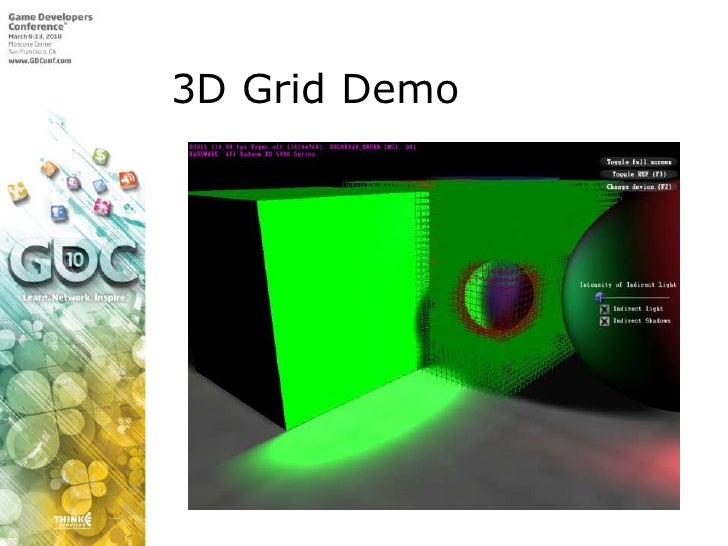

3D Grid Demo<br />

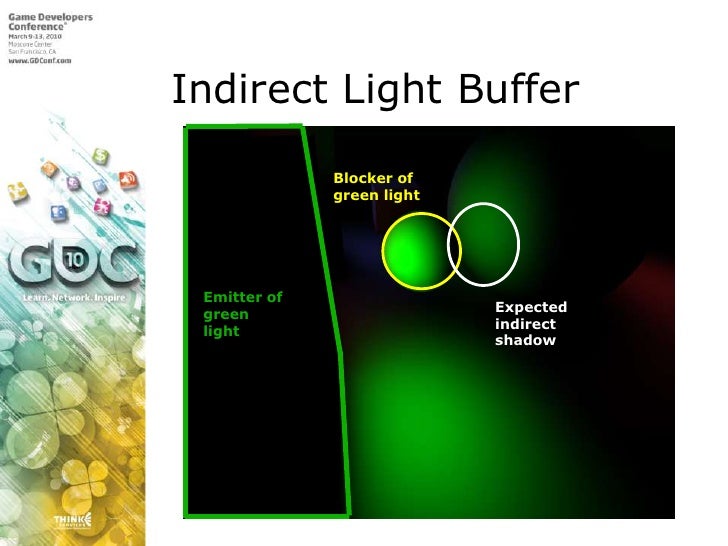

Indirect Light Buffer<br />Blocker of green light<br />Emitter of green<br />light<br />Expected<br />indirect shadow<br />
Blocked Indirect Light<br />

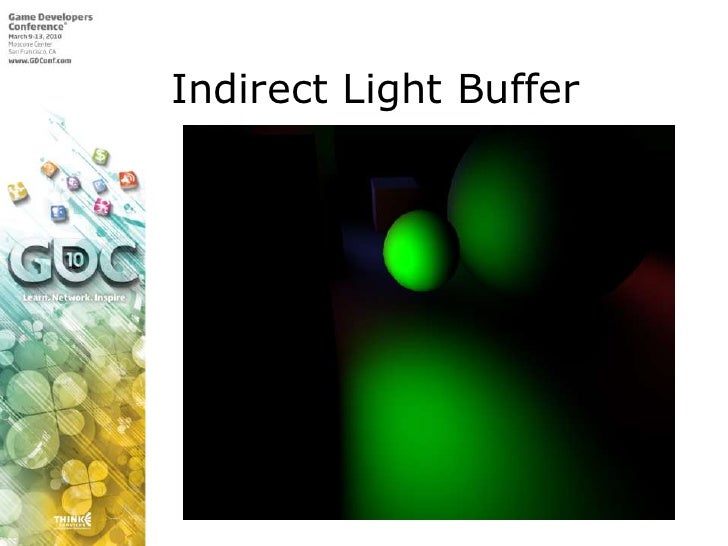

Indirect Light Buffer<br />

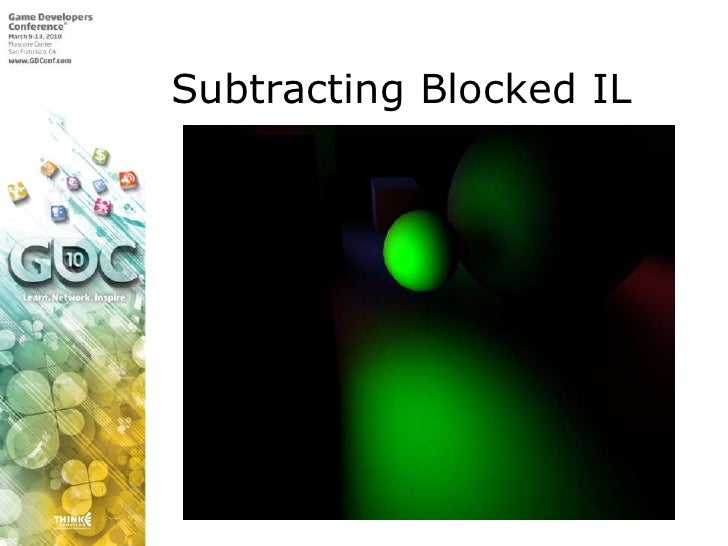

Subtracting Blocked IL<br />

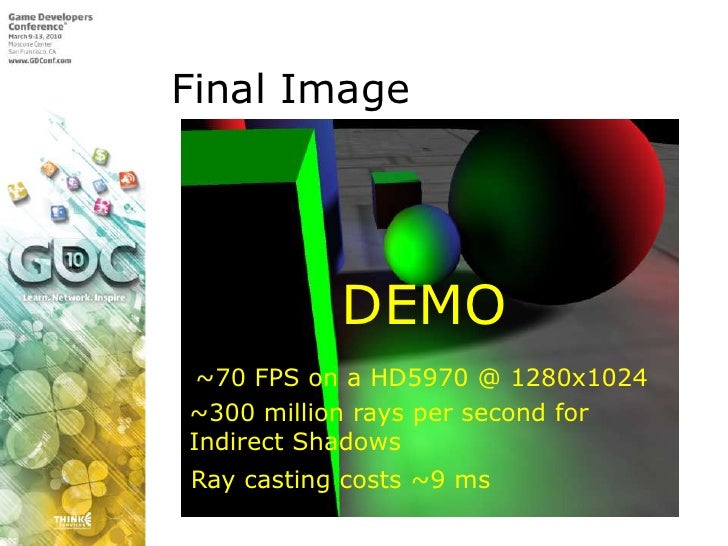

Final Image<br />DEMO<br />~70 FPS on a HD5970 @ 1280x1024<br />~300 million rays per second for Indirect Shadows<br />Ray...

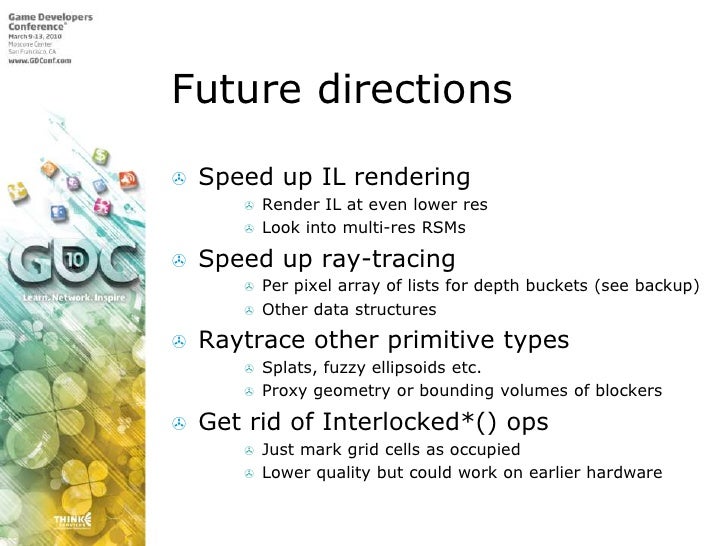

Future directions<br />Speed up IL rendering<br />Render IL at even lower res<br />Look into multi-res RSMs<br />Speed up ...

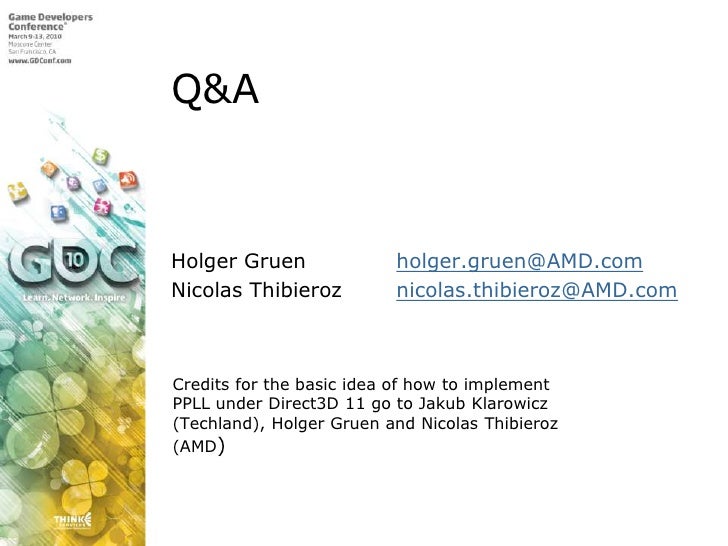

Q&A<br />Holger Gruen 		 holger.gruen@AMD.com<br />Nicolas Thibieroz 	 nicolas.thibieroz@AMD.com<br />Credits for the basi...
Backup Slides IL<br />

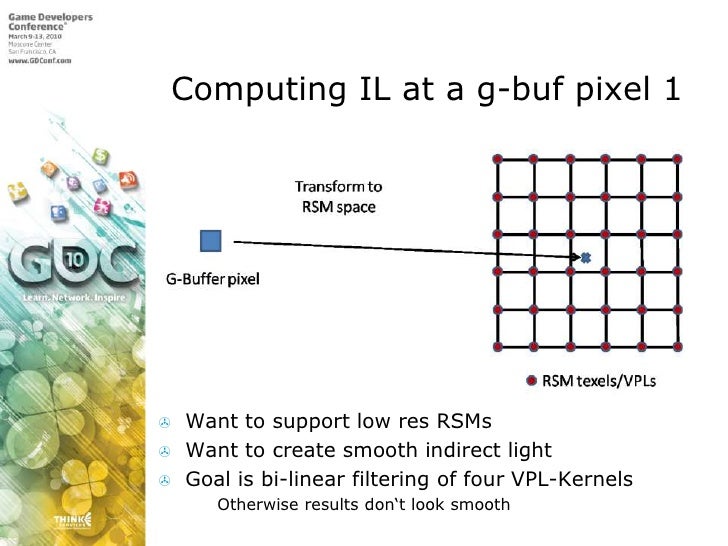

Computing IL at a g-buf pixel 1<br />Want to support low res RSMs<br />Want to create smooth indirect light <br />Goal is ...

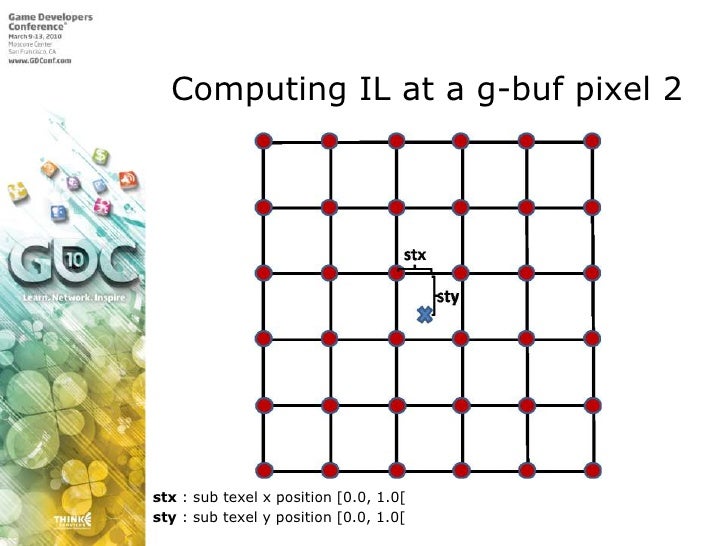

Computing IL at a g-buf pixel 2<br />stx : sub texel x position [0.0, 1.0[<br />sty : sub texel y position [0.0, 1.0[<br />
Computing IL at a g-buf pixel 3<br />For smooth IL one needs to consider four VPL kernels with centers at t0, t1, t2 and t...

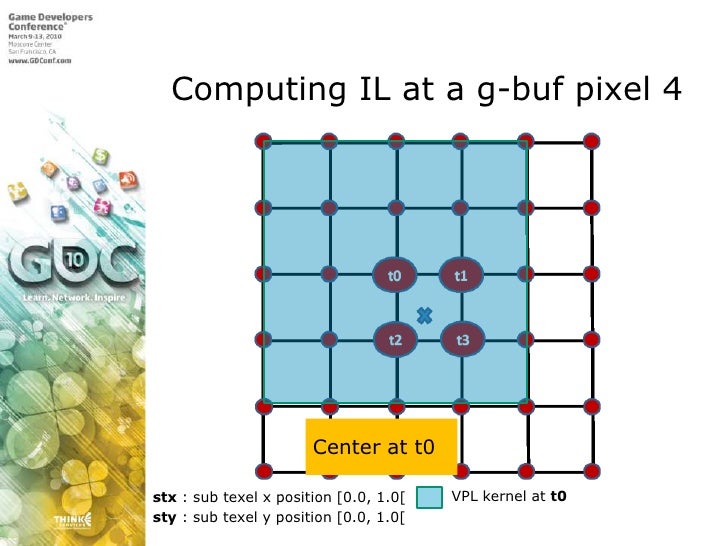

Computing IL at a g-buf pixel 4<br />Center at t0<br />VPL kernel at t0<br />stx : sub texel x position [0.0, 1.0[<br />st...

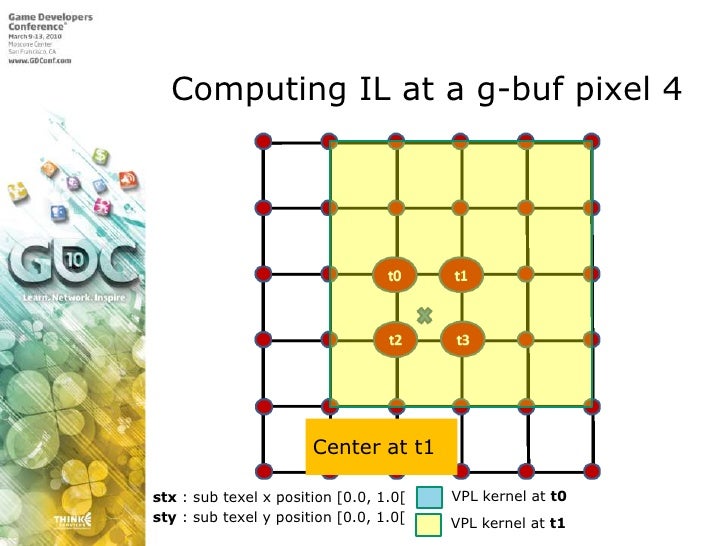

Computing IL at a g-buf pixel 4<br />Center at t1<br />VPL kernel at t0<br />stx : sub texel x position [0.0, 1.0[<br />st...

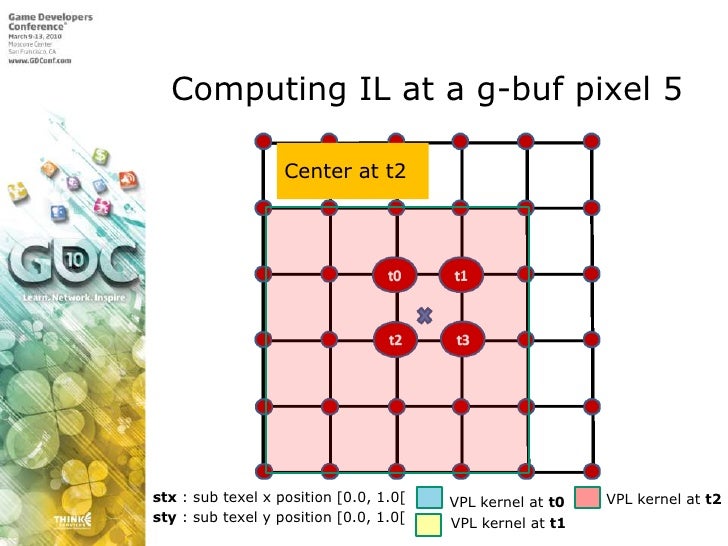

Computing IL at a g-buf pixel 5<br />Center at t2<br />stx : sub texel x position [0.0, 1.0[<br />VPL kernel at t2<br />VP...

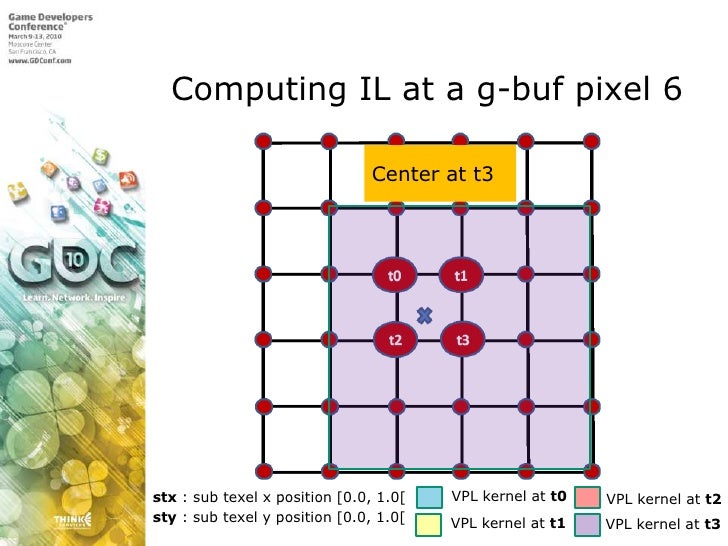

Computing IL at a g-buf pixel 6<br />Center at t3<br />VPL kernel at t0<br />stx : sub texel x position [0.0, 1.0[<br />VP...

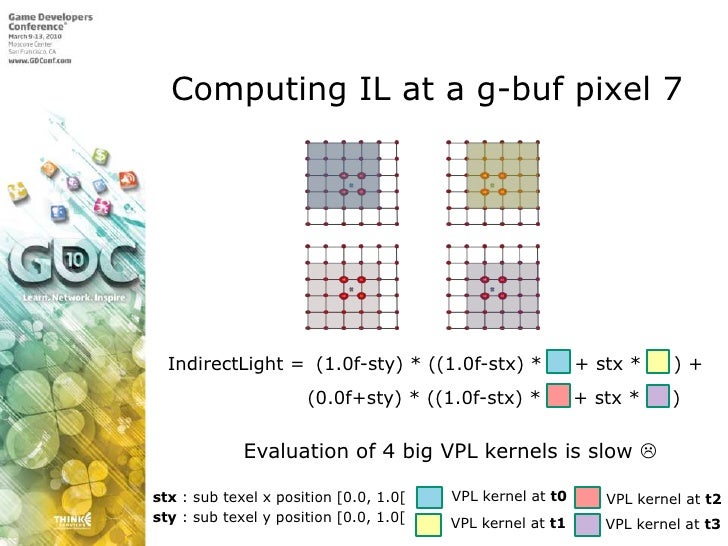

Computing IL at a g-buf pixel 7<br />IndirectLight =<br /> (1.0f-sty) * ((1.0f-stx) *     + stx *     ) +<br />  (0.0f+sty...

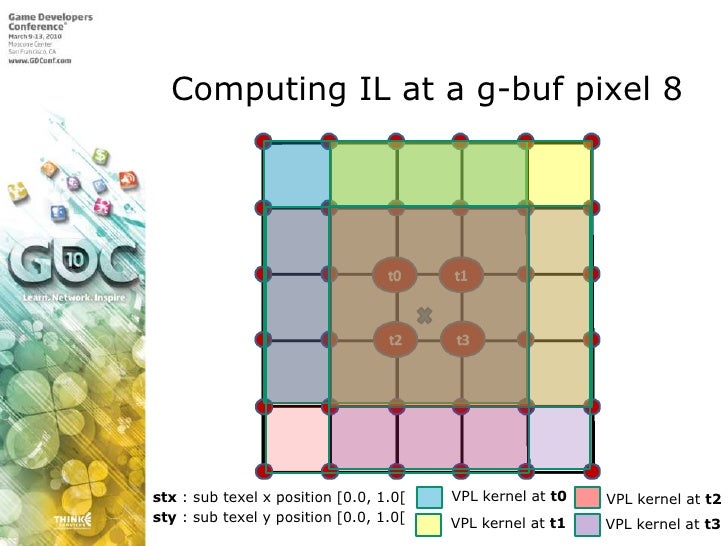

Computing IL at a g-buf pixel 8<br />VPL kernel at t0<br />stx : sub texel x position [0.0, 1.0[<br />VPL kernel at t2<br ...

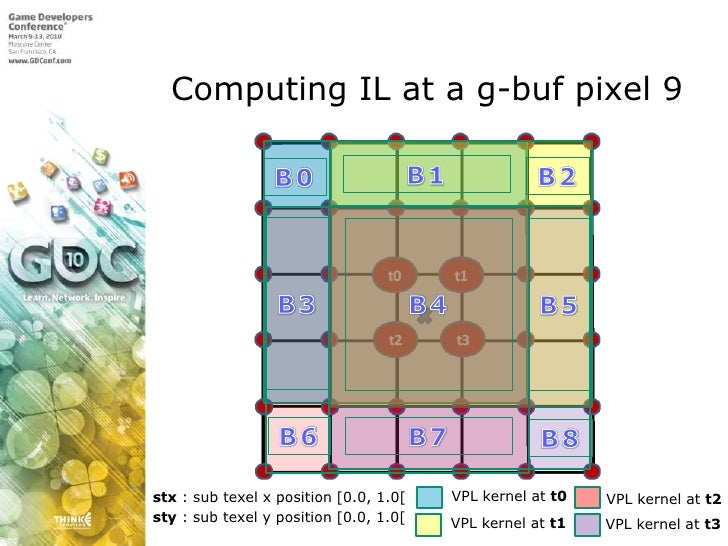

Computing IL at a g-buf pixel 9<br />B1<br />B2<br />B0<br />B3<br />B4<br />B5<br />B6<br />B7<br />B8<br />VPL kernel at...
Computing IL at a g-buf pixel 9<br />IndirectLight =<br /> (1.0f-sty)*(((1.0f-stx)*(B0+B3)+stx*(B2+B5))+B1)+<br /> (0.0f+s...

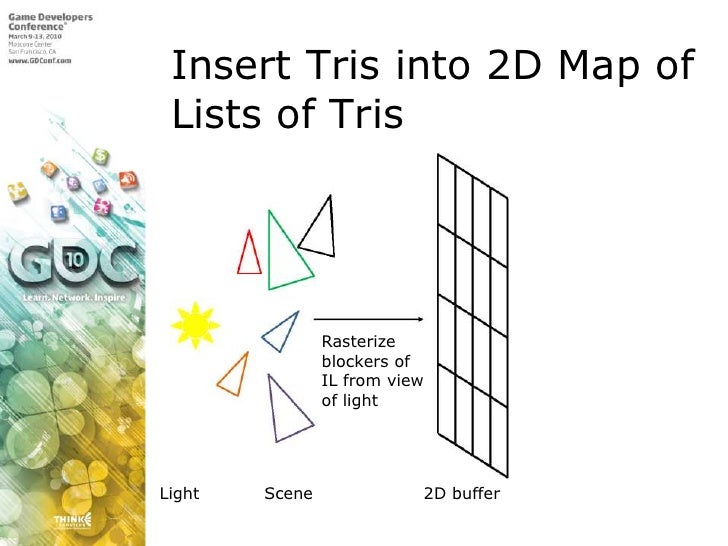

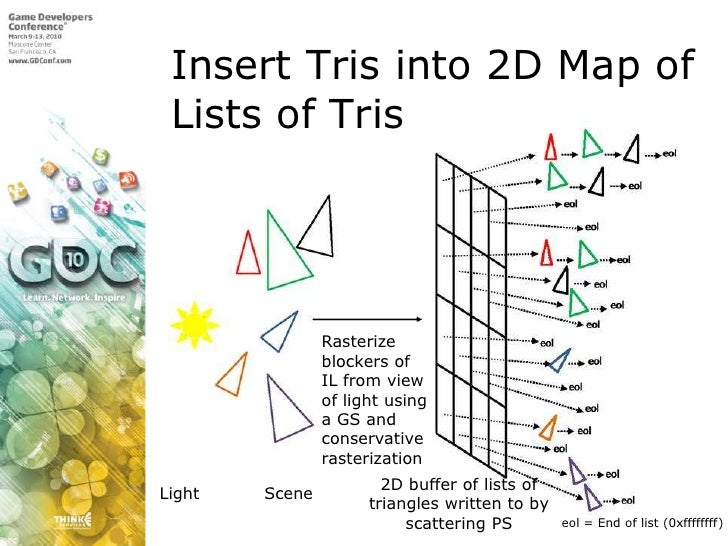

Insert Tris into 2D Map of Lists of Tris<br />Rasterize blockers of IL from view of light <br />Light<br />2D buffer<br />...
Insert Tris into 2D Map of Lists of Tris<br />Rasterize  blockers of IL from view of light using a GS and conservative ras...
Backup Slides PPLL<br />
Linked List Creation (2)<br />For every pixel:<br />Calculate pixel data (color, depth etc.)<br />	Retrieve current pixel ...

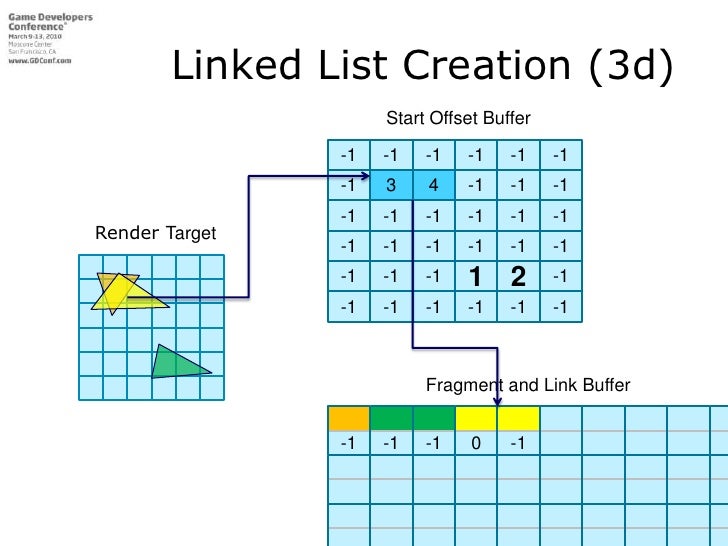

Linked List Creation (3d)<br />Start Offset Buffer<br />-1<br />-1<br />-1<br />-1<br />-1<br />-1<br />-1<br />3<br />4<b...

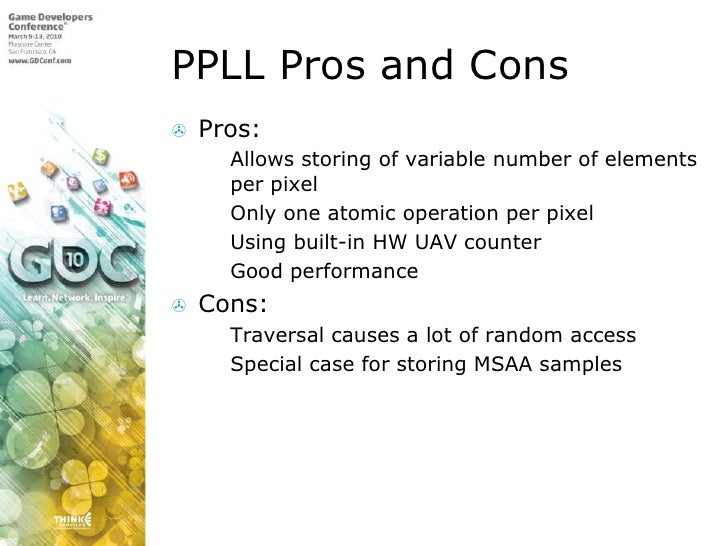

PPLL Pros and Cons<br />Pros:<br />Allows storing of variable number of elements per pixel<br />Only one atomic operation ...
Alternative Technique:Per Pixel Array<br />There is a two pass method that allows the construction of per-pixel arrays<br ...
Rendering SamplesAlternate Method<br />Writes pixels straight into non-MSAA RT<br />Only viable if access to samples is no...

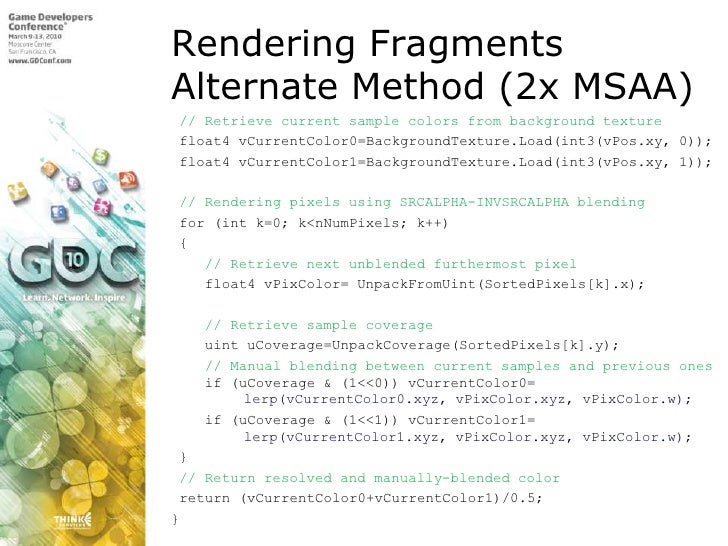

Rendering FragmentsAlternate Method (2x MSAA)<br />// Retrieve current sample colors from background texture<br /> float4 ...
