1.
Natixis Open Day 2018
Ricardo Peres
@rjperes75

2.
Natixis Open Day 2018

3.
About Me
Team Leader at Simplifydigital (Aveiro)
Microsoft MVP
Blogger
Book author

4.
Introduction
NoSQL database for indexing JSON contents
Documents are indexed as they are added (< 1s)
Schema-less (kind of…)
Distributed
High performance
REST semantics (GET, POST, PUT, DELETE)
Based on Lucene
Part of the ELK stack
Open source (comercial license too)

5.
Key Scenarios
Distributed logging
Document indexing
Inexact searches
Custom relevance scoring
Alarms (via plugin)

6.
Concepts: Cluster
A collection of servers (nodes) running
Elasticsearch
Single master
Multicast based discovery (can be explicit)

7.
Concepts: Indexes
A collection of types (deprecated as of v6)
Similar to a database
Will store documents directly from v7

8.

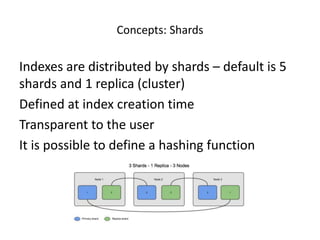

Concepts: Shards
Indexes are distributed by shards – default is 5
shards and 1 replica (cluster)
Defined at index creation time
Transparent to the user
It is possible to define a hashing function

9.
Concepts: Types
Collection of documents
Has a schema (implicit or explicit)
Similar to a table
Deprecated as of v6, will be around until v7

10.
Concepts: Documents
Self-contained data
Exist in a type (or index as of v6)
Have an id – explicitly or automatically set
Have a version
Have a schema
Can have expiration

11.
Concepts: Fields
Documents are structured in fields
Special fields: _id, _uid, _index, _type
_timestamp, _all, _source, _ttl, _meta,
_parent, _routing are optional
A field can be analyzed multiple times with
different settings

12.
Data Types
 text, keyword (full-text
analyzed, keyword not
analyzed)
 long, integer, short, byte,
double, float, half_float,
scaled_float
 date
 boolean
 binary
 integer_range, float_range,
double_range, date_range
 geo_point
 geo_shape
 ip
 completion
 token_count
 percolator
 Array
 object
 nested

13.
Creating a Document
Auto Id
POST blog/_doc
{
"title" : "My Blog",
"url" : "http://my/blog",
"tags" : [ "development" ]
}
Explicit Id
POST blog/_doc/1
{
"title" : "My Blog",
"url" : "http://my/blog",
"tags" : [ " development " ]
}
The result will contain the new document

14.
Updating a Document (1 of 3)
Partial
POST website/blog/1/_update
{
"doc" :
{
"tags" : [ "testing" ],
"views" : 1
}
}
Full
POST website/blog/1/_update
{
"title" : "My Blog",
"url" : "http://my/blog",
"tags" : [ "testing" ]
}
Updating a document increments its version

15.
Updating a Document (2 of 3)
Scripted
POST post/_doc/1/_update
{
"script" : "ctx._source.views
+= params.count",
"params" : {
"count" : 4
}
}
Upsert
POST post/_doc/1/_update
{
"script" : "ctx._source.views +=
1",
"upsert" : {
"views" : 1,
"url": "…"
}
}

16.
Updating a Document (3 of 3)
Update By Query
POST post/_update_by_query
{
"script": "ctx._source.views++",
"query": {
"term": {
"content": "updated"
}
}
}

17.
Deleting a Document / Index
Index
DELETE website
Document By Id
DELETE website/blog/1
Document By Query
POST post/_doc/_delete_by_query
{
"query" : {
"match" : {
"views" : 0
}
}
}

18.
Mappings (1 of 2)
Created at index or type level implicitly (dynamic) or explicitly
Cannot modify, only add
Can enforce schema or not
PUT blog
{
"mappings": {
"_doc": {
" _timestamp": {
"enabled" : true
},
"dynamic" : "strict",
"properties": {
"title": {
"type": "text",
"analyzer": "standard"
}
}
}

19.
Mappings (2 of 2)
A field can be indexed multiple times
PUT post
{
"mappings": {
"_doc": {
"properties": {
"title": {
"type": "text",
"fields": {
"keyword": {
"type": "keyword"
}
}
}
}
}
}
}

20.
Mapping Templates
Automatically apply mappings to new types
PUT website
{
"mappings": {
"post": {
"dynamic_templates": [ {
"timestamp": {
"date_detection": true,
"dynamic_date_formats": [ "yyyy-MM-dd HH:mm", "yyyy-MM-dd" ],
"match": "timestamp",
"match_mapping_type": "date",
"mapping": {
"type": "date",
"format" : "yyyy-MM-dd HH:mm"
}
}
} ]
}
}
}

21.
Query and Filter Context
Queries: scoring of the results
Filters determine what appears in the results
Are cached

22.
Querying
Search API
 Uses the URL
 Starting with <index> and
<type> is optional
<index>/<type>/_search?q=some
thing
<index>/<type1>,<type2>/_searc
h?q=something
_search?q=something
_search?q:field:value
_search?q=+firstname(john
mary)&-surname:smith
Query DSL
 Query and filter context
 simple_query_string,
query_string, match, term,
terms, range, multi_match,
match_phrase, missing,
exists, regexp, fuzzy, prefix,
ids
 bool, dis_max
 more_like_this, script,
template

23.
Pagination, Sorting and Projection
Page size, index: size, from
Ordering: sort
Projections: _source
POST website/post/_search
{
"size" : 10,
"from" : 0,
"sort" : {
"timestamp" : {
"order" : "desc"
}
},
"_source" : [ "title", "_id" ]
}

24.
Script Fields
GET post/_search
{
"_source": "content",
"script_fields": {
"visits_string": {
"script": "doc['views'].value + ' views'"
}
}
}

25.
Percolator (1 of 3)
Search in reverse: first define the query,
then add documents to it
Querying a document gives all percolator
queries that it matches

26.
Percolator (2 of 3)
PUT percolator
{
"mappings": {
"_doc": {
"properties": {
"message": {
"type": "text"
},
"query": {
"type":
"percolator"
}
}
}
}
}
PUT percolator/_doc/1?refresh
{
"query" : {
"match" : {
"message" : "bonsai tree"
}
}
}
PUT percolator/_doc/2?refresh
{
"query" : {
"match" : {
"message" : "orange tree"
}
}
}

27.
Percolator (3 of 3)
GET percolator/_search
{
"query" : {
"percolate" : {
"field" : "query",
"document" : {
"message" : "bonsai tree"
}
}
}
}

28.
Relevance (1 of 5)
Term Frequency/Inverse Document
Frequency/Field Length Norm
Custom scores
A match hit/miss can be explained

29.
Relevance (2 of 5)
Boosting: having this value is better
GET sales/products/_search
{
"query": {
"bool": {
"should": [
{
"term": {
"size.keyword": {
"value": "M",
"boost": 10.0
}
}
},
{
"term": {
"size.keyword": "L"
}

30.
Relevance (3 of 5)
Linear, Gauss, Exp: value X is better, all others decay
GET sales/products/_search
{
"query": {
"function_score": {
"linear": {
"price": {
"origin": 0,
"scale": 1
}
}
}
}
}

31.
Relevance (4 of 5)
Field Value Factor: give boost to a value
GET website/post/_search
{
"query": {
"function_score": {
"field_value_factor": {
"field": "likes",
"factor": 10
}
}
}
}

32.
Relevance (5 of 5)
Score Functions: custom function
GET sales/products/_search
{
"query": {
"function_score": {
"boost": "5",
"functions": [
{
"filter": {
"match": {
"size": "M"
}
},
"weight": 10
},
{
"filter": {
"match": {
"size": "L"
}
},

33.
Index Aliases
Used to refer to one or more indexes, one or more types, possibly with a filter
Useful for "moving indexes" (month, year, country, etc)
One index can be in many aliases
POST _aliases
{
"actions" : [ {
"add" : {
"indices" : [ "social-2015", "social-2016" ],
"alias" : "social-testing",
"filter" : {
"term" : {
"tag" : "testing"
}
}
}
} ]
}

34.
Alias Templates
Creates an alias when a type is created
POST _template/social
{
"order": 0,
"template": "social-*",
"settings": {
"index": {
"refresh_interval": "5s"
}
},
"mappings": {},
"aliases": {
"social": {}
}
}

35.
Bulk Operations
Perform multiple operations (index, update, delete) at once
POST bulk/data/_bulk
{ "index" : { "_id" : "1" } }
{ "field1" : "value1" }
{ "index" : { "_id" : "2" } }
{ "field1" : "value1" }
{ "index" : { "_id" : "3" } }
{ "field1" : "value1" }
{ "update" : { "_id" : "2" } }
{ "doc": { "field2": "value2" } }
{ "delete" : { "_id" : "3" } }

36.
Analytics
Aggregations
Can be nested
Can use scripts
GET sales/products/_search
{
"aggs": {
"all_brands": {
"terms": {
"field": "brand.keyword"
},
"aggs": {
"average_price": {
"terms": {
"field": "price"
}
}
}
}
}

37.
APIs
REST (native)
.NET
JavaScript/Node.js
Python
Java
Groovy
PHP
Perl
Ruby

38.
Kibana
Reporting
Dashboards

39.
Logstash
Collect and transform data
Input – Filters – Outputs
Sources/destinations:
 Elasticsearch
 File
 Syslog
 Windows Eventlog
 Redis
 RabbitMQ
 GitHub
 HTTP
 Beats
 Twitter
 WebSocket
 …

40.
Beats
Data shipping
Shippers:
 Filebeat
 Metricbeat
 Packetbeat
 Winlogbeat
 Auditbeat
 Heartbeat

41.
References
 https://www.elastic.co
 https://www.elastic.co/guide/en/kibana/current/tutorial-
load-dataset.html
 https://www.gitbook.com/book/allen8807/elasticsearch-
definitive-guide-en/details
 https://github.com/elastic/cookbook-elasticsearch
 https://github.com/elastic/elasticsearch-net
 https://github.com/elastic/kibana
 https://github.com/elastic/logstash
 https://github.com/elastic/elasticsearch
 https://github.com/elastic/beats
 http://joelabrahamsson.com/elasticsearch-101

42.
Thank you
Thank you for attending!
@rjperes75
rjperes@hotmail.com
http://weblogs.asp.net/ricardoperes
