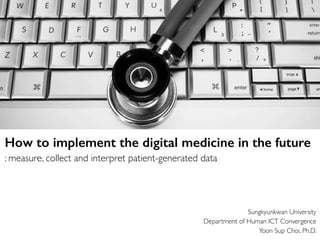

How to Implement the Digital Medicine in the Future

Sungkyunkwan University
Department of Human ICT Convergence
Yoon Sup Choi, Ph.D.
How to implement the digital medicine in the future
: measure, collect and interpret patient-generated data

The Convergence of IT, BT and Medicine

http://rockhealth.com/2015/01/digital-health-funding-tops-4-1b-2014-year-review/

http://rockhealth.com/2015/07/2-1b-digital-health-funding-ﬁrst-half-2015-keeping-pace-2014/

What is most important factor in digital medicine?

“Data! Data! Data!” he cried.“I can’t
make bricks without clay!”
- Sherlock Holmes,“The Adventure of the Copper Beeches”

Three Steps to Implement Digital Medicine
• Step 1. Measure the Data
• Step 2. Collect the Data
• Step 3. Insight from the Data

Smartphone: the origin of healthcare innovation

2013?
The election of Pope Benedict
The Election of Pope Francis

The Election of Pope Francis
The Election of Pope Benedict

CellScope’s iPhone-enabled otoscope

PEEK (portable eye examination kit)
http://www.peekvision.org

SpiroSmart: spirometer using iPhone

BeyondVerbal: Reading emotions from voices

C8 Medisensor: non-invasive blood glucose sensor

Withings Wireless Blood Pressure Monitor

Huinno: Cuff-less Blood Pressure Monitor

n
n-
ng
n
es
h-
n
ne
ne
ct
d
n-
at
s-
or
e,
ts
n
a-
gs
d
ch
Nat Biotech 2015

Results within 6-8 weeksA little spit is all it takes!
DTC Genetic TestingDirect-To-Consumer

120 Disease Risk
21 Drug Response
49 Carrier Status
57Traits
$99

Traits
음주 후 얼굴이 붉어지는가
쓴 맛을 감지할 수 있나
귀지 유형
눈 색깔
곱슬머리 여부
유당 분해 능력
말라리아 저항성
대머리가 될 가능성
근육 퍼포먼스
혈액형
노로바이러스 저항성
HIV 저항성
흡연 중독 가능성

23andMe Customer Growth
http://goldbio.blogspot.kr/2014/12/pg-100.html

Step1. Measure the Data
• With your smartphone
• With wearable devices (connected to smartphone)
• Personal genome analysis
... without even going to the hospital!

Epic MyChart App Epic EHRDatabaseDexcom App
Withings App
Dexcom CGM
Nike+
Patients Device/Apps
HealthKit EHR Hospital
Whitings
+
• Data stored in DB on the iPhone (, not mirroring to the cloud)
• Consumer controls what data goes in/out, privacy level
• HealthKit connects/direct devices, store data based on privacy rules
Apple Watch
iPhone

Without cloud computing,
we cannot collect the real-time big data from the patients

Practice Fusion, an EMR based on the cloud

How to Analyze and Interpret the Big Data?

and/or
Two ways to get insights from the big data

Hospitals in the future: Data Analysis Center

Doctors in the future: Data Scientists

No choice but to bring AI into the medicine

“AliveCor has received an additional FDA
510(k) clearance, this time for an algorithm
that allows its smartphone ECG to detect
atrial ﬁbrillation with high accuracy.”
“the algorithm has a 100 percent sensitivity
(it never returns a false negative) and a 97
percent speciﬁcity (it returns false positives
about 3 percent of the time). For obvious
reasons, the algorithm was designed to err
on the side of false positives”

DeepFace: Closing the Gap to Human-Level
Performance in FaceVerification
Taigman,Y. et al. (2014). DeepFace: Closing the Gap to Human-Level Performance in FaceVerification, CVPR’14.
Figure 2. Outline of the DeepFace architecture. A front-end of a single convolution-pooling-convolution filtering on the rectified input, followed by three
locally-connected layers and two fully-connected layers. Colors illustrate feature maps produced at each layer. The net includes more than 120 million
parameters, where more than 95% come from the local and fully connected layers.
very few parameters. These layers merely expand the input
into a set of simple local features.
The subsequent layers (L4, L5 and L6) are instead lo-
cally connected [13, 16], like a convolutional layer they ap-
ply a filter bank, but every location in the feature map learns
a different set of filters. Since different regions of an aligned
image have different local statistics, the spatial stationarity
The goal of training is to maximize the probability of
the correct class (face id). We achieve this by minimiz-
ing the cross-entropy loss for each training sample. If k
is the index of the true label for a given input, the loss is:
L = log pk. The loss is minimized over the parameters
by computing the gradient of L w.r.t. the parameters and
by updating the parameters using stochastic gradient de-
Human: 95% vs. DeepFace in Facebook: 97.35%
Recognition Accuracy for Labeled Faces in the Wild (LFW) dataset (13,233 images, 5,749 people)

FaceNet:A Unified Embedding for Face
Recognition and Clustering
Schroff, F. et al. (2015). FaceNet:A Unified Embedding for Face Recognition and Clustering
Human: 95% vs. FaceNet of Google: 99.63%
Recognition Accuracy for Labeled Faces in the Wild (LFW) dataset (13,233 images, 5,749 people)
False accept
False reject
s. This shows all pairs of images that were
on LFW. Only eight of the 13 errors shown
the other four are mislabeled in LFW.
on Youtube Faces DB
ge similarity of all pairs of the first one
our face detector detects in each video.
False accept
False reject
Figure 6. LFW errors. This shows all pairs of images that were
incorrectly classified on LFW. Only eight of the 13 errors shown
here are actual errors the other four are mislabeled in LFW.
5.7. Performance on Youtube Faces DB
We use the average similarity of all pairs of the first one
hundred frames that our face detector detects in each video.
This gives us a classification accuracy of 95.12%±0.39.
Using the first one thousand frames results in 95.18%.
Compared to [17] 91.4% who also evaluate one hundred
frames per video we reduce the error rate by almost half.
DeepId2+ [15] achieved 93.2% and our method reduces this
error by 30%, comparable to our improvement on LFW.
5.8. Face Clustering
Our compact embedding lends itself to be used in order
to cluster a users personal photos into groups of people with
the same identity. The constraints in assignment imposed
by clustering faces, compared to the pure verification task,
lead to truly amazing results. Figure 7 shows one cluster in
a users personal photo collection, generated using agglom-
erative clustering. It is a clear showcase of the incredible
invariance to occlusion, lighting, pose and even age.
Figure 7. Face Clustering. Shown is an exemplar cluster for one
user. All these images in the users personal photo collection were
clustered together.
6. Summary
We provide a method to directly learn an embedding into
an Euclidean space for face verification. This sets it apart
from other methods [15, 17] who use the CNN bottleneck
layer, or require additional post-processing such as concate-
nation of multiple models and PCA, as well as SVM clas-
sification. Our end-to-end training both simplifies the setup
and shows that directly optimizing a loss relevant to the task
at hand improves performance.
Another strength of our model is that it only requires
False accept
False reject
Figure 6. LFW errors. This shows all pairs of images that were
incorrectly classified on LFW. Only eight of the 13 errors shown
here are actual errors the other four are mislabeled in LFW.
5.7. Performance on Youtube Faces DB
We use the average similarity of all pairs of the first one
hundred frames that our face detector detects in each video.
This gives us a classification accuracy of 95.12%±0.39.
Using the first one thousand frames results in 95.18%.
Compared to [17] 91.4% who also evaluate one hundred
frames per video we reduce the error rate by almost half.
DeepId2+ [15] achieved 93.2% and our method reduces this
error by 30%, comparable to our improvement on LFW.
5.8. Face Clustering
Our compact embedding lends itself to be used in order
to cluster a users personal photos into groups of people with
the same identity. The constraints in assignment imposed
by clustering faces, compared to the pure verification task,
Figure 7. Face Clustering. Shown is an exemplar cluster for one
user. All these images in the users personal photo collection were
clustered together.
6. Summary
We provide a method to directly learn an embedding into
an Euclidean space for face verification. This sets it apart
from other methods [15, 17] who use the CNN bottleneck
layer, or require additional post-processing such as concate-
nation of multiple models and PCA, as well as SVM clas-

Constructing higher-level
contextual/relational features:
Relationships between epithelial
nuclear neighbors
Relationships between morphologically
regular and irregular nuclei
and stromal objects
nuclei and cytoplasm
Characteristics of
stromal nuclei
and stromal matrix
Characteristics of
epithelial nuclei and
epithelial cytoplasm
Building an epithelial/stromal classifier:
Epithelial vs.stroma
classifier
classifier
B
Basic image processing and feature construction:
H&E image Image broken into superpixels Nuclei identified within
each superpixel
A
Relationships of contiguous epithelial
regions with underlying nuclear objects
Learning an image-based model to predict survival
Processed images from patients Processed images from patients
C
D
onNovember17,2011stm.sciencemag.orgwnloadedfrom
TMAs contain 0.6-mm-diameter cores (median
of two cores per case) that represent only a small
sample of the full tumor. We acquired data from
two separate and independent cohorts: Nether-
lands Cancer Institute (NKI; 248 patients) and
Vancouver General Hospital (VGH; 328 patients).
Unlike previous work in cancer morphom-
etry (18–21), our image analysis pipeline was
not limited to a predefined set of morphometric
features selected by pathologists. Rather, C-Path
measures an extensive, quantitative feature set
from the breast cancer epithelium and the stro-
ma (Fig. 1). Our image processing system first
performed an automated, hierarchical scene seg-
mentation that generated thousands of measure-
ments, including both standard morphometric
descriptors of image objects and higher-level
contextual, relational, and global image features.
The pipeline consisted of three stages (Fig. 1, A
to C, and tables S8 and S9). First, we used a set of
processing steps to separate the tissue from the
background, partition the image into small regions
of coherent appearance known as superpixels,
find nuclei within the superpixels, and construct
Constructing higher-level
contextual/relational features:
nuclear neighbors
Relationships between morphologically
regular and irregular nuclei
and stromal objects
nuclei and cytoplasm
Characteristics of
stromal nuclei
and stromal matrix
Characteristics of
epithelial nuclei and
epithelial cytoplasm
classifier
classifier
Relationships of contiguous epithelial
regions with underlying nuclear objects
Learning an image-based model to predict survival
Processed images from patients
alive at 5 years
Processed images from patients
deceased at 5 years
L1-regularized
logisticregression
modelbuilding
5YS predictive model
Unlabeled images
Time
P(survival)
C
D
Identification of novel prognostically
important morphologic features
basic cellular morphologic properties (epithelial reg-
ular nuclei = red; epithelial atypical nuclei = pale blue;
epithelial cytoplasm = purple; stromal matrix = green;
stromal round nuclei = dark green; stromal spindled
nuclei = teal blue; unclassified regions = dark gray;
spindled nuclei in unclassified regions = yellow; round
nuclei in unclassified regions = gray; background =
white). (Left panel) After the classification of each
image object, a rich feature set is constructed. (D)
Learning an image-based model to predict survival.
Processed images from patients alive at 5 years after
surgery and from patients deceased at 5 years after
surgery were used to construct an image-based prog-
nostic model. After construction of the model, it was
applied to a test set of breast cancer images (not
used in model building) to classify patients as high
or low risk of death by 5 years.
www.ScienceTranslationalMedicine.org 9 November 2011 Vol 3 Issue 108 108ra113 2
onNovember17,2011stm.sciencemag.orgDownloadedfrom
Digital Pathologist
Sci Transl Med. 2011 Nov 9;3(108):108ra113

Digital Pathologist
Sci Transl Med. 2011 Nov 9;3(108):108ra113
Top stromal features associated with survival.
primarily characterizing epithelial nuclear characteristics, such as
size, color, and texture (21, 36). In contrast, after initial filtering of im-
ages to ensure high-quality TMA images and training of the C-Path
models using expert-derived image annotations (epithelium and
stroma labels to build the epithelial-stromal classifier and survival
time and survival status to build the prognostic model), our image
analysis system is automated with no manual steps, which greatly in-
creases its scalability. Additionally, in contrast to previous approaches,
our system measures thousands of morphologic descriptors of diverse
identification of prognostic features whose significance was not pre-
viously recognized.
Using our system, we built an image-based prognostic model on
the NKI data set and showed that in this patient cohort the model
was a strong predictor of survival and provided significant additional
prognostic information to clinical, molecular, and pathological prog-
nostic factors in a multivariate model. We also demonstrated that the
image-based prognostic model, built using the NKI data set, is a strong
prognostic factor on another, independent data set with very different
SD of the ratio of the pixel intensity SD to the mean intensity
for pixels within a ring of the center of epithelial nuclei
A
The sum of the number of unclassified objects
SD of the maximum blue pixel value for atypical epithelial nuclei
Maximum distance between atypical epithelial nuclei
B
C
D
Maximum value of the minimum green pixel intensity value in
epithelial contiguous regions
Minimum elliptic fit of epithelial contiguous regions
SD of distance between epithelial cytoplasmic and nuclear objects
Average border between epithelial cytoplasmic objects
E
F
G
H
Fig. 5. Top epithelial features. The eight panels in the figure (A to H) each
shows one of the top-ranking epithelial features from the bootstrap anal-
ysis. Left panels, improved prognosis; right panels, worse prognosis. (A) SD
of the (SD of intensity/mean intensity) for pixels within a ring of the center
of epithelial nuclei. Left, relatively consistent nuclear intensity pattern (low
score); right, great nuclear intensity diversity (high score). (B) Sum of the
number of unclassified objects. Red, epithelial regions; green, stromal re-
gions; no overlaid color, unclassified region. Left, few unclassified objects
(low score); right, higher number of unclassified objects (high score). (C) SD
of the maximum blue pixel value for atypical epithelial nuclei. Left, high
score; right, low score. (D) Maximum distance between atypical epithe-
lial nuclei. Left, high score; right, low score. (Insets) Red, atypical epithelial
nuclei; black, typical epithelial nuclei. (E) Minimum elliptic fit of epithelial
contiguous regions. Left, high score; right, low score. (F) SD of distance
between epithelial cytoplasmic and nuclear objects. Left, high score; right,
low score. (G) Average border between epithelial cytoplasmic objects. Left,
high score; right, low score. (H) Maximum value of the minimum green
pixel intensity value in epithelial contiguous regions. Left, low score indi-
cating black pixels within epithelial region; right, higher score indicating
presence of epithelial regions lacking black pixels.
and stromal matrix throughout the image, with thin cords of epithe-
lial cells infiltrating through stroma across the image, so that each
stromal matrix region borders a relatively constant proportion of ep-
ithelial and stromal regions. The stromal feature with the second
largest coefficient (Fig. 4B) was the sum of the minimum green in-
tensity value of stromal-contiguous regions. This feature received a
value of zero when stromal regions contained dark pixels (such as
inflammatory nuclei). The feature received a positive value when
stromal objects were devoid of dark pixels. This feature provided in-
formation about the relationship between stromal cellular composi-
tion and prognosis and suggested that the presence of inflammatory
cells in the stroma is associated with poor prognosis, a finding con-
sistent with previous observations (32). The third most significant
stromal feature (Fig. 4C) was a measure of the relative border between
spindled stromal nuclei to round stromal nuclei, with an increased rel-
ative border of spindled stromal nuclei to round stromal nuclei asso-
ciated with worse overall survival. Although the biological underpinning
of this morphologic feature is currently not known, this analysis sug-
gested that spatial relationships between different populations of stro-
mal cell types are associated with breast cancer progression.
Reproducibility of C-Path 5YS model predictions on
samples with multiple TMA cores
For the C-Path 5YS model (which was trained on the full NKI data
set), we assessed the intrapatient agreement of model predictions when
predictions were made separately on each image contributed by pa-
tients in the VGH data set. For the 190 VGH patients who contributed
two images with complete image data, the binary predictions (high
or low risk) on the individual images agreed with each other for 69%
(131 of 190) of the cases and agreed with the prediction on the aver-
aged data for 84% (319 of 380) of the images. Using the continuous
prediction score (which ranged from 0 to 100), the median of the ab-
solute difference in prediction score among the patients with replicate
images was 5%, and the Spearman correlation among replicates was
0.27 (P = 0.0002) (fig. S3). This degree of intrapatient agreement is
only moderate, and these findings suggest significant intrapatient tumor
heterogeneity, which is a cardinal feature of breast carcinomas (33–35).
Qualitative visual inspection of images receiving discordant scores
suggested that intrapatient variability in both the epithelial and the
stromal components is likely to contribute to discordant scores for
the individual images. These differences appeared to relate both to
the proportions of the epithelium and stroma and to the appearance
of the epithelium and stroma. Last, we sought to analyze whether sur-
vival predictions were more accurate on the VGH cases that contributed
multiple cores compared to the cases that contributed only a single
core. This analysis showed that the C-Path 5YS model showed signif-
icantly improved prognostic prediction accuracy on the VGH cases
for which we had multiple images compared to the cases that con-
tributed only a single image (Fig. 7). Together, these findings show
a significant degree of intrapatient variability and indicate that increased
tumor sampling is associated with improved model performance.
DISCUSSION
Heat map of stromal matrix
objects mean abs.diff
to neighbors
H&E image separated
into epithelial and
stromal objects
A
B
C
Worse
prognosis
Improved
prognosis
Improved
prognosis
Improved
prognosis
Worse
prognosis
Worse
prognosis
Fig. 4. Top stromal features associated with survival. (A) Variability in ab-
solute difference in intensity between stromal matrix regions and neigh-
bors. Top panel, high score (24.1); bottom panel, low score (10.5). (Insets)
Top panel, high score; bottom panel; low score. Right panels, stromal matrix
objects colored blue (low), green (medium), or white (high) according to
each object’s absolute difference in intensity to neighbors. (B) Presence
R E S E A R C H A R T I C L E
Top epithelial features.The eight panels in the ﬁgure (A to H) each
shows one of the top-ranking epithelial features from the bootstrap
analysis. Left panels, improved prognosis; right panels, worse prognosis.

+
Integration of Health Data and Genomic Data

• Apple HealthKit
• Fitbit Data
• Personal Genome Data
• GPS
+
Personalized
Healthcare
Advices

Feedback/Questions
• Email: yoonsup.choi@gmail.com
• Blog: http://www.yoonsupchoi.com
• Facebook: Yoon Sup Choi

How to Implement the Digital Medicine in the Future

How to Implement the Digital Medicine in the Future
