5. TS W (WALL)
Descriptif du profilé TS W (WALL)
TS W (WALL) profile description
TS W est le profilé le plus petit de la gamme TS, idéal pour les TS W is the smallest TS range profile, usually used for indoors
applications intérieures. Simple d’utilisation, il se fixe directe- applications. Easy to use, it can be directly fixed on the wall or
ment sur un mur ou toute autre structure existante et permet de on an existing structure for small and medium size frames.
réaliser des cadres de petits et moyens formats.
Des conseils d'entoilage et d'entretien sont disponibles sur notre site Tension system and maintenance advices are available on our website
Internet www.learn-pts.com rubrique Techniques. www.learn-pts.com in Methods feature.
Cadre mural fin
Thin wall frame
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com

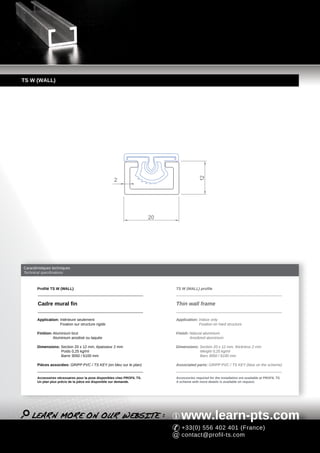

6. TS W (WALL)
12
2
20
Caractéristiques techniques
Technical specifications
Profilé TS W (WALL) TS W (WALL) profile
Cadre mural fin Thin wall frame
Application: Intérieure seulement Application: Indoor only
Fixation sur structure rigide Fixation on hard structure
Finition: Aluminium brut Finish: Natural aluminium
Aluminium anodisé ou laquée Anodized aluminium
Dimensions: Section 20 x 12 mm, épaisseur 2 mm Dimensions: Section 20 x 12 mm, thickness 2 mm
Poids 0,25 kg/ml Weight 0,25 kg/ml
Barre 3050 / 6100 mm Bars 3050 / 6100 mm
Pièces associées: GRIPP PVC / TS KEY (en bleu sur le plan) Associated parts: GRIPP PVC / TS KEY (blue on the scheme)
Accessoires nécessaires pour la pose disponibles chez PROFIL TS. Accessories required for the installation are available at PROFIL TS.
Un plan plus précis de la pièce est disponible sur demande. A scheme with more details is available on request.
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com
7. TS WO (WALL OUTDOOR)
Descriptif du profilé TS WO (WALL OUTDOOR)
TS WO (WALL OUTDOOR) profile description
TS WO est le profilé le plus vendu de la gamme SIGN. Stable et TS WO is the best-seller profile in the SIGN range. A strong and
résistant, il garantit une excellente tenue aux efforts mécaniques steady system which garantees an excellent posture to mechanic
durant les cycles de vie de la toile tendue en grand format. Il effects within the life circle of big format banner. It allows to
permet de tendre des surfaces importantes tout en offrant de stretch large formats while offering a lot of possibilities with its
nombreuses possibilités avec ses gorges multiples : des cadres multiple channels : double sided frame for example. With a
recto-verso par exemple. Revêtu de toile fixée au dos, il devient banner stretched on the back, it becomes an excellent suspen-
un excellent support à suspendre pour l'agencement intérieur, ded structure for the interior, because there are no visible
car il ne fait ni apparaître la gorge technique, ni la fixation située technical channels, nor visible fixation on the back.
au verso.
Des conseils d'entoilage et d'entretien sont disponibles sur notre site Tension system and maintenance advices are available on our website
Internet www.learn-pts.com rubrique Techniques. www.learn-pts.com in Methods feature.
Cadre sur bardage Cadre auto-portant
Frame on a boarding Self-supporting frame
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com

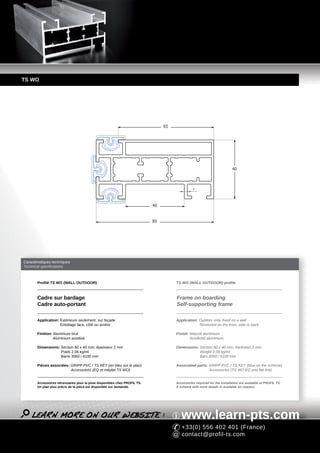

8. TS WO
65
40
2
40
80
Caractéristiques techniques
Technical specifications
Profilé TS WO (WALL OUTDOOR) TS WO (WALL OUTDOOR) profile
Cadre sur bardage Frame on boarding
Cadre auto-portant Self-supporting frame
Application: Extérieure seulement, sur façade Application: Outdoor only, fixed on a wall
Entoilage face, côté ou arrière Tensioned on the front, side or back
Finition: Aluminium brut Finish: Natural aluminium
Aluminium anodisé Anodized aluminium
Dimensions: Section 80 x 40 mm, épaisseur 2 mm Dimensions: Section 80 x 40 mm, thickness 2 mm
Poids 2.06 kg/ml Weight 2.06 kg/ml
Barre 3050 / 6100 mm Bars 3050 / 6100 mm
Pièces associées: GRIPP PVC / TS KEY (en bleu sur le plan) Associated parts: GRIPP PVC / TS KEY (blue on the scheme)
Accessoires (EQ et méplat TS WO) Accessories (TS WO EQ and flat link)
Accessoires nécessaires pour la pose disponibles chez PROFIL TS. Accessories required for the installation are available at PROFIL TS.
Un plan plus précis de la pièce est disponible sur demande. A scheme with more details is available on request.
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com

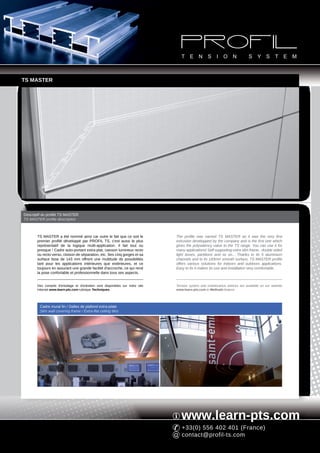

9. TS MASTER
Descriptif du profilé TS MASTER
TS MASTER profile description
TS MASTER a été nommé ainsi car outre le fait que ce soit le The profile was named TS MASTER as it was the very first
premier profilé développé par PROFIL TS, c'est aussi le plus extrusion developped by the company and is the first one which
représentatif de la logique multi-application. Il fait tout ou gives the polyvalency value to the TS range. You can use it for
presque ! Cadre auto-portant extra-plat, caisson lumineux recto many applications! Self supporting extra slim frame, double sided
ou recto-verso, cloison de séparation, etc. Ses cinq gorges et sa light boxes, partitions and so on... Thanks to its 5 aluminium
surface lisse de 143 mm offrent une multitude de possibilités channels and to its 143mm smooth surface, TS MASTER profile
tant pour les applications intérieures que extérieures, et ce offers various solutions for indoors and outdoors applications.
toujours en assurant une grande facilité d'accroche, ce qui rend Easy to fix it makes its use and installation very comfortable.
la pose confortable et professionnelle dans tous ses aspects.
Des conseils d'entoilage et d'entretien sont disponibles sur notre site Tension system and maintenance advices are available on our website
Internet www.learn-pts.com rubrique Techniques. www.learn-pts.com in Methods feature.
Cadre mural fin / Dalles de plafond extra-plate
Slim wall covering frame / Extra-flat ceiling tiles
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com

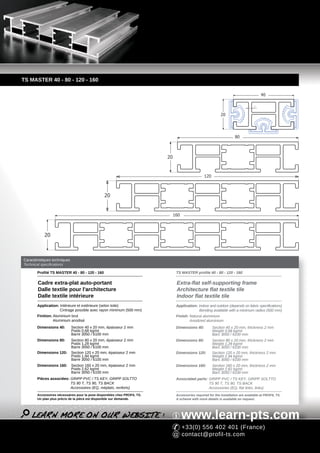

10. TS MASTER 40 - 80 - 120 - 160
40
2
20
80
20
120
20
160
20
Caractéristiques techniques
Technical specifications
Profilé TS MASTER 40 - 80 - 120 - 160 TS MASTER profile 40 - 80 - 120 - 160
Cadre extra-plat auto-portant Extra-flat self-supporting frame
Dalle textile pour l'architecture Architecture flat textile tile
Dalle textile intérieure Indoor flat textile tile
Application: Intérieure et extérieure (selon toile) Application: Indoor and outdoor (depends on fabric specifications)
Cintrage possible avec rayon minimum (500 mm) Bending available with a minimum radius (500 mm)
Finition: Aluminium brut Finish: Natural aluminium
Aluminium anodisé Anodized aluminium
Dimensions 40: Section 40 x 20 mm, épaisseur 2 mm Dimensions 40: Section 40 x 20 mm, thickness 2 mm
Poids 0,68 kg/ml Weight 0,68 kg/ml
Barre 3050 / 6100 mm Bars 3050 / 6100 mm
Dimensions 80: Section 80 x 20 mm, épaisseur 2 mm Dimensions 80: Section 80 x 20 mm, thickness 2 mm
Poids 1,28 kg/ml Weight 1,28 kg/ml
Barre 3050 / 6100 mm Bars 3050 / 6100 mm
Dimensions 120: Section 120 x 20 mm, épaisseur 2 mm Dimensions 120: Section 120 x 20 mm, thickness 2 mm
Poids 1,94 kg/ml Weight 1,94 kg/ml
Barre 3050 / 6100 mm Bars 3050 / 6100 mm
Dimensions 160: Section 160 x 20 mm, épaisseur 2 mm Dimensions 160: Section 160 x 20 mm, thickness 2 mm
Poids 2,62 kg/ml Weight 2,62 kg/ml
Barre 3050 / 6100 mm Bars 3050 / 6100 mm
Pièces associées: GRIPP PVC / TS KEY, GRIPP SOLTTO Associated parts: GRIPP PVC / TS KEY, GRIPP SOLTTO
TS 90 T, TS 90, TS BACK TS 90 T, TS 90, TS BACK
Accessoires (EQ, méplats, renforts) Accessories (EQ, flat links, links)
Accessoires nécessaires pour la pose disponibles chez PROFIL TS. Accessories required for the installation are available at PROFIL TS.
Un plan plus précis de la pièce est disponible sur demande. A scheme with more details is available on request.
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com

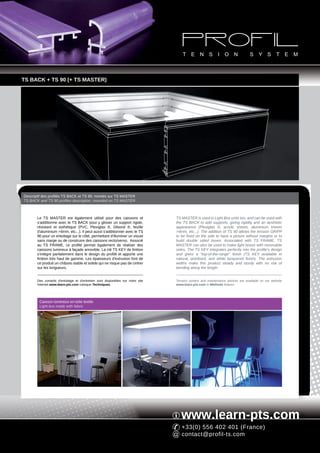

11. TS BACK + TS 90 (+ TS MASTER)
Descriptif des profilés TS BACK et TS 90, montés sur TS MASTER
TS BACK and TS 90 profiles description, mounted on TS MASTER
Le TS MASTER est également utilisé pour des caissons et TS MASTER is used in Light Box applications, adding TS BACK
s'additionne avec le TS BACK pour y glisser un support rigide, profile to insert back sheet of the lightbox, giving rigidity and nice
résistant et esthétique (PVC, Plexiglas ®, Dibond ®, feuille aesthetic appearance (Plexiglas ®, acrylic sheets, aluminium
d'aluminium >4mm, etc...). Il peut aussi s'additionner avec le TS sheets >4mm, etc...). The addition of TS 90 allows the tension
90 pour un entoilage sur le côté, permettant d'illuminer un visuel GRIPP to be fixed on the side to have a picture without margins or
sans marge ou de construire des caissons recto/verso. Associé to build double sided boxes. Associated with TS FRAME, TS
au TS FRAME, ce profilé permet également de réaliser des MASTER can also be used to make light-boxes with removable
caissons lumineux à façade amovible. La clé TS KEY de finition faces. The TS KEY integrates perfectly into the profile's design
s'intègre parfaitement dans le design du profilé et apporte une and gives a "top-of-the-range" finish (TS KEY available in natural,
finition très haut de gamme. anodised, and white lacquered finish).
Des conseils d'entoilage et d'entretien sont disponibles sur notre site Tension system and maintenance advices are available on our website
Internet www.learn-pts.com rubrique Techniques. www.learn-pts.com in Methods feature.
Caisson lumineux simple face (auto-portant) Caisson double face Caisson à face amovible
Lightbox with single side (self-supporting) Double side lightbox Box with removable frame
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com

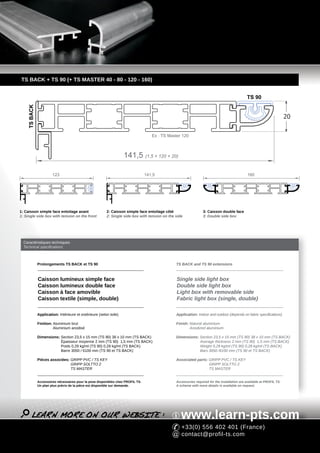

12. TS BACK + TS 90 (+ TS MASTER 40 - 80 - 120 - 160)
TS 90
TS BACK
20
Ex : TS Master 120
141,5 (1,5 + 120 + 20)
123 141,5 160
1: Caisson simple face entoilage avant 2: Caisson simple face entoilage côté 3: Caisson double face
1: Single side box with tension on the front 2: Single side box with tension on the side 3: Double side box
Caractéristiques techniques
Technical specifications
Prolongements TS BACK et TS 90 TS BACK and TS 90 extensions
Caisson lumineux simple face Single side light box
Caisson lumineux double face Double side light box
Caisson à face amovible Light box with removable side
Caisson textile (simple, double) Fabric light box (single, double)
Application: Intérieure et extérieure (selon toile) Application: Indoor and outdoor (depends on fabric specifications)
Finition: Aluminium brut Finish: Natural aluminium
Aluminium anodisé Anodized aluminium
Dimensions: Section 23,5 x 15 mm (TS 90) 38 x 10 mm (TS BACK) Dimensions: Section 23,5 x 15 mm (TS 90) 38 x 10 mm (TS BACK)
Épaisseur moyenne 2 mm (TS 90) 1,5 mm (TS BACK) Average thickness 2 mm (TS 90) 1,5 mm (TS BACK)
Poids 0,29 kg/ml (TS 90) 0,28 kg/ml (TS BACK) Weight 0,29 kg/ml (TS 90) 0,28 kg/ml (TS BACK)
Barre 3050 / 6100 mm (TS 90 et TS BACK) Bars 3050 /6100 mm (TS 90 et TS BACK)
Pièces associées: GRIPP PVC / TS KEY Associated parts: GRIPP PVC / TS KEY
GRIPP SOLTTO 2 GRIPP SOLTTO 2
TS MASTER TS MASTER
Accessoires nécessaires pour la pose disponibles chez PROFIL TS. Accessories required for the installation are available at PROFIL TS.
Un plan plus précis de la pièce est disponible sur demande. A scheme with more details is available on request.
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com

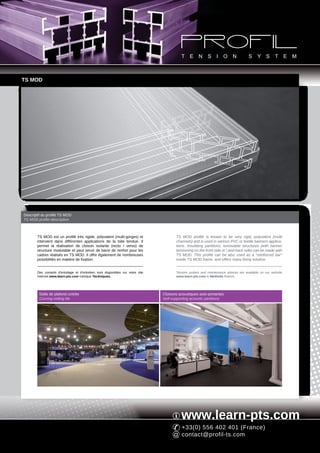

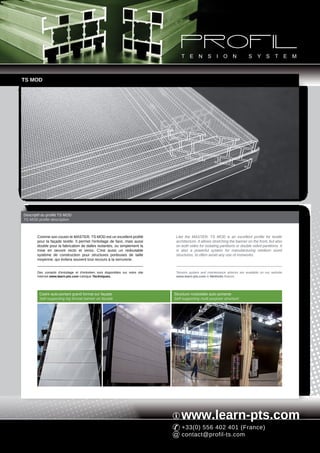

13. TS MOD
Descriptif du profilé TS MOD
TS MOD profile description

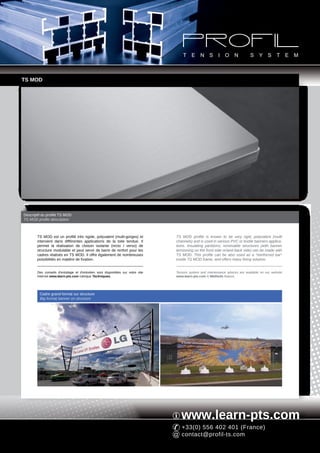

TS MOD est un profilé très rigide, polyvalent (multi-gorges) et TS MOD profile is known to be very rigid, polyvalent (multi
intervient dans différentes applications de la toile tendue. Il channels) and is used in various PVC or textile banners applica-
permet la réalisation de cloison isolante (recto / verso) de tions. Insulating partitions, removable structures (with banner
structure modulable et peut servir de barre de renfort pour les tensioning on the front side or/and back side) can be made with
cadres réalisés en TS MOD. Il offre également de nombreuses TS MOD. This profile can be also used as a "reinforced bar"
possibilités en matière de fixation. inside TS MOD frame, and offers many fixing solution.
Des conseils d'entoilage et d'entretien sont disponibles sur notre site Tension system and maintenance advices are available on our website
Internet www.learn-pts.com rubrique Techniques. www.learn-pts.com in Methods feature.
Cadre grand format sur structure
Big format banner on structure
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com

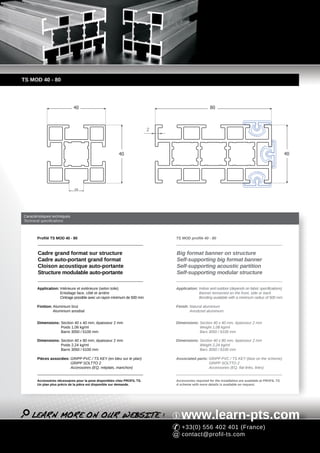

14. TS MOD 40 - 80
40 80
2
40 40
10
Caractéristiques techniques
Technical specifications
Profilé TS MOD 40 - 80 TS MOD profile 40 - 80
Cadre grand format sur structure Big format banner on structure
Cadre auto-portant grand format Self-supporting big format banner
Cloison acoustique auto-portante Self-supporting acoustic partition
Structure modulable auto-portante Self-supporting modular structure
Application: Intérieure et extérieure (selon toile) Application: Indoor and outdoor (depends on fabric specifications)
Entoilage face, côté et arrière Banner tensioned on the front, side or back
Cintrage possible avec un rayon minimum de 500 mm Bending available with a minimum radius of 500 mm
Finition: Aluminium brut Finish: Natural aluminium
Aluminium anodisé Anodized aluminium
Dimensions: Section 40 x 40 mm, épaisseur 2 mm Dimensions: Section 40 x 40 mm, épaisseur 2 mm
Poids 1,08 kg/ml Weight 1,08 kg/ml
Barre 3050 / 6100 mm Bars 3050 / 6100 mm
Dimensions: Section 40 x 80 mm, épaisseur 2 mm Dimensions: Section 40 x 80 mm, épaisseur 2 mm
Poids 2,24 kg/ml Weight 2,24 kg/ml
Barre 3050 / 6100 mm Bars 3050 / 6100 mm
Pièces associées: GRIPP PVC / TS KEY (en bleu sur le plan) Associated parts: GRIPP PVC / TS KEY (blue on the scheme)
GRIPP SOLTTO 2 GRIPP SOLTTO 2
Accessoires (EQ, méplats, manchon) Accessories (EQ, flat links, links)
Accessoires nécessaires pour la pose disponibles chez PROFIL TS. Accessories required for the installation are available at PROFIL TS.
Un plan plus précis de la pièce est disponible sur demande. A scheme with more details is available on request.
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com

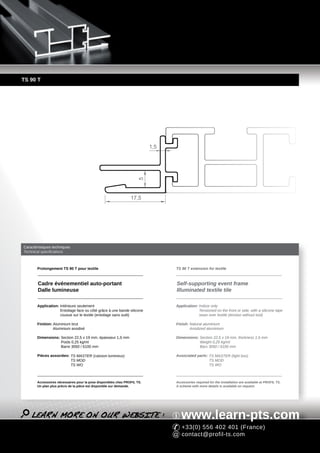

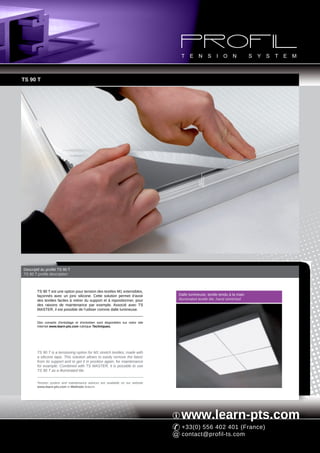

15. TS 90 T

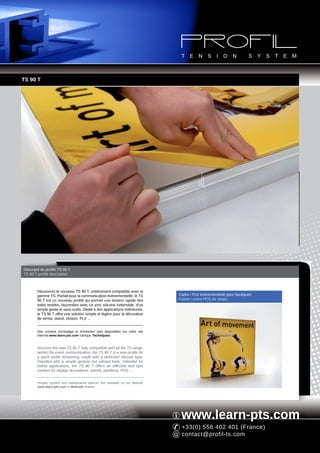

Descriptif du profilé TS 90 T
TS 90 T profile description
Découvrez le nouveau TS 90 T, entièrement compatible avec la
gamme TS. Parfait pour la communication événementielle, le TS Cadre / PLV événementielle pour boutiques
90 T est un nouveau profilé qui permet une tension rapide des Frame / event POS for shops
toiles textiles, façonnées avec un jonc silicone extensible, d'un
simple geste et sans outils. Dédié à des applications intérieures,
le TS 90 T offre une solution simple et légère pour la décoration
de vitrine, stand, cloison, PLV ...
Des conseils d'entoilage et d'entretien sont disponibles sur notre site
Internet www.learn-pts.com rubrique Techniques.
Discover the new TS 90 T, fully compatible with all the TS range.
perfect for event communication, the TS 90 T is a new profile for
a quick textile tensioning, made with a stretched silicone tape,
mounted with a simple gesture but without tools. Intended for
indoor applications, the TS 90 T offers an effective and light
solution for display decorations, stands, partitions, POS ...
Tension system and maintenance advices are available on our website
www.learn-pts.com in Methods feature.
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com
16. TS 90 T
1,5
5
17,5
Caractéristiques techniques
Technical specifications
Prolongement TS 90 T pour textile TS 90 T extension for textile
Cadre événementiel auto-portant Self-supporting event frame
Dalle lumineuse Illuminated textile tile
Application: Intérieure seulement Application: Indoor only
Entoilage face ou côté grâce à une bande silicone Tensioned on the front or side, with a silicone tape
cousue sur le textile (entoilage sans outil) sewn over textile (tension without tool)
Finition: Aluminium brut Finish: Natural aluminium
Aluminium anodisé Anodized aluminium
Dimensions: Section 22,5 x 19 mm, épaisseur 1,5 mm Dimensions: Section 22,5 x 19 mm, thickness 1,5 mm
Poids 0,25 kg/ml Weight 0,25 kg/ml
Barre 3050 / 6100 mm Bars 3050 / 6100 mm
Pièces associées: TS MASTER (caisson lumineux) Associated parts: TS MASTER (light box)
TS MOD TS MOD
TS WO TS WO
Accessoires nécessaires pour la pose disponibles chez PROFIL TS. Accessories required for the installation are available at PROFIL TS.
Un plan plus précis de la pièce est disponible sur demande. A scheme with more details is available on request.
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com

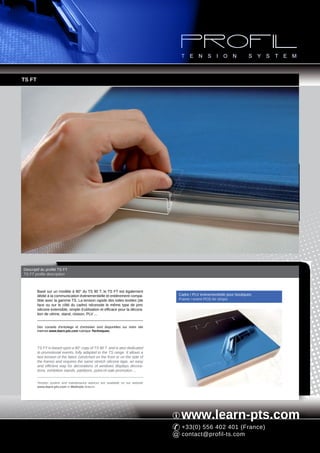

17. TS FT
Descriptif du profilé TS FT
TS FT profile description
Basé sur un modèle à 90° du TS 90 T, le TS FT est également
dédié à la communication événementielle et entièrement compa- Cadre / PLV événementielle pour boutiques
tible avec la gamme TS. La tension rapide des toiles textiles (de Frame / event POS for shops
face ou sur le côté du cadre) nécessite le même type de jonc
silicone extensible, simple d'utilisation et efficace pour la décora-
tion de vitrine, stand, cloison, PLV ...
Des conseils d'entoilage et d'entretien sont disponibles sur notre site
Internet www.learn-pts.com rubrique Techniques.
TS FT is based upon a 90° copy of TS 90 T and is also dedicated
to promotional events, fully adapted to the TS range. It allows a
fast tension of the fabric (stretched on the front or on the side of
the frame) and requires the same stretch silicone tape, an easy
and efficient way for decorations of windows displays decora-
tions, exhibition stands, partitions, point-of-sale promotion ...
Tension system and maintenance advices are available on our website
www.learn-pts.com in Methods feature.
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com

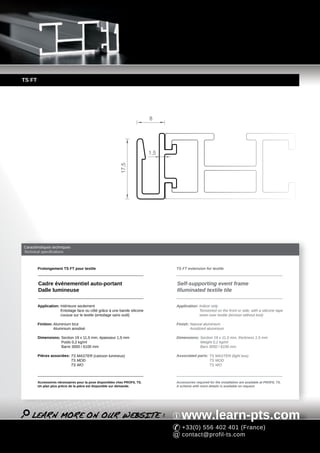

18. TS FT
8
1,5
17,5
Caractéristiques techniques
Technical specifications
Prolongement TS FT pour textile TS FT extension for textile
Cadre événementiel auto-portant Self-supporting event frame
Dalle lumineuse Illuminated textile tile
Application: Intérieure seulement Application: Indoor only
Entoilage face ou côté grâce à une bande silicone Tensioned on the front or side, with a silicone tape
cousue sur le textile (entoilage sans outil) sewn over textile (tension without tool)
Finition: Aluminium brut Finish: Natural aluminium
Aluminium anodisé Anodized aluminium
Dimensions: Section 19 x 11,5 mm, épaisseur 1,5 mm Dimensions: Section 19 x 11,5 mm, thickness 1,5 mm
Poids 0,2 kg/ml Weight 0,2 kg/ml
Barre 3050 / 6100 mm Bars 3050 / 6100 mm
Pièces associées: TS MASTER (caisson lumineux) Associated parts: TS MASTER (light box)
TS MOD TS MOD
TS WO TS WO
Accessoires nécessaires pour la pose disponibles chez PROFIL TS. Accessories required for the installation are available at PROFIL TS.
Un plan plus précis de la pièce est disponible sur demande. A scheme with more details is available on request.
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com

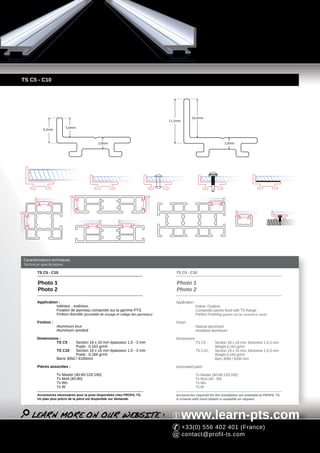

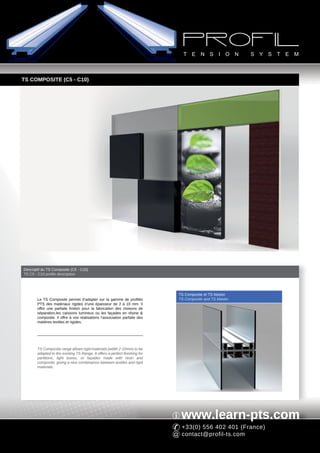

19. TS COMPOSITE (C5 - C10)
Descriptif du TS Composite (C5 - C10)
TS C5 - C10 profile description
TS Composite et TS Master
Le TS Composite permet d’adapter sur la gamme de profilés TS Composite and TS Master
PTS des matériaux rigides d’une épaisseur de 2 à 10 mm. Il
offre une parfaite finition pour la fabrication des cloisons de
séparation,les caissons lumineux ou les façades en résine &
composite. Il offre à vos réalisations l’association parfaite des
matières textiles et rigides.
TS Composite range allows rigid materials (width 2-10mm) to be
adapted to the existing TS Range. It offers a perfect finishing for
partitions, light boxes, or façades made with resin and
composite, giving a nice combinaison between textiles and rigid
materials.
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com
20. TS C5 - C10
10,0mm
11,5mm
5,0mm
6,5mm
3,0mm 3,0mm
Caractéristiques techniques
Technical specifications
TS C5 - C10 TS C5 - C10
Photo 1 Photo 1
Photo 2 Photo 2
Application : Application :
Intérieur , extérieur. Indoor, Outdoor
Fixation de panneau composite sur la gamme PTS. Composite panels fixed with TS Range
Finition discrète (possibilité de vissage et collage des panneaux) Perfect Finishing (panels can be screwed or stuck)
Finition : Finish :
Aluminium brut Natural aluminium
Aluminium anodisé Anodised aluminium
Dimensions : Dimensions :
TS C5 : Section 19 x 10 mm épaisseur 1,5 - 3 mm TS C5 : Section 19 x 10 mm, thickness 1,5-3 mm
Poids : 0,163 gr/ml Weight 0,163 gr/ml
TS C10 : Section 19 x 15 mm épaisseur 1,5 - 3 mm TS C10 : Section 19 x 15 mm, thickness 1,5-3 mm
Poids : 0,184 gr/ml Weight 0,184 gr/ml
Barre 3050 / 6100mm Bars 3050 / 6100 mm
Pièces associées : Associated parts :
Ts Master (40-80-120-160) Ts Master (40-80-120-160)
Ts Mod (40-80) Ts Mod (40 - 80)
Ts Wo Ts Wo
Ts W Ts W
Accessoires nécessaires pour la pose disponibles chez PROFIL TS. Accessories required for the installation are available at PROFIL TS.
Un plan plus précis de la pièce est disponible sur demande. A scheme with more details is available on request.
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com

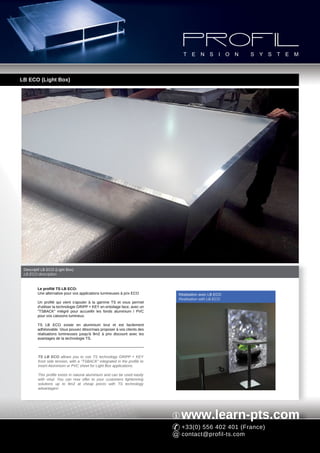

21. LB ECO (Light Box)
Descriptif LB ECO (Light Box)
LB ECO description
Le profilé TS LB ECO:
Une alternative pour vos applications lumineuses à prix ECO Réalisation avec LB ECO
Realisation with LB ECO
Un profilé qui vient s'ajouter à la gamme TS et vous permet
d'utiliser la technologie GRIPP + KEY en entoilage face, avec un
"TSBACK" intégré pour accueillir les fonds aluminium / PVC
pour vos caissons lumineux.
TS LB ECO existe en aluminium brut et est facilement
adhésivable. Vous pouvez désormais proposer à vos clients des
réalisations lumineuses jusqu'à 9m2 à prix discount avec les
avantages de la technologie TS.
TS LB ECO allows you to use TS technology GRIPP + KEY
front side tension, with a "TSBACK" integrated in the profile to
insert Aluminium or PVC sheet for Light Box applications.
This profile exists in natural aluminium and can be used easily
with vinyl. You can now offer to your customers lightenning
solutions up to 9m2 at cheap prices with TS technology
advantages!
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com

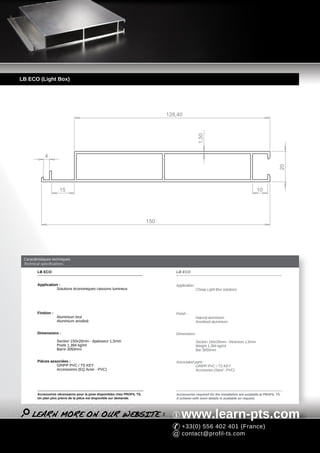

22. LB ECO (Light Box)
128,40
1,50
4
20
15 10
150
Caractéristiques techniques
Technical specifications
LB ECO LB ECO
Application : Application :
Solutions économiques caissons lumineux Cheap Light Box solutions
Finition : Finish :
Aluminium brut Natural aluminium
Aluminium anodisé Anodised aluminium
Dimensions : Dimensions :
Section 150x20mm - épaisseur 1,5mm Section 150x20mm - thickness 1,5mm
Poids 1,394 kg/ml Weight 1,394 kg/ml
Barre 3050mm Bar 3050mm
Pièces associées : Associated parts :
GRIPP PVC / TS KEY GRIPP PVC / TS KEY
Accessoires (EQ Acier - PVC) Accesories (Steel - PVC)
Accessoires nécessaires pour la pose disponibles chez PROFIL TS. Accessories required for the installation are available at PROFIL TS.
Un plan plus précis de la pièce est disponible sur demande. A scheme with more details is available on request.
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com

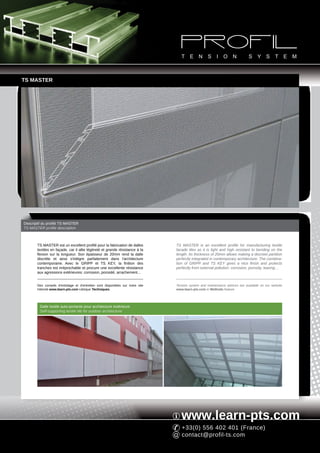

25. TS MASTER
Descriptif du profilé TS MASTER
TS MASTER profile description
TS MASTER est un excellent profilé pour la fabrication de dalles TS MASTER is an excellent profile for manufacturing textile
textiles en façade, car il allie légèreté et grande résistance à la facade tiles as it is light and high resistant to bending on the
flexion sur la longueur. Son épaisseur de 20mm rend la dalle length. Its thickness of 20mm allows making a discreet partition
discrète et ainsi s'intègre parfaitement dans l'architecture perfectly integrated in contemporary architecture. The combina-
contemporaine. Avec le GRIPP et TS KEY, la finition des tion of GRIPP and TS KEY gives a nice finish and protects
tranches est irréprochable et procure une excellente résistance perfectly from external pollution: corrosion, porosity, tearing…
aux agressions extérieures: corrosion, porosité, arrachement...
Des conseils d'entoilage et d'entretien sont disponibles sur notre site Tension system and maintenance advices are available on our website
Internet www.learn-pts.com rubrique Techniques. www.learn-pts.com in Methods feature.
Dalle textile auto-portante pour architecture extérieure
Self-supporting textile tile for outdoor architecture
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com
26. TS MASTER 40 - 80 - 120 - 160
40
2
20
80
20
120
20
160
20
Caractéristiques techniques
Technical specifications
Profilé TS MASTER 40 - 80 - 120 - 160 TS MASTER profile 40 - 80 - 120 - 160
Cadre extra-plat auto-portant Extra-flat self-supporting frame
Dalle textile pour l'architecture Architecture flat textile tile
Dalle textile intérieure Indoor flat textile tile
Application: Intérieure et extérieure (selon toile) Application: Indoor and outdoor (depends on fabric specifications)
Cintrage possible avec rayon minimum (500 mm) Bending available with a minimum radius (500 mm)
Finition: Aluminium brut Finish: Natural aluminium
Aluminium anodisé Anodized aluminium
Dimensions 40: Section 40 x 20 mm, épaisseur 2 mm Dimensions 40: Section 40 x 20 mm, thickness 2 mm
Poids 0,68 kg/ml Weight 0,68 kg/ml
Barre 3050 / 6100 mm Bars 3050 / 6100 mm
Dimensions 80: Section 80 x 20 mm, épaisseur 2 mm Dimensions 80: Section 80 x 20 mm, thickness 2 mm
Poids 1,28 kg/ml Weight 1,28 kg/ml
Barre 3050 / 6100 mm Bars 3050 / 6100 mm
Dimensions 120: Section 120 x 20 mm, épaisseur 2 mm Dimensions 120: Section 120 x 20 mm, thickness 2 mm
Poids 1,94 kg/ml Weight 1,94 kg/ml
Barre 3050 / 6100 mm Bars 3050 / 6100 mm
Dimensions 160: Section 160 x 20 mm, épaisseur 2 mm Dimensions 160: Section 160 x 20 mm, thickness 2 mm
Poids 2,62 kg/ml Weight 2,62 kg/ml
Barre 3050 / 6100 mm Bars 3050 / 6100 mm
Pièces associées: GRIPP PVC / TS KEY, GRIPP SOLTTO Associated parts: GRIPP PVC / TS KEY, GRIPP SOLTTO
TS 90 T, TS 90, TS BACK TS 90 T, TS 90, TS BACK
Accessoires (EQ, méplats, renforts) Accessories (EQ, flat links, links)
Accessoires nécessaires pour la pose disponibles chez PROFIL TS. Accessories required for the installation are available at PROFIL TS.
Un plan plus précis de la pièce est disponible sur demande. A scheme with more details is available on request.
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com
27. TS MOD
Descriptif du profilé TS MOD
TS MOD profile description
Comme son cousin le MASTER, TS MOD est un excellent profilé Like the MASTER, TS MOD is an excellent profile for textile
pour la façade textile. Il permet l'entoilage de face, mais aussi architecture. It allows stretching the banner on the front, but also
double pour la fabrication de dalles isolantes, ou simplement la on both sides for isolating partitions or double sided partitions. It
mise en oeuvre recto et verso. C'est aussi un redoutable is also a powerful system for manufacturing medium sized
système de construction pour structures porteuses de taille structures, to often avoid any use of ironworks.
moyenne, qui évitera souvent tout recours à la serrurerie.
Des conseils d'entoilage et d'entretien sont disponibles sur notre site Tension system and maintenance advices are available on our website
Internet www.learn-pts.com rubrique Techniques. www.learn-pts.com in Methods feature.
Cadre auto-portant grand format sur façade Structure modulable auto-portante
Self-supporting big format banner on facade Self-supporting multi purpose structure
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com
28. TS MOD 40 - 80
40 80
2
40 40
10
Caractéristiques techniques
Technical specifications
Profilé TS MOD 40 - 80 TS MOD profile 40 - 80
Cadre grand format sur structure Big format banner on structure
Cadre auto-portant grand format Self-supporting big format banner
Cloison acoustique auto-portante Self-supporting acoustic partition
Structure modulable auto-portante Self-supporting modular structure
Application: Intérieure et extérieure (selon toile) Application: Indoor and outdoor (depends on fabric specifications)
Entoilage face, côté et arrière Banner tensioned on the front, side or back
Cintrage possible avec un rayon minimum de 500 mm Bending available with a minimum radius of 500 mm
Finition: Aluminium brut Finish: Natural aluminium
Aluminium anodisé Anodized aluminium
Dimensions: Section 40 x 40 mm, épaisseur 2 mm Dimensions: Section 40 x 40 mm, épaisseur 2 mm
Poids 1,08 kg/ml Weight 1,08 kg/ml
Barre 3050 / 6100 mm Bars 3050 / 6100 mm
Dimensions: Section 40 x 80 mm, épaisseur 2 mm Dimensions: Section 40 x 80 mm, épaisseur 2 mm
Poids 2,24 kg/ml Weight 2,24 kg/ml
Barre 3050 / 6100 mm Bars 3050 / 6100 mm
Pièces associées: GRIPP PVC / TS KEY (en bleu sur le plan) Associated parts: GRIPP PVC / TS KEY (blue on the scheme)
GRIPP SOLTTO 2 GRIPP SOLTTO 2
Accessoires (EQ, méplats, manchon) Accessories (EQ, flat links, links)
Accessoires nécessaires pour la pose disponibles chez PROFIL TS. Accessories required for the installation are available at PROFIL TS.
Un plan plus précis de la pièce est disponible sur demande. A scheme with more details is available on request.
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com
31. TS MASTER
Descriptif du profilé TS MASTER
TS MASTER profile description
TS MASTER est dans cette application la version étendue du TS In the same realisations field, TS MASTER is the TS FRAME
FRAME. Il permet de créer des structures plus rigides avec la wide version. Structures with TS MASTER are more rigid and
capacité de supporter des éléments comme des rampes de are able to hold up elements such as spotlights, loudspeaker, air
spots lumineux, haut parleurs, appareils de climatisation, ou tout conditionning equipments or others accesories used to be hung
autre accessoire d'habitude fixé au plafond. from ceiling.
Des conseils d'entoilage et d'entretien sont disponibles sur notre site Tension system and maintenance advices are available on our website
Internet www.learn-pts.com rubrique Techniques. www.learn-pts.com in Methods feature.
Dalle textile auto-portante pour décoration intérieure
Self-supporting textile tile for indoor design
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com
32. TS MASTER 40 - 80 - 120 - 160
40
2
20
80
20
120
20
160
20
Caractéristiques techniques
Technical specifications
Profilé TS MASTER 40 - 80 - 120 - 160 TS MASTER profile 40 - 80 - 120 - 160
Cadre extra-plat auto-portant Extra-flat self-supporting frame
Dalle textile pour l'architecture Architecture flat textile tile
Dalle textile intérieure Indoor flat textile tile
Application: Intérieure et extérieure (selon toile) Application: Indoor and outdoor (depends on fabric specifications)
Cintrage possible avec rayon minimum (500 mm) Bending available with a minimum radius (500 mm)
Finition: Aluminium brut Finish: Natural aluminium
Aluminium anodisé Anodized aluminium
Dimensions 40: Section 40 x 20 mm, épaisseur 2 mm Dimensions 40: Section 40 x 20 mm, thickness 2 mm
Poids 0,68 kg/ml Weight 0,68 kg/ml
Barre 3050 / 6100 mm Bars 3050 / 6100 mm
Dimensions 80: Section 80 x 20 mm, épaisseur 2 mm Dimensions 80: Section 80 x 20 mm, thickness 2 mm
Poids 1,28 kg/ml Weight 1,28 kg/ml
Barre 3050 / 6100 mm Bars 3050 / 6100 mm
Dimensions 120: Section 120 x 20 mm, épaisseur 2 mm Dimensions 120: Section 120 x 20 mm, thickness 2 mm
Poids 1,94 kg/ml Weight 1,94 kg/ml
Barre 3050 / 6100 mm Bars 3050 / 6100 mm
Dimensions 160: Section 160 x 20 mm, épaisseur 2 mm Dimensions 160: Section 160 x 20 mm, thickness 2 mm
Poids 2,62 kg/ml Weight 2,62 kg/ml
Barre 3050 / 6100 mm Bars 3050 / 6100 mm
Pièces associées: GRIPP PVC / TS KEY, GRIPP SOLTTO Associated parts: GRIPP PVC / TS KEY, GRIPP SOLTTO
TS 90 T, TS 90, TS BACK TS 90 T, TS 90, TS BACK
Accessoires (EQ, méplats, renforts) Accessories (EQ, flat links, links)
Accessoires nécessaires pour la pose disponibles chez PROFIL TS. Accessories required for the installation are available at PROFIL TS.
Un plan plus précis de la pièce est disponible sur demande. A scheme with more details is available on request.
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com
33. TS BACK + TS 90 (+ TS MASTER)
Descriptif des profilés TS BACK et TS 90, montés sur TS MASTER
TS BACK and TS 90 profiles description, mounted on TS MASTER
Le TS MASTER est également utilisé pour des caissons et TS MASTER is used in Light Box units too, and can be used with
s'additionne avec le TS BACK pour y glisser un support rigide, the TS BACK to add supports, giving rigidity and an aesthetic
résistant et esthétique (PVC, Plexiglas ®, Dibond ®, feuille appearance (Plexiglas ®, acrylic sheets, aluminium sheets
d'aluminium >4mm, etc...). Il peut aussi s'additionner avec le TS >4mm, etc...). The addition of TS 90 allows the tension GRIPP
90 pour un entoilage sur le côté, permettant d'illuminer un visuel to be fixed on the side to have a picture without margins or to
sans marge ou de construire des caissons recto/verso. Associé build double sided boxes. Associated with TS FRAME, TS
au TS FRAME, ce profilé permet également de réaliser des MASTER can also be used to make light boxes with removable
caissons lumineux à façade amovible. La clé TS KEY de finition sides. The TS KEY integrates perfectly into the profile's design
s'intègre parfaitement dans le design du profilé et apporte une and gives a "top-of-the-range" finish (TS KEY available in
finition très haut de gamme. Les épaisseurs d'extrusion font de natural, anodised, and white lacquered finish). The extrusion
ce produit un châssis stable et solide qui ne risque pas de cintrer widths make this product steady and sturdy with no risk of
sur les longueurs. bending along the length.
Des conseils d'entoilage et d'entretien sont disponibles sur notre site Tension system and maintenance advices are available on our website
Internet www.learn-pts.com rubrique Techniques. www.learn-pts.com in Methods feature.
Caisson lumineux en toile textile
Light box made with fabric
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com
34. TS BACK + TS 90 (+ TS MASTER 40 - 80 - 120 - 160)
TS 90
TS BACK
20
Ex : TS Master 120
141,5 (1,5 + 120 + 20)
123 141,5 160
1: Caisson simple face entoilage avant 2: Caisson simple face entoilage côté 3: Caisson double face
1: Single side box with tension on the front 2: Single side box with tension on the side 3: Double side box
Caractéristiques techniques
Technical specifications
Prolongements TS BACK et TS 90 TS BACK and TS 90 extensions
Caisson lumineux simple face Single side light box
Caisson lumineux double face Double side light box
Caisson à face amovible Light box with removable side
Caisson textile (simple, double) Fabric light box (single, double)
Application: Intérieure et extérieure (selon toile) Application: Indoor and outdoor (depends on fabric specifications)
Finition: Aluminium brut Finish: Natural aluminium
Aluminium anodisé Anodized aluminium
Dimensions: Section 23,5 x 15 mm (TS 90) 38 x 10 mm (TS BACK) Dimensions: Section 23,5 x 15 mm (TS 90) 38 x 10 mm (TS BACK)
Épaisseur moyenne 2 mm (TS 90) 1,5 mm (TS BACK) Average thickness 2 mm (TS 90) 1,5 mm (TS BACK)
Poids 0,29 kg/ml (TS 90) 0,28 kg/ml (TS BACK) Weight 0,29 kg/ml (TS 90) 0,28 kg/ml (TS BACK)
Barre 3050 / 6100 mm (TS 90 et TS BACK) Bars 3050 /6100 mm (TS 90 et TS BACK)
Pièces associées: GRIPP PVC / TS KEY Associated parts: GRIPP PVC / TS KEY
GRIPP SOLTTO 2 GRIPP SOLTTO 2
TS MASTER TS MASTER
Accessoires nécessaires pour la pose disponibles chez PROFIL TS. Accessories required for the installation are available at PROFIL TS.
Un plan plus précis de la pièce est disponible sur demande. A scheme with more details is available on request.
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com
35. TS MOD
Descriptif du profilé TS MOD
TS MOD profile description
TS MOD est un profilé très rigide, polyvalent (multi-gorges) et TS MOD profile is known to be very rigid, polyvalent (multi
intervient dans différentes applications de la toile tendue. Il channels) and is used in various PVC or textile banners applica-
permet la réalisation de cloison isolante (recto / verso) de tions. Insulating partitions, removable structures (with banner
structure modulable et peut servir de barre de renfort pour les tensioning on the front side or / and back side) can be made with
cadres réalisés en TS MOD. Il offre également de nombreuses TS MOD. This profile can be also used as a "reinforced bar"
possibilités en matière de fixation. inside TS MOD frame, and offers many fixing solution.
Des conseils d'entoilage et d'entretien sont disponibles sur notre site Tension system and maintenance advices are available on our website
Internet www.learn-pts.com rubrique Techniques. www.learn-pts.com in Methods feature.
Dalle de plafond cintrée Cloisons acoustiques auto-portantes
Curving ceiling tile Self-supporting acoustic partitions
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com
36. TS MOD 40 - 80
40 80
2
40 40
10
Caractéristiques techniques
Technical specifications
Profilé TS MOD 40 - 80 TS MOD profile 40 - 80
Cadre grand format sur structure Big format banner on structure
Cadre auto-portant grand format Self-supporting big format banner
Cloison acoustique auto-portante Self-supporting acoustic partition
Structure modulable auto-portante Self-supporting modular structure
Application: Intérieure et extérieure (selon toile) Application: Indoor and outdoor (depends on fabric specifications)
Entoilage face, côté et arrière Banner tensioned on the front, side or back
Cintrage possible avec un rayon minimum de 500 mm Bending available with a minimum radius of 500 mm
Finition: Aluminium brut Finish: Natural aluminium
Aluminium anodisé Anodized aluminium
Dimensions: Section 40 x 40 mm, épaisseur 2 mm Dimensions: Section 40 x 40 mm, épaisseur 2 mm
Poids 1,08 kg/ml Weight 1,08 kg/ml
Barre 3050 / 6100 mm Bars 3050 / 6100 mm
Dimensions: Section 40 x 80 mm, épaisseur 2 mm Dimensions: Section 40 x 80 mm, épaisseur 2 mm
Poids 2,24 kg/ml Weight 2,24 kg/ml
Barre 3050 / 6100 mm Bars 3050 / 6100 mm
Pièces associées: GRIPP PVC / TS KEY (en bleu sur le plan) Associated parts: GRIPP PVC / TS KEY (blue on the scheme)
GRIPP SOLTTO 2 GRIPP SOLTTO 2
Accessoires (EQ, méplats, manchon) Accessories (EQ, flat links, links)
Accessoires nécessaires pour la pose disponibles chez PROFIL TS. Accessories required for the installation are available at PROFIL TS.
Un plan plus précis de la pièce est disponible sur demande. A scheme with more details is available on request.
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com
37. TS 90 T
Descriptif du profilé TS 90 T
TS 90 T profile description
TS 90 T est une option pour tension des textiles M1 extensibles,
façonnés avec un jonc silicone. Cette solution permet d'avoir Dalle lumineuse, textile tendu à la main
des textiles faciles à retirer du support et à repositionner, pour Illuminated textile tile, hand stretched
des raisons de maintenance par exemple. Associé avec TS
MASTER, il est possible de l'utiliser comme dalle lumineuse.
Des conseils d'entoilage et d'entretien sont disponibles sur notre site
Internet www.learn-pts.com rubrique Techniques.
TS 90 T is a tensioning option for M1 stretch textiles, made with
a silicone tape. This solution allows to easily remove the fabric
from its support and to get it in position again, for maintenance
for example. Combined with TS MASTER, it is possible to use
TS 90 T as a illuminated tile.
Tension system and maintenance advices are available on our website
www.learn-pts.com in Methods feature.
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com
38. TS 90 T
1,5
5
17,5
Caractéristiques techniques
Technical specifications
Prolongement TS 90 T pour textile TS 90 T extension for textile
Cadre événementiel auto-portant Self-supporting event frame
Dalle lumineuse Illuminated textile tile
Application: Intérieure seulement Application: Indoor only
Entoilage face ou côté grâce à une bande silicone Tensioned on the front or side, with a silicone tape
cousue sur le textile (entoilage sans outil) sewn over textile (tension without tool)
Finition: Aluminium brut Finish: Natural aluminium
Aluminium anodisé Anodized aluminium
Dimensions: Section 22,5 x 19 mm, épaisseur 1,5 mm Dimensions: Section 22,5 x 19 mm, thickness 1,5 mm
Poids 0,25 kg/ml Weight 0,25 kg/ml
Barre 3050 / 6100 mm Bars 3050 / 6100 mm
Pièces associées: TS MASTER (caisson lumineux) Associated parts: TS MASTER (light box)
TS MOD TS MOD
TS WO TS WO
Accessoires nécessaires pour la pose disponibles chez PROFIL TS. Accessories required for the installation are available at PROFIL TS.
Un plan plus précis de la pièce est disponible sur demande. A scheme with more details is available on request.
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com

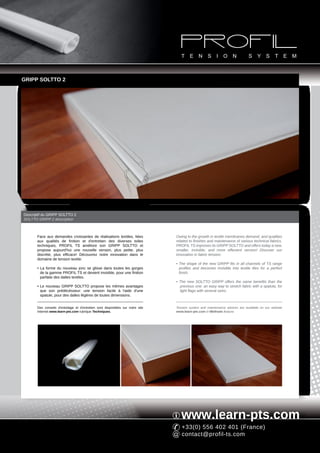

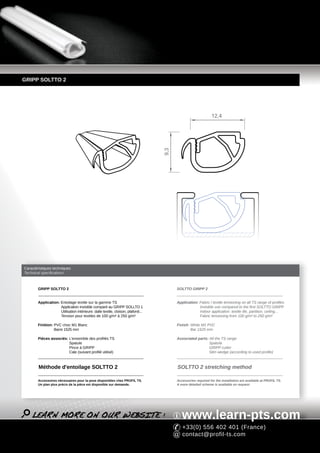

39. GRIPP SOLTTO
Descriptif du GRIPP SOLTTO
SOLTTO GRIPP description

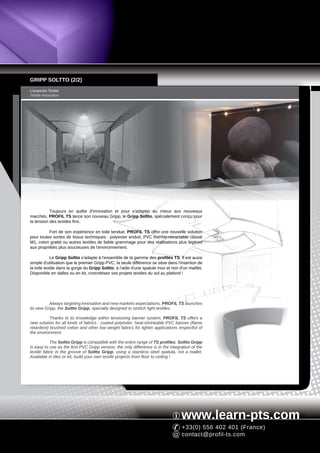

Toujours en quête d'innovation et pour s'adapter au mieux au As part of its continous innovation policy and of its technology
nouveau marché textile, PROFIL TS lance le Gripp Soltto, adaptation to the textile industry, PROFIL TS launches a new
spécialement conçu pour la tension des textiles fins. PVC GRIPP, the SOLTTO GRIPP.
• Pour garantir son succès, de nombreux tests de tension ont été • To prove and guarantee SOLTTO GRIPP efficiency and
réalisés pour valider toutes sortes de tissus techniques. performance, many tests have been made on various type of
textile banners.
• Le textile offre divers avantages: réalisation plus légère et
écologique (recyclage). • Nowadays, banner made with fabric are known to offer lighter
realisation and are more ecological.
• Le Gripp Soltto s'adapte à l'ensemble de la gamme des profilés
TS. L'insertion de la toile textile dans la gorge du Gripp Soltto • SOLTTO GRIPP is adapted to the TS range aluminium profiles,
se fait à l'aide d'une spatule inox et non d'un maillet. and textile is inserted inside the SOLTTO GRIPP channel with
stainless steel spatula which differs from the TS GRIPP.
Des conseils d'entoilage et d'entretien sont disponibles sur notre site Tension system and maintenance advices are available on our website
Internet www.learn-pts.com rubrique Techniques. www.learn-pts.com in Methods feature.
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com
40. GRIPP SOLTTO (2/2)
L'avancée Textile
Textile innovation
Toujours en quête d'innovation et pour s'adapter au mieux aux nouveaux
marchés, PROFIL TS lance son nouveau Gripp, le Gripp Soltto, spécialement conçu pour
la tension des textiles fins.
Fort de son expérience en toile tendue, PROFIL TS offre une nouvelle solution
pour toutes sortes de tissus techniques : polyester enduit, PVC thermo-retractable classé
M1, coton gratté ou autres textiles de faible grammage pour des réalisations plus légères
aux propriétés plus soucieuses de l'environnement.
Le Gripp Soltto s'adapte à l'ensemble de la gamme des profilés TS. Il est aussi
simple d'utilisation que le premier Gripp PVC, la seule différence se situe dans l'insertion de
la toile textile dans la gorge du Gripp Soltto, à l'aide d'une spatule inox et non d'un maillet.
Disponible en dalles ou en kit, concrétisez vos projets textiles du sol au plafond !
Always targeting innovation and new markets expectations, PROFIL TS launches
its new Gripp, the Soltto Gripp, specially designed to stretch light textiles.
Thanks to its knowledge within tensioning banner system, PROFIL TS offers a
new solution for all kinds of fabrics : coated polyester, heat-shrinkable PVC banner (flame
retardent) brushed cotton and other low weight fabrics for lighter applications respectful of
the environment.
The Soltto Gripp is compatible with the entire range of TS profiles. Soltto Gripp
is easy to use as the first PVC Gripp version, the only difference is in the integration of the
textile fabric in the groove of Soltto Gripp, using a stainless steel spatula, not a mallet.
Available in tiles or kit, build your own textile projects from floor to ceiling !
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com

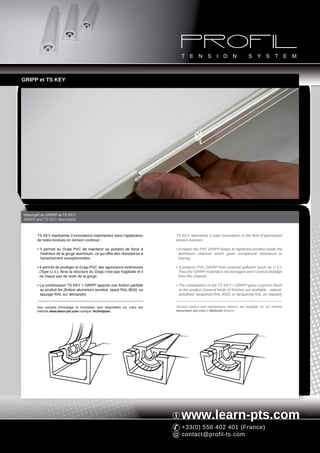

43. GRIPP et TS KEY
Descriptif du GRIPP et TS KEY
GRIPP and TS KEY description
TS KEY représente 3 innovations importantes dans l'application TS KEY represents 3 main innovations in the field of permanent
de toiles tendues en tension continue : tension banners :
• Il permet au Gripp PVC de maintenir sa position de force à • It makes the PVC GRIPP keeps its tightened position inside the
l'intérieur de la gorge aluminium, ce qui offre des résistances à aluminium channel, which gives exceptional résistance to
l'arrachement exceptionnelles. tearing.
• Il permet de protéger le Gripp PVC des agressions extérieures • It protects PVC GRIPP from external pollution (such as U.V.).
(Type U.V.). Ainsi la structure du Gripp n'est pas fragilisée et il Thus the GRIPP material is not damaged and it cannot dislodge
ne risque pas de sortir de la gorge. from the channel.
• La combinaison TS KEY + GRIPP apporte une finition parfaite • The combination of the TS KEY + GRIPP gives a perfect finish
au produit fini (finition aluminium anodisé, laqué RAL 9010, ou to the product (several kinds of finishes are available : natural,
laquage RAL sur demande). anodised, lacquered RAL 9010, or lacquering RAL on request).
Des conseils d'entoilage et d'entretien sont disponibles sur notre site Tension system and maintenance advices are available on our website
Internet www.learn-pts.com rubrique Techniques. www.learn-pts.com in Methods feature.
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com

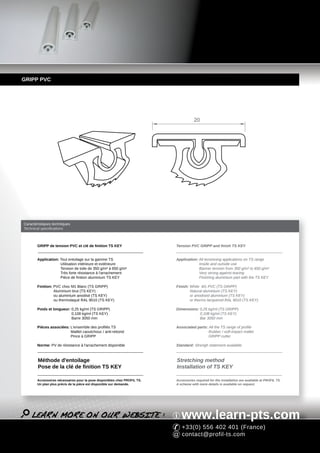

44. GRIPP PVC
20
Caractéristiques techniques
Technical specifications
GRIPP de tension PVC et clé de finition TS KEY Tension PVC GRIPP and finish TS KEY
Application: Tout entoilage sur la gamme TS Application: All tensioning applications on TS range
Utilisation intérieure et extérieure Inside and outside use
Tension de toile de 350 g/m² à 650 g/m² Banner tension from 350 g/m² to 650 g/m²
Très forte résistance à l'arrachement Very strong against tearing
Pièce de finition aluminium TS KEY Finishing aluminium part with the TS KEY
Finition: PVC choc M1 Blanc (TS GRIPP) Finish: White M1 PVC (TS GRIPP)
Aluminium brut (TS KEY) Natural aluminium (TS KEY)
ou aluminium anodisé (TS KEY) or anodised aluminium (TS KEY)
ou thermolaqué RAL 9010 (TS KEY) or thermo lacquered RAL 9010 (TS KEY)
Poids et longueur: 0,25 kg/ml (TS GRIPP) Dimensions: 0,25 kg/ml (TS GRIPP)
0,108 kg/ml (TS KEY) 0,108 kg/ml (TS KEY)
Barre 3050 mm Bar 3050 mm
Pièces associées: L'ensemble des profilés TS Associated parts: All the TS range of profile
Maillet caoutchouc / anti-rebond Rubber / soft-impact mallet
Pince à GRIPP GRIPP cutter
Norme: PV de résistance à l'arrachement disponible Standard: Strengh statement available
Méthode d'entoilage Stretching method
Pose de la clé de finition TS KEY Installation of TS KEY
Accessoires nécessaires pour la pose disponibles chez PROFIL TS. Accessories required for the installation are available at PROFIL TS.
Un plan plus précis de la pièce est disponible sur demande. A scheme with more details is available on request.
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com
45. GRIPP SOLTTO 2
Descriptif du GRIPP SOLTTO 2
SOLTTO GRIPP 2 description
Face aux demandes croissantes de réalisations textiles, liées Owing to the growth in textile membranes demand, and qualities
aux qualités de finition et d'entretien des diverses toiles related to finishes and maintenance of various technical fabrics,
techniques, PROFIL TS améliore son GRIPP SOLTTO et PROFIL TS improves its GRIPP SOLTTO and offers today a new,
propose aujourd'hui une nouvelle version, plus petite, plus smaller, invisible, and more effecient version! Discover our
discrète, plus efficace! Découvrez notre innovation dans le innovation in fabric tension:
domaine de tension textile:
• The shape of the new GRIPP fits in all channels of TS range
• La forme du nouveau jonc se glisse dans toutes les gorges profiles and becomes invisible into textile tiles for a perfect
de la gamme PROFIL TS et devient invisible, pour une finition finish.
parfaite des dalles textiles.
• The new SOLTTO GRIPP offers the same benefits than the
• Le nouveau GRIPP SOLTTO propose les mêmes avantages previous one: an easy way to stretch fabric with a spatula, for
que son prédécésseur: une tension facile à l'aide d'une light flags with several sizes.
spatule, pour des dalles légères de toutes dimensions.
Des conseils d'entoilage et d'entretien sont disponibles sur notre site Tension system and maintenance advices are available on our website
Internet www.learn-pts.com rubrique Techniques. www.learn-pts.com in Methods feature.
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com
46. GRIPP SOLTTO 2
12,4
9,3
Caractéristiques techniques
Technical specifications
GRIPP SOLTTO 2 SOLTTO GRIPP 2
Application: Entoilage textile sur la gamme TS Application: Fabric / textile tensioning on all TS range of profiles
Application invisible comparé au GRIPP SOLLTO 1 Invisible use compared to the first SOLTTO GRIPP
Utilisation intérieure: dalle textile, cloison, plafond... Indoor application: textile tile, partition, ceiling...
Tension pour textiles de 100 g/m² à 250 g/m² Fabric tensioning from 100 g/m² to 250 g/m²
Finition: PVC choc M1 Blanc Finish: White M1 PVC
Barre 1525 mm Bar 1525 mm
Pièces associés: L'ensemble des profilés TS Associated parts: All the TS range
Spatule Spatula
Pince à GRIPP GRIPP cutter
Cale (suivant profilé utilisé) Slim wedge (according to used profile)
Méthode d'entoilage SOLTTO 2 SOLTTO 2 stretching method
Accessoires nécessaires pour la pose disponibles chez PROFIL TS. Accessories required for the installation are available at PROFIL TS.
Un plan plus précis de la pièce est disponible sur demande. A more detailed scheme is available on request.
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com

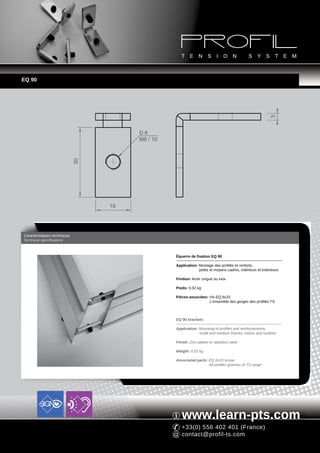

47. EQ 90
3
D6
M6 / 10
30
15
Caractéristiques techniques
Technical specifications
Équerre de fixation EQ 90
Application: Montage des profilés et renforts,
petits et moyens cadres, intérieurs et extérieurs
Finition: Acier zingué ou inox
Poids: 0,02 kg
Pièces associées: Vis EQ 6x10
L'ensemble des gorges des profilés TS
EQ 90 brackets
Application: Mounting of profiles and reinforcements,
small and medium frames, indoor and outdoor
Finish: Zinc-plated or stainless steel
Weight: 0,02 kg
Associated parts: EQ 6x10 screw
All profiles grooves of TS range
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com
48. EQ 90 P
50
15
D6
M6 / 10
Caractéristiques techniques
Technical specifications
Équerre de fixation EQ 90 P
Application: Montage des profilés,
petits et moyens cadres, intérieurs et extérieurs
Finition: Acier zingué ou inox
Poids: 0,03 kg
Pièces associées: Vis EQ 6x10
L'ensemble des gorges des profilés TS
EQ 90 P brackets
Application: Mounting of profiles,
small and medium frames, indoor and outdoor
Finish: Zinc-plated or stainless steel
Weight: 0,03 kg
Associated parts: EQ 6x10 screw
All profiles grooves of TS range
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com

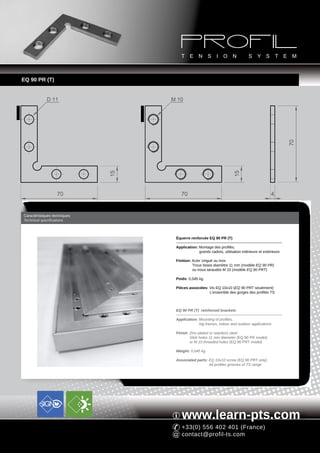

49. EQ 90 PR (T)
D 11 M 10
EQ 90 PR
EQ 90 PRT
70
15
15
70 70 4
Caractéristiques techniques
Technical specifications
Équerre renforcée EQ 90 PR (T)
Application: Montage des profilés,
grands cadres, utilisation intérieure et extérieure
Finition: Acier zingué ou inox
Trous lisses diamètre 11 mm (modèle EQ 90 PR)
ou trous taraudés M 10 (modèle EQ 90 PRT)
Poids: 0,045 kg
Pièces associées: Vis EQ 10x10 (EQ 90 PRT seulement)
L'ensemble des gorges des profilés TS
EQ 90 PR (T) reinforced brackets
Application: Mounting of profiles,
big frames, indoor and outdoor applications
Finish: Zinc-plated or stainless steel
Slick holes 11 mm diameter (EQ 90 PR model)
or M 10 threaded holes (EQ 90 PRT model)
Weight: 0,045 kg
Associated parts: EQ 10x10 screw (EQ 90 PRT only)
All profiles grooves of TS range
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com

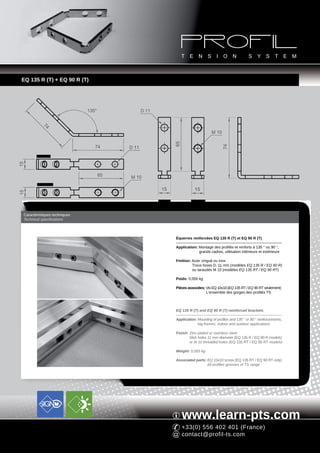

50. EQ 135 R (T) + EQ 90 R (T)
135° D 11
74
M 10
65
74
74
D 11
EQ 135 R
15
65 M 10
EQ 135 RT
15 15
15
EQ 90 R EQ 90 RT
Caractéristiques techniques
Technical specifications
Équerres renforcées EQ 135 R (T) et EQ 90 R (T)
Application: Montage des profilés et renforts à 135 ° ou 90 °,
grands cadres, utilisation intérieure et extérieure
Finition: Acier zingué ou inox
Trous lisses D. 11 mm (modèles EQ 135 R / EQ 90 R)
ou taraudés M 10 (modèles EQ 135 RT / EQ 90 RT)
Poids: 0,055 kg
Pièces associées: Vis EQ 10x10 (EQ 135 RT / EQ 90 RT seulement)
L'ensemble des gorges des profilés TS
EQ 135 R (T) and EQ 90 R (T) reinforced brackets
Application: Mounting of profiles and 135 ° or 90 ° reinforcements,
big frames, indoor and outdoor applications
Finish: Zinc-plated or stainless steel
Slick holes 11 mm diameter (EQ 135 R / EQ 90 R models)
or M 10 threaded holes (EQ 135 RT / EQ 90 RT models)
Weight: 0,055 kg
Associated parts: EQ 10x10 screw (EQ 135 RT / EQ 90 RT only)
All profiles grooves of TS range
www.learn-pts.com
+33(0) 556 402 401 (France)
contact@profil-ts.com
