PresentationProductionPreacherCurl1

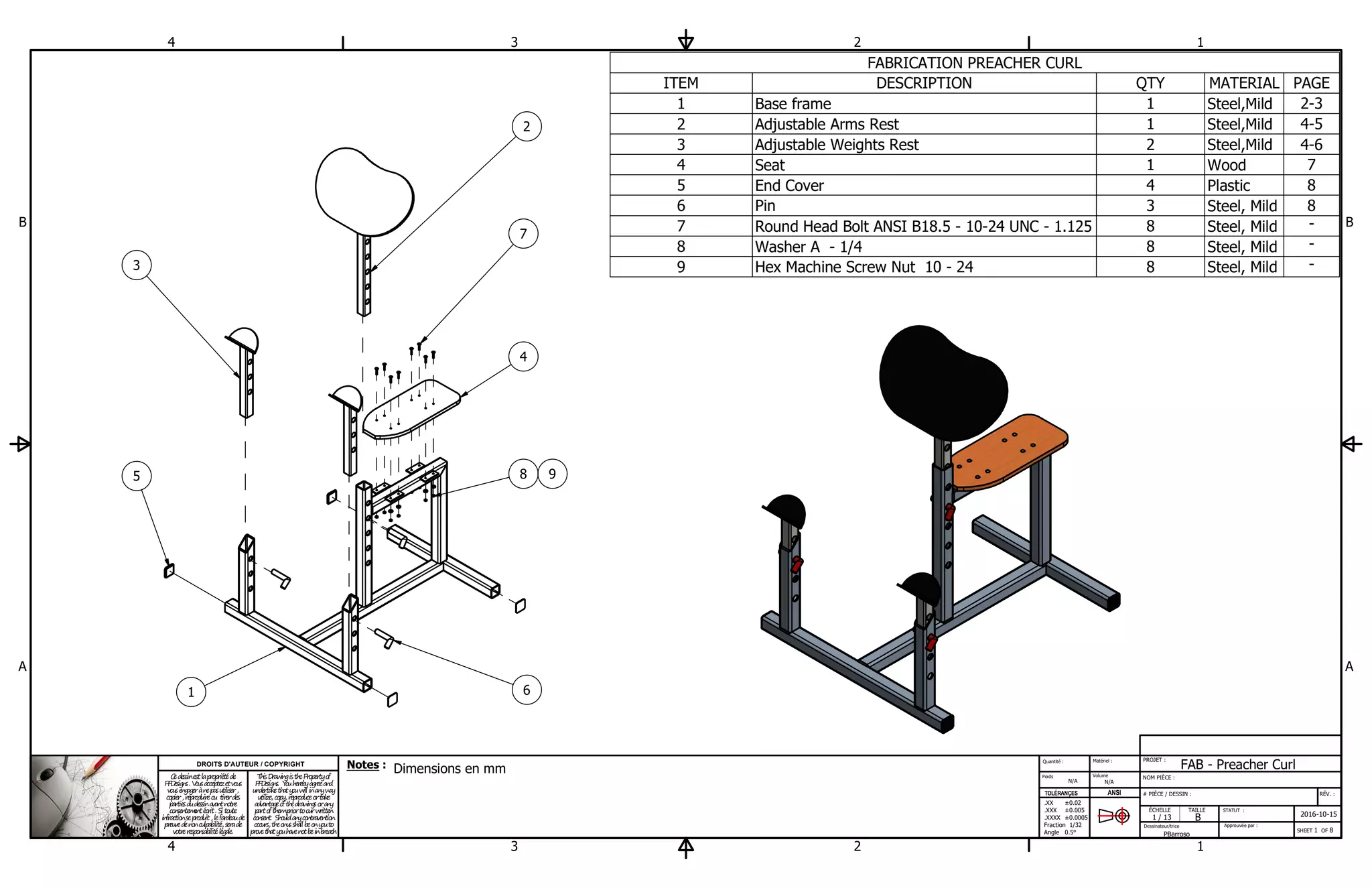

- 1. FABRICATION PREACHER CURL
PAGEMATERIALQTYDESCRIPTIONITEM
2-3Steel,Mild1Base frame1
4-5Steel,Mild1Adjustable Arms Rest2
4-6Steel,Mild2Adjustable Weights Rest3
7Wood1Seat4
8Plastic4End Cover5
8Steel, Mild3Pin6
-Steel, Mild8Round Head Bolt ANSI B18.5 - 10-24 UNC - 1.1257
-Steel, Mild8Washer A - 1/48
-Steel, Mild8Hex Machine Screw Nut 10 - 249
1
1
2
2
3
3
4
4
A A
B B
SHEET 1 OF 8
Dessinateur/trice
Quantit :
PBarroso
# PI CE / DESSIN :
NOM PI CE :
TAILLE
B
CHELLE
R V. :
PROJET :
FAB - Preacher Curl
Approuv e par :
2016-10-15
STATUT :
Mat riel :
N/A
Poids
N/A
Volume
Fraction 1/32
Angle 0.5
TOL RAN ES
.XX
.XXX
.XXXX
0.02
0.005
0.0005
ANSI
Cedessinestlapropri t de
PFDesigns. Vousacceptezetvous
vousengager nepasutiliser,
copier,reproduireou tirerdes
partiesdudessinavantnotre
consentement crit. Si toute
infractionseproduit,lefardeaude
preuvedenonculpabilit ,serade
votreresponsabilit l gale.
ThisDrawingisthePropertyof
PFDesigns. Youherebyagreeand
undertakethatyouwill inanyway
utilize,copy,reproduceortake
advantageofthedrawingsorany
partofthempriortoourwritten
consent. Shouldanycontravention
occurs,theonusshallbeonyouto
provethatyouhavenotbeinbreach.
DROITS D'AUTEUR / COPYRIGHT Notes :
1 / 13
Dimensions en mm
2
4
8 9
7
3
5
61
