Volumetric Lighting for Many Lights
in Lords of the Fallen
Benjamin Glatzel

Engine/Graphics Programmer

Deck13 Interactiv...

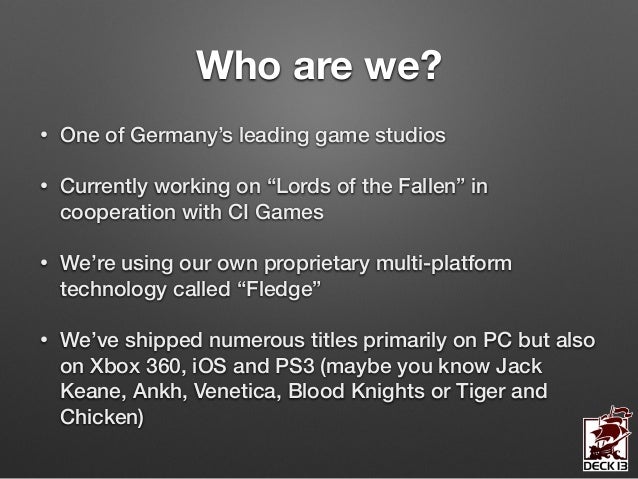

Who are we?
• One of Germany’s leading game studios
• Currently working on “Lords of the Fallen” in
cooperation with CI Ga...

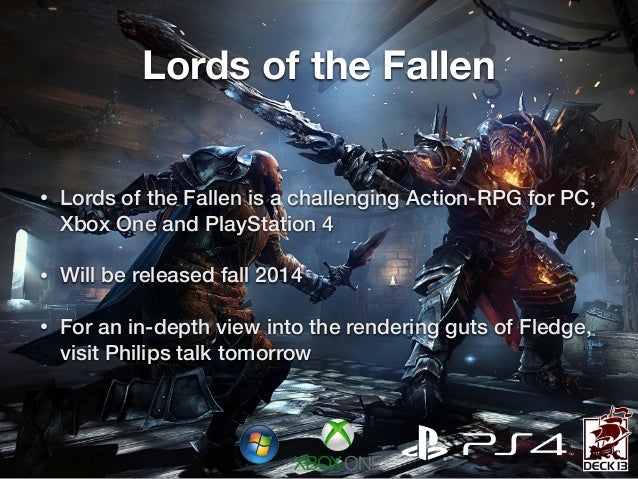

Lords of the Fallen
• Lords of the Fallen is a challenging Action-RPG for PC,
Xbox One and PlayStation 4
• Will be release...

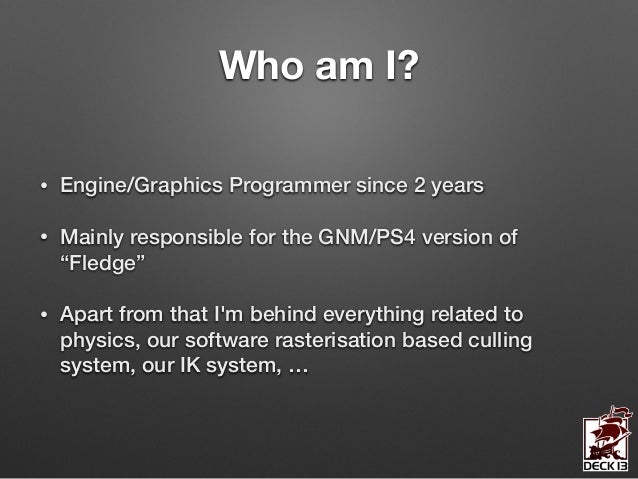

Who am I?
• Engine/Graphics Programmer since 2 years
• Mainly responsible for the GNM/PS4 version of
“Fledge”
• Apart from...
Introduction

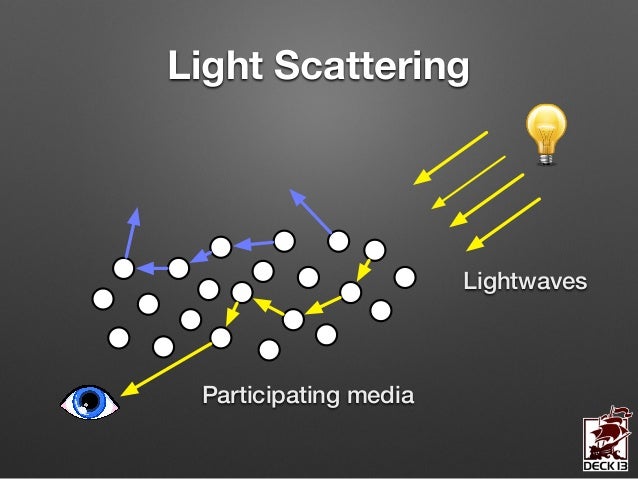

Light Scattering
Lightwaves
Participating media

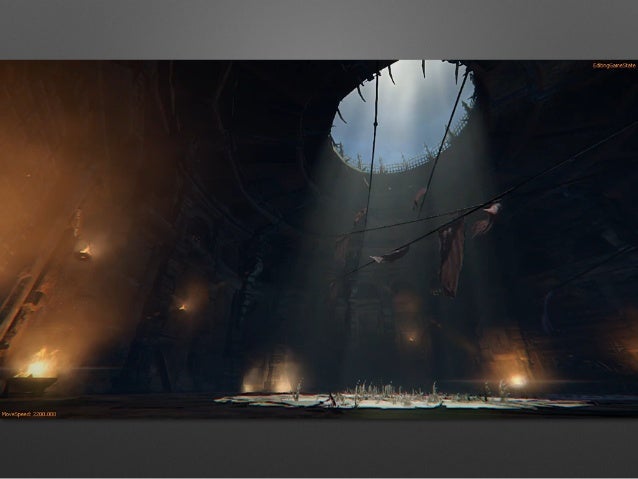

Motivation

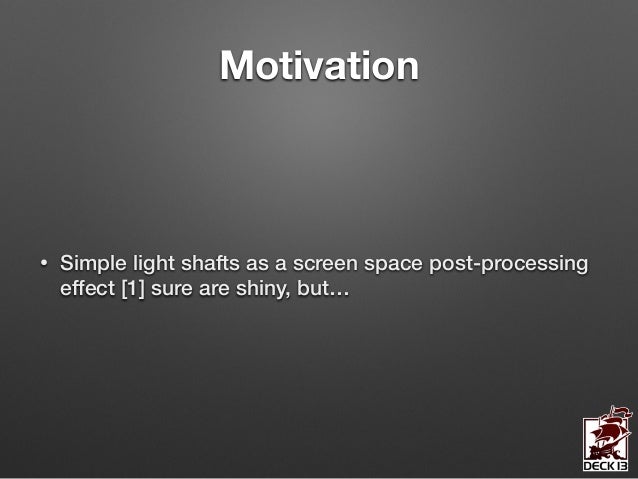

Motivation
• Simple light shafts as a screen space post-processing
effect [1] sure are shiny, but…

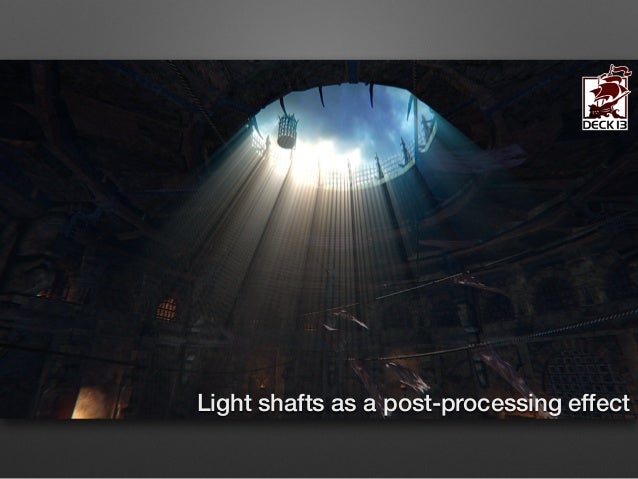

Light shafts as a post-processing effect
Light shafts as a post-processing effect

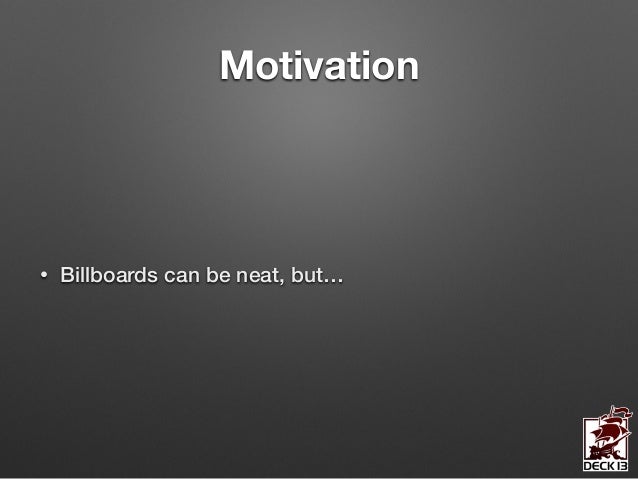

Motivation
• Billboards can be neat, but…

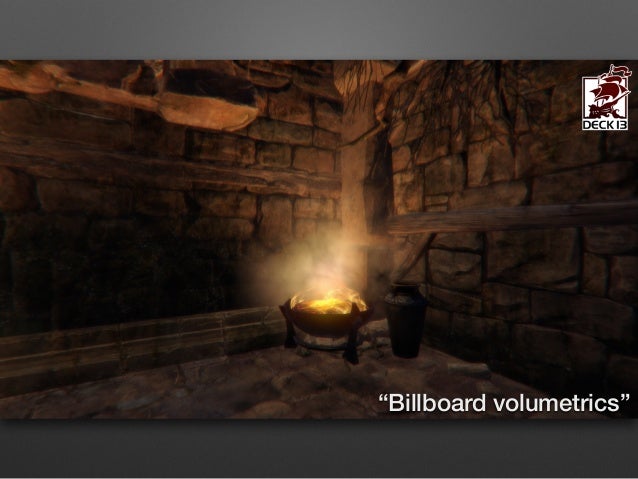

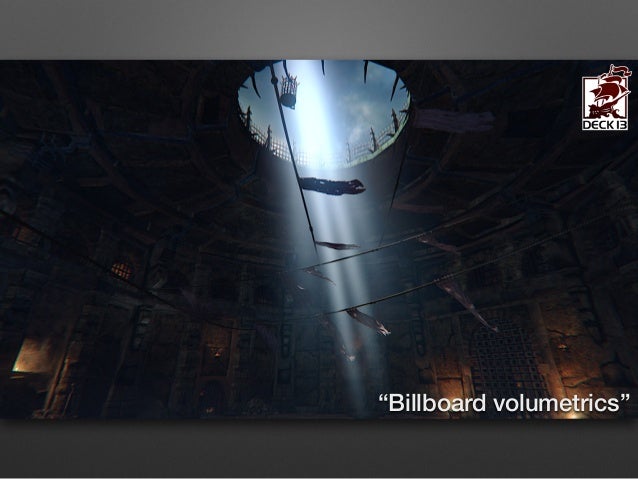

“Billboard volumetrics”
“Billboard volumetrics”
Motivation
• We wanted something more dynamic and flexible that
could be tightly integrated into our lighting system
• It s...

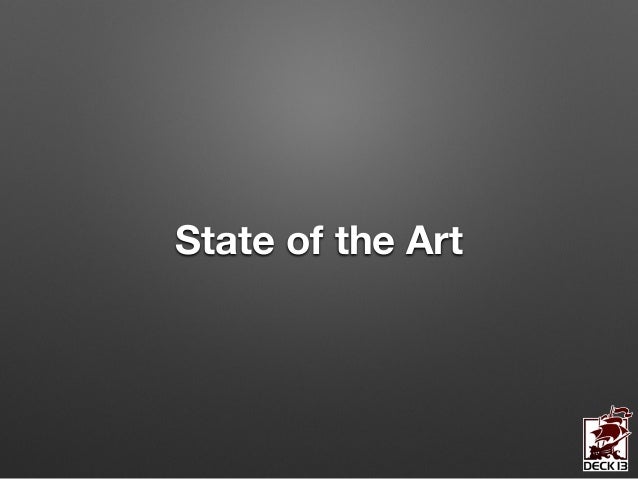

State of the Art

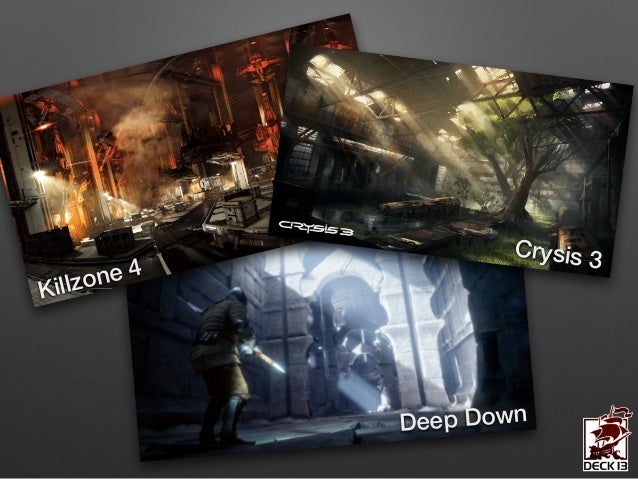

Deep Down
Killzone 4
Crysis 3

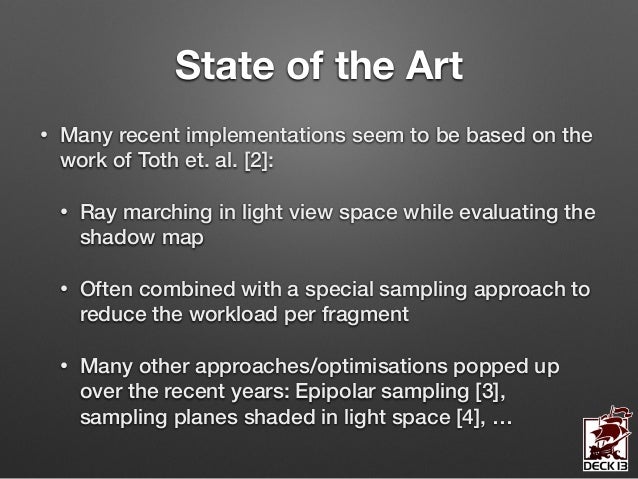

State of the Art
• Many recent implementations seem to be based on the
work of Toth et. al. [2]:
• Ray marching in light v...

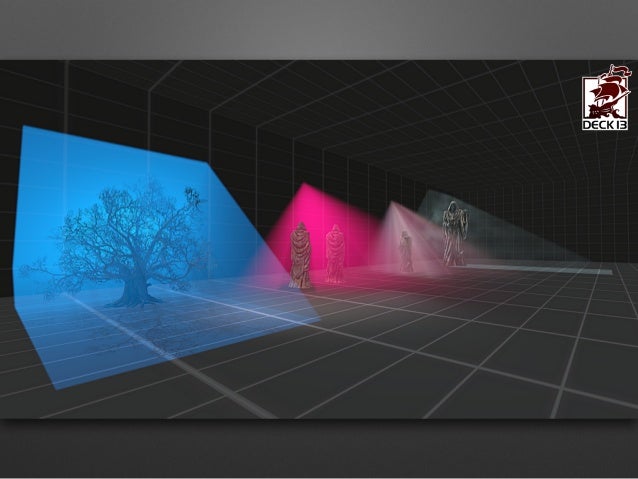

Our Approach

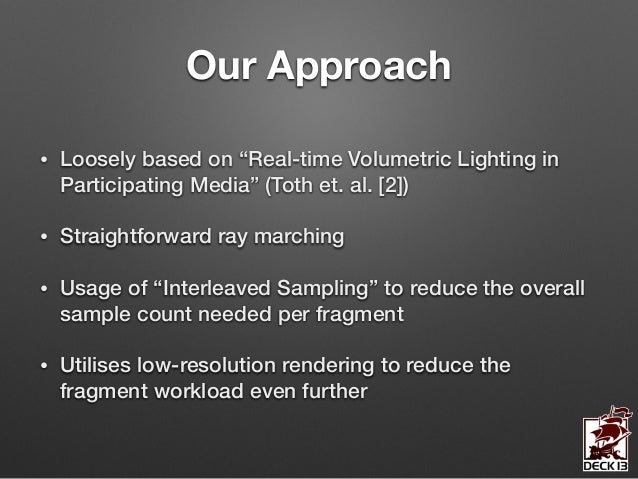

Our Approach
• Loosely based on “Real-time Volumetric Lighting in
Participating Media” (Toth et. al. [2])
• Straightforwar...

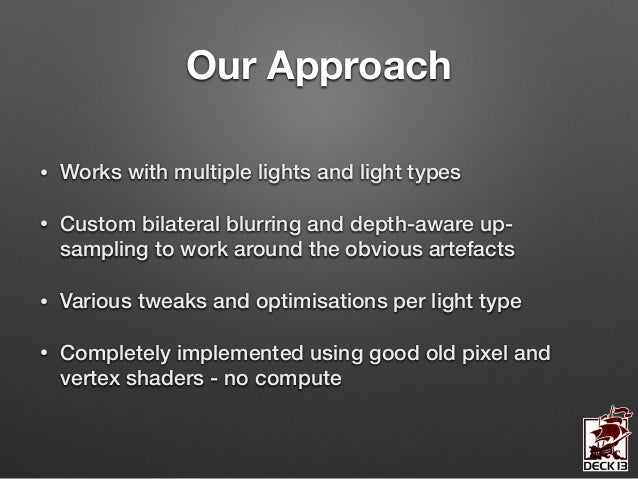

Our Approach
• Works with multiple lights and light types
• Custom bilateral blurring and depth-aware up-
sampling to work...

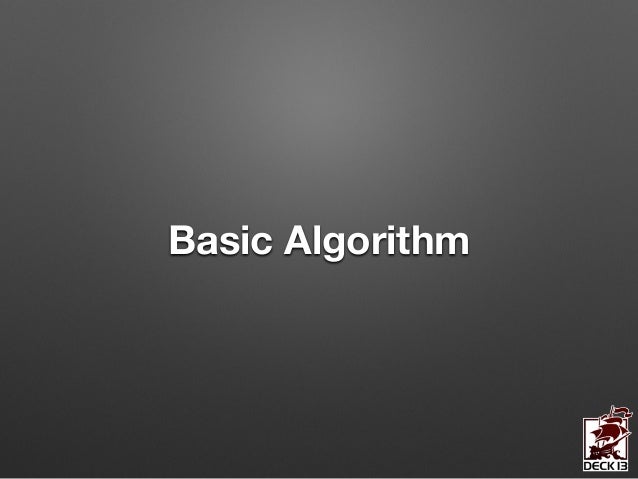

Basic Algorithm

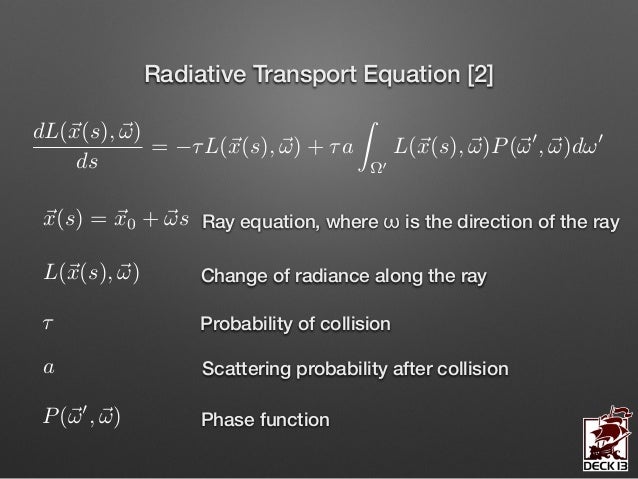

Radiative Transport Equation [2]
~x(s) = ~x0 + ~!s
L(~x(s), ~!)
⌧
a
P(~!0
, ~!)
Ray equation, where ω is the direction of ...

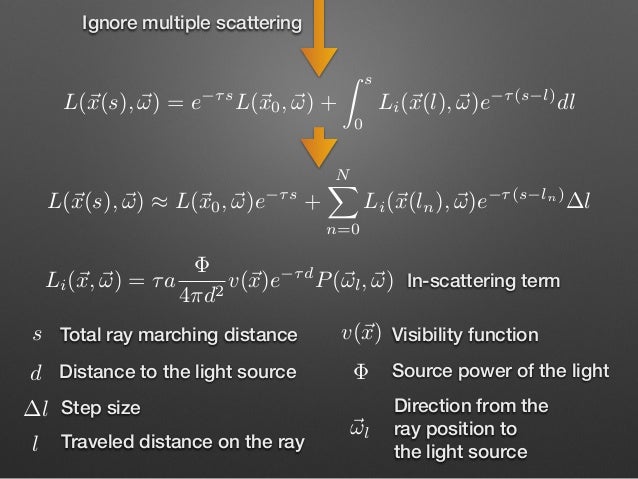

L(~x(s), ~!) = e ⌧s
L(~x0, ~!) +
Z s
0
Li(~x(l), ~!)e ⌧(s l)
dl
L(~x(s), ~!) ⇡ L(~x0, ~!)e ⌧s
+
NX
n=0
Li(~x(ln), ~!)e ⌧(s...

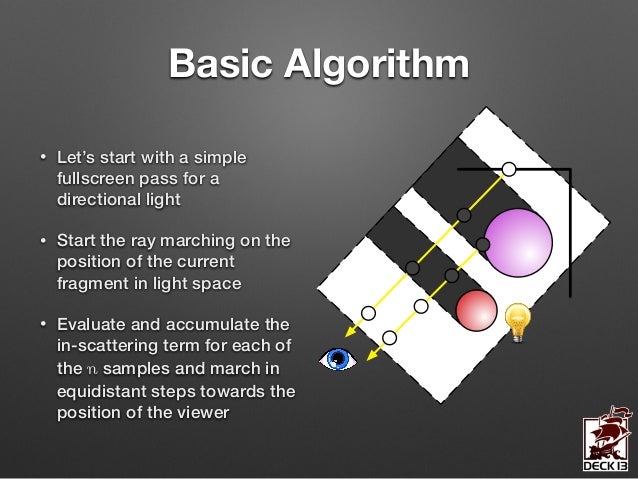

Basic Algorithm
• Let’s start with a simple
fullscreen pass for a
directional light
• Start the ray marching on the
positi...

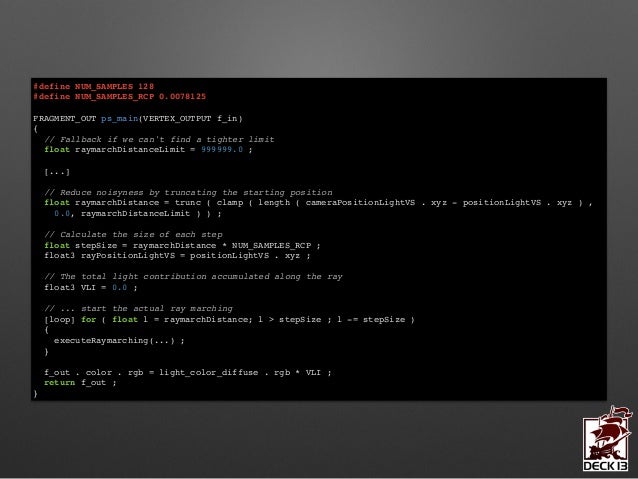

#define NUM_SAMPLES 128!
#define NUM_SAMPLES_RCP 0.0078125!
!
FRAGMENT_OUT ps_main(VERTEX_OUTPUT f_in)!
{!
// Fallback if ...
#define TAU 0.0001!
#define PHI 10000000.0!
!
#define PI_RCP 0.31830988618379067153776752674503!
!
void executeRaymarching...

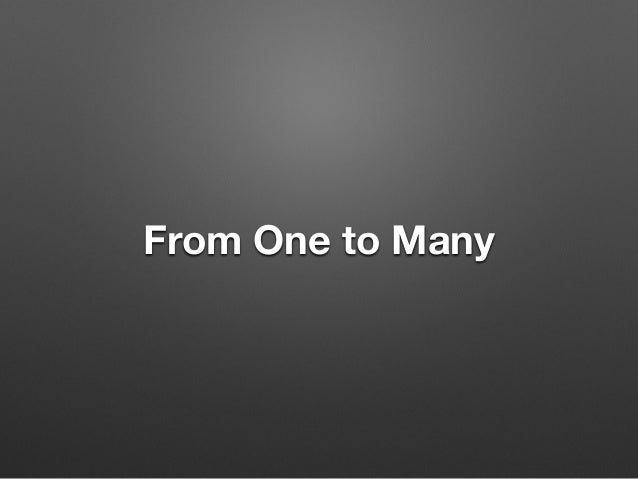

From One to Many

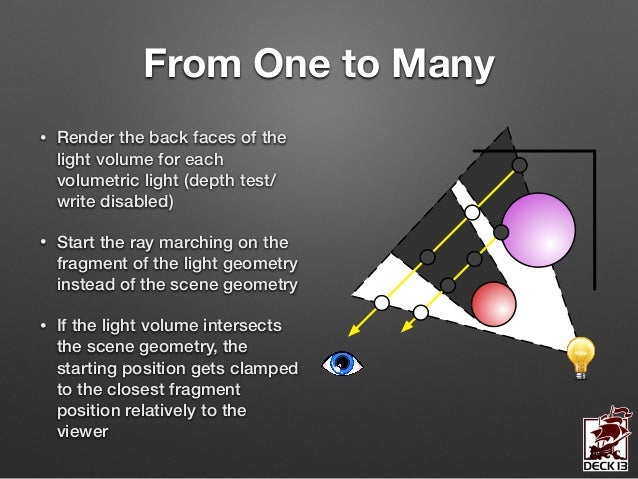

From One to Many
• Render the back faces of the
light volume for each
volumetric light (depth test/
write disabled)
• Star...

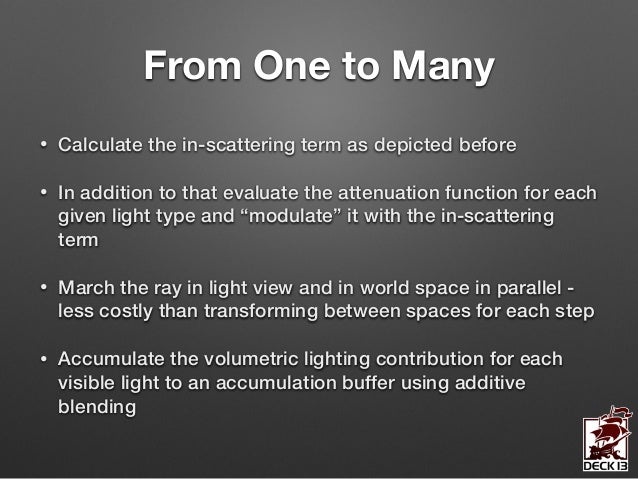

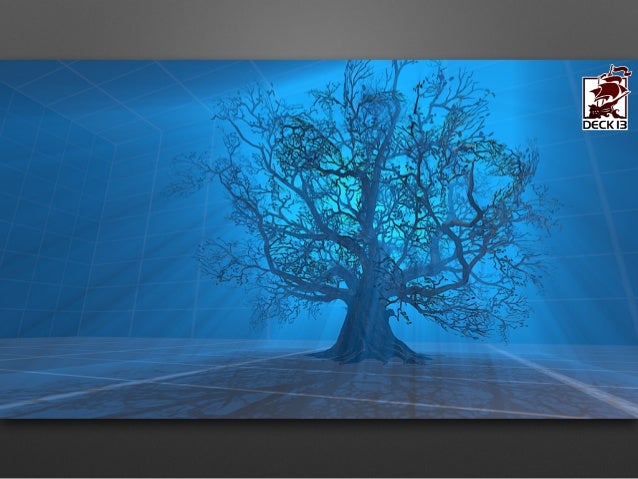

From One to Many
• Calculate the in-scattering term as depicted before
• In addition to that evaluate the attenuation func...

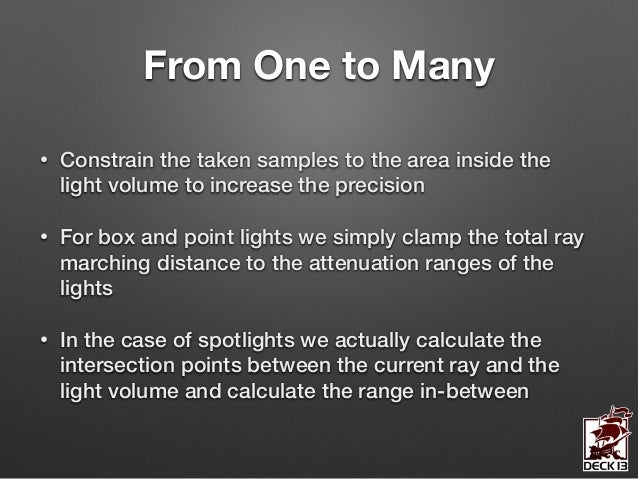

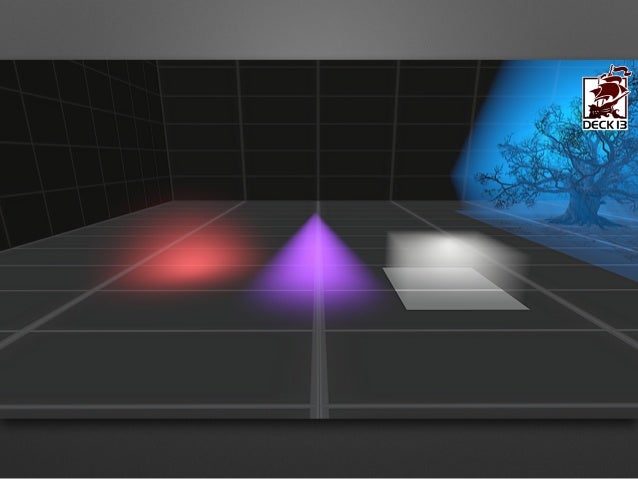

From One to Many
• Constrain the taken samples to the area inside the
light volume to increase the precision
• For box and...
Much slow
Wow
So sample
How to Make it Fast

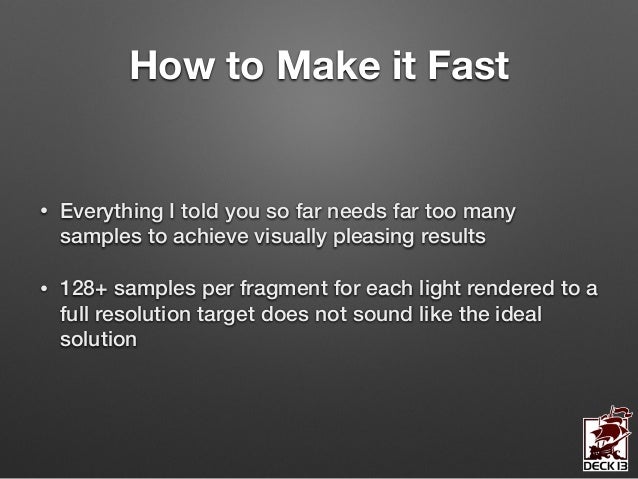

How to Make it Fast
• Everything I told you so far needs far too many
samples to achieve visually pleasing results
• 128+ ...

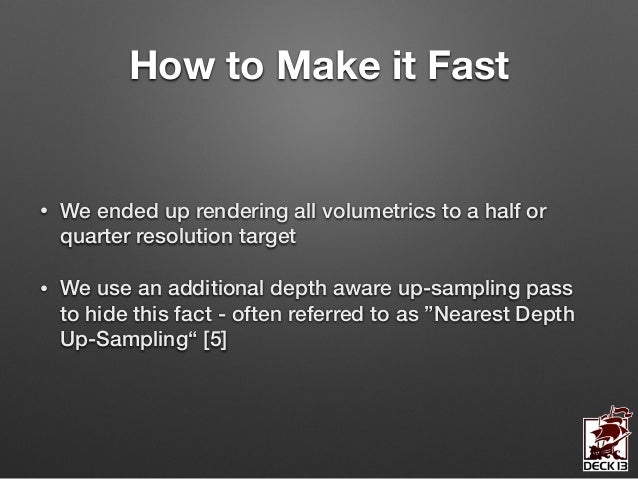

How to Make it Fast
• We ended up rendering all volumetrics to a half or
quarter resolution target
• We use an additional ...
Without depth-aware up-sampling

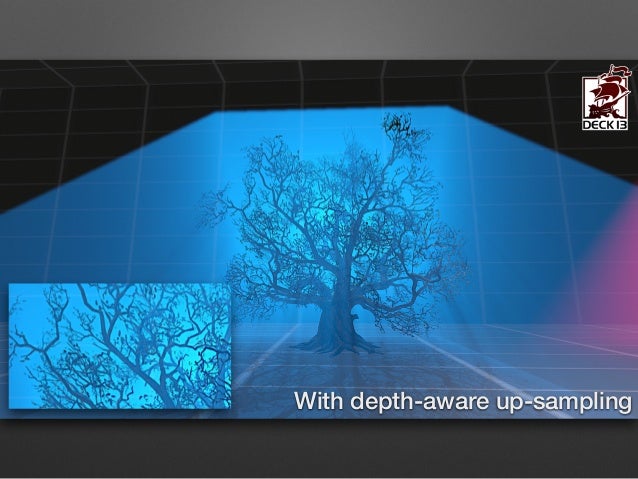

With depth-aware up-sampling

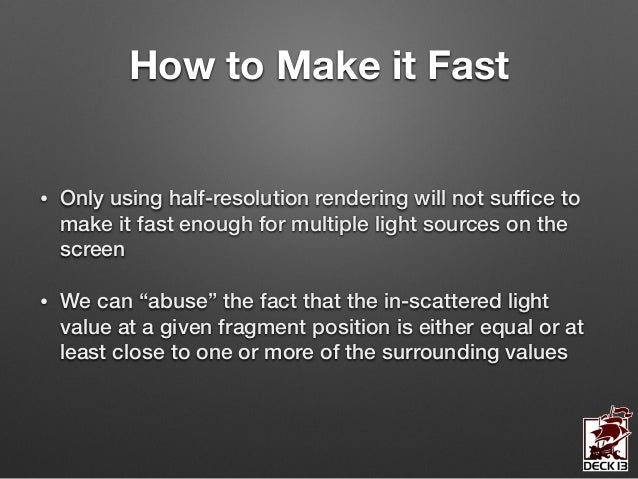

How to Make it Fast
• Only using half-resolution rendering will not suffice to
make it fast enough for multiple light sourc...

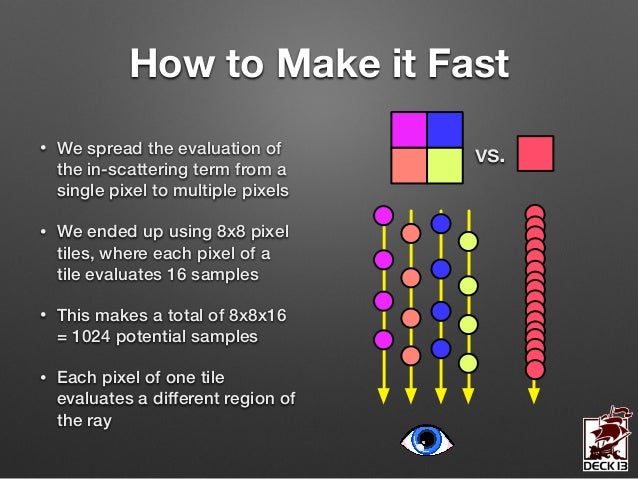

How to Make it Fast
• We spread the evaluation of
the in-scattering term from a
single pixel to multiple pixels
• We ended...

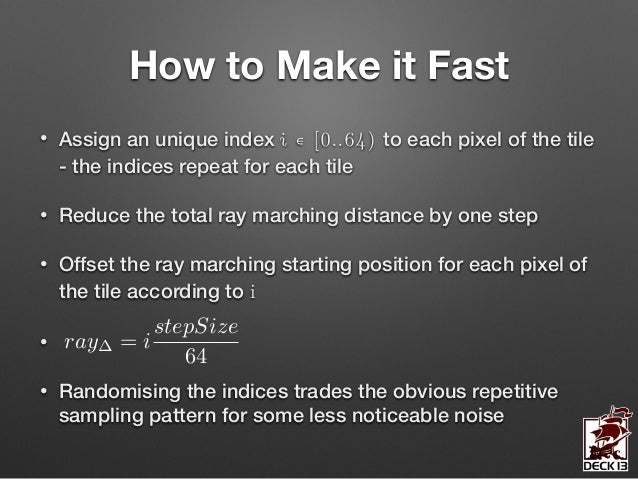

How to Make it Fast
• Assign an unique index i ∊ [0..64) to each pixel of the tile
- the indices repeat for each tile
• Re...

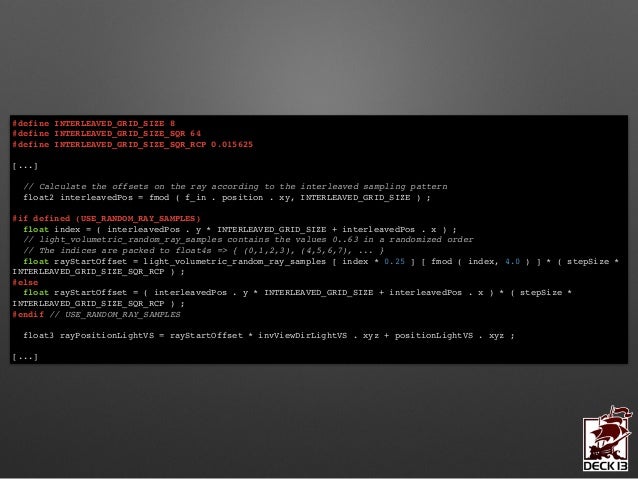

#define INTERLEAVED_GRID_SIZE 8!
#define INTERLEAVED_GRID_SIZE_SQR 64!
#define INTERLEAVED_GRID_SIZE_SQR_RCP 0.015625!
!
[...
Accumulation buffer before the gather pass

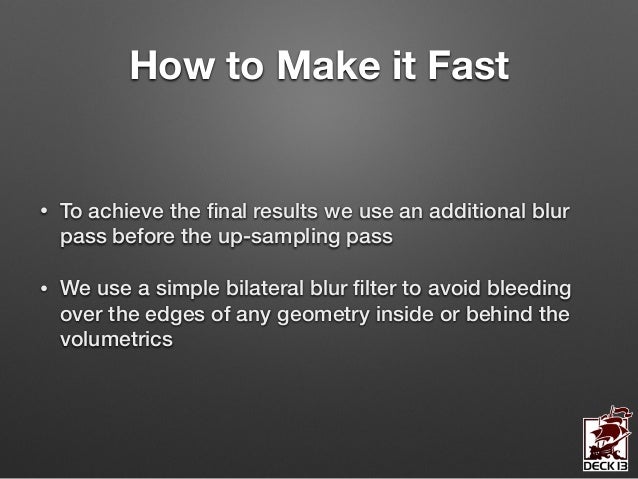

How to Make it Fast
• To achieve the final results we use an additional blur
pass before the up-sampling pass
• We use a si...

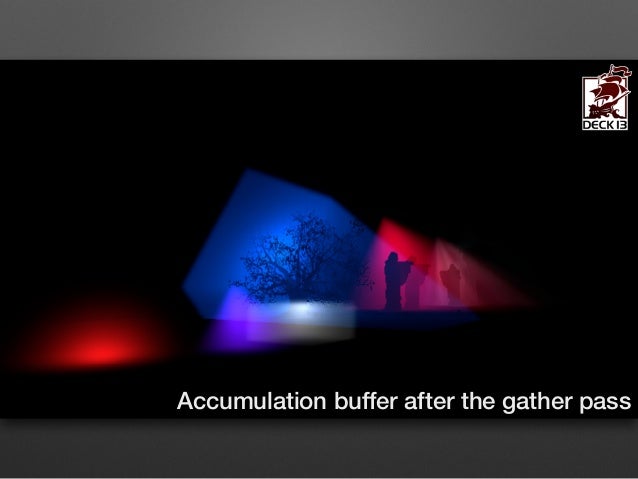

Accumulation buffer after the gather pass

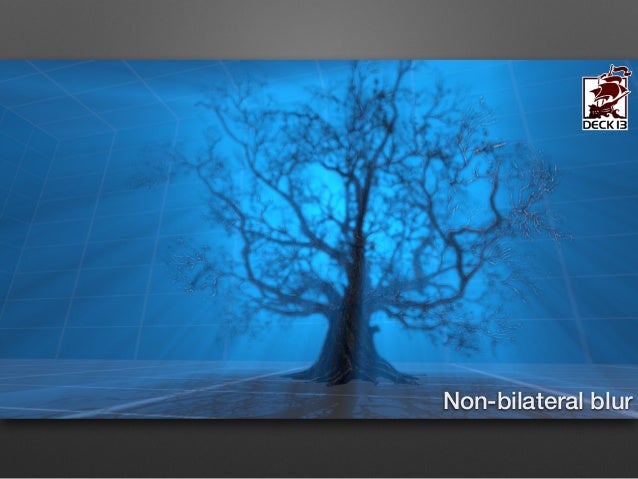

Non-bilateral blur

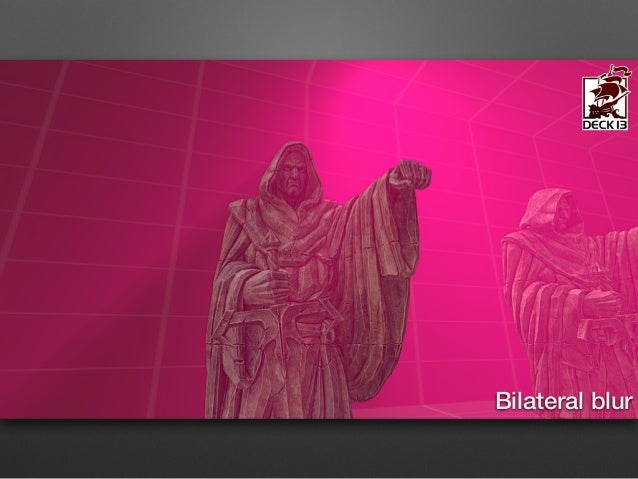

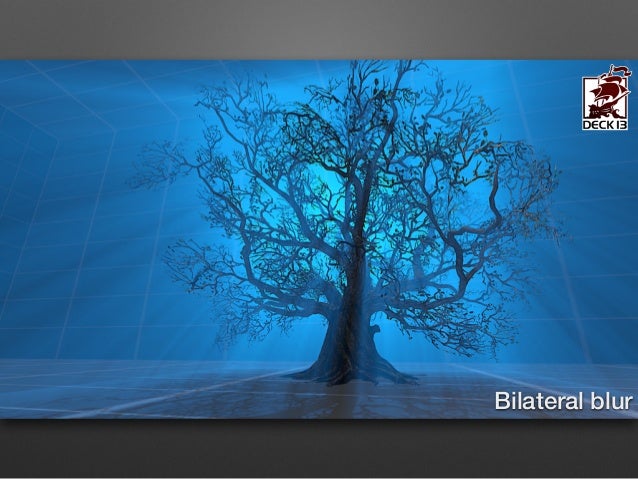

Bilateral blur
Non-bilateral blur
Bilateral blur

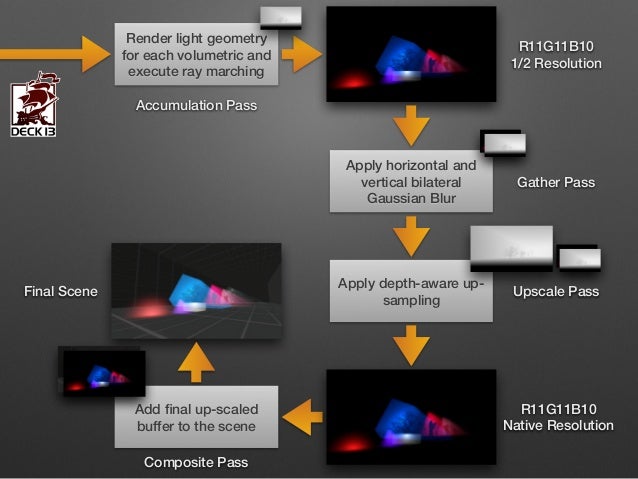

Render light geometry
for each volumetric and
execute ray marching
R11G11B10
1/2 Resolution
Apply horizontal and
vertical ...

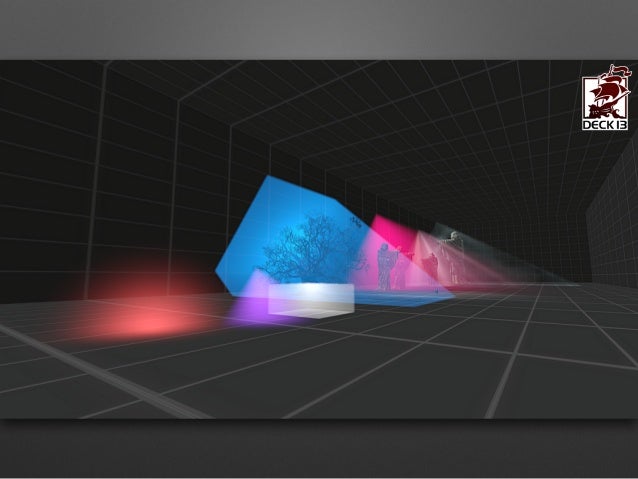

Extending the System

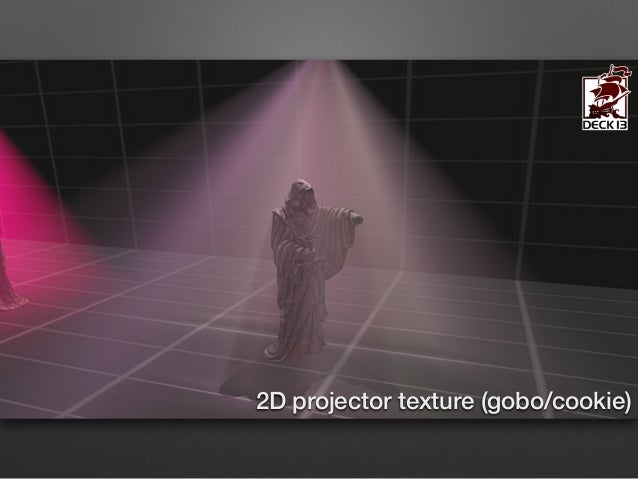

2D projector texture (gobo/cookie)

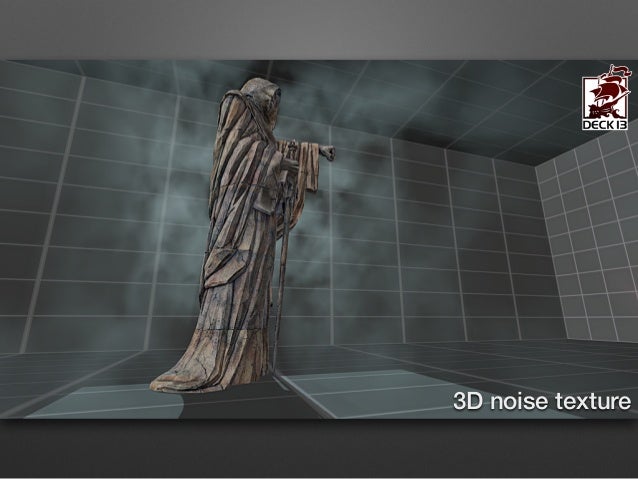

3D noise texture

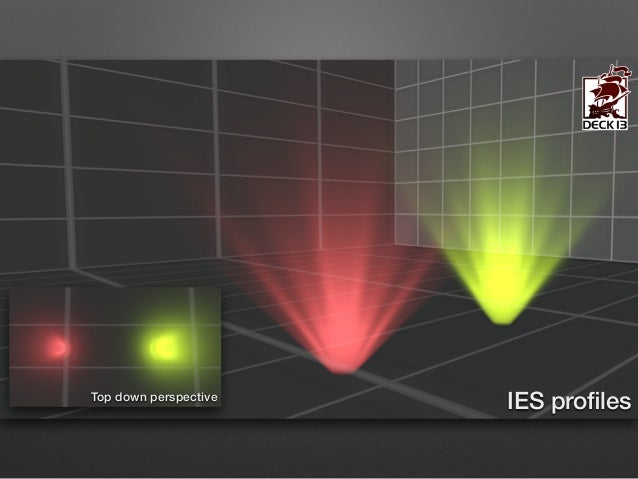

IES profilesTop down perspective

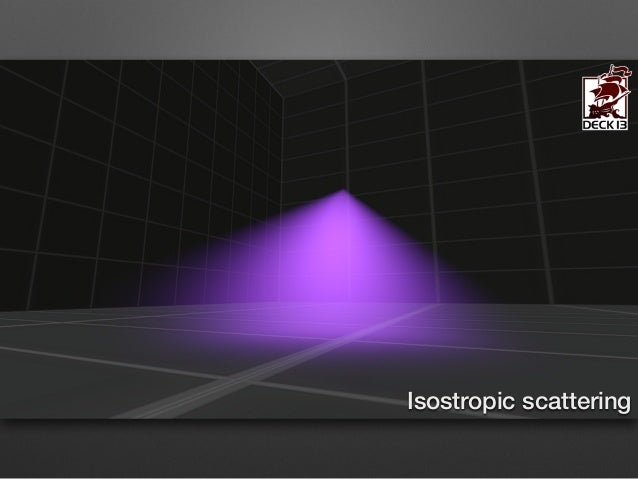

Isostropic scattering

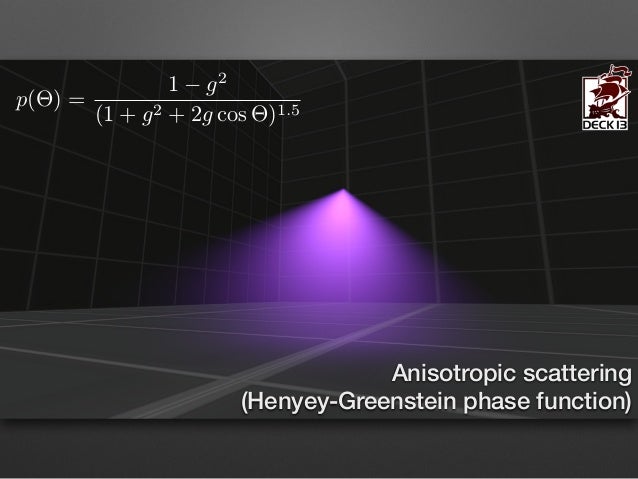

Anisotropic scattering
(Henyey-Greenstein phase function)
p(⇥) =
1 g2
(1 + g2 + 2g cos ⇥)1.5

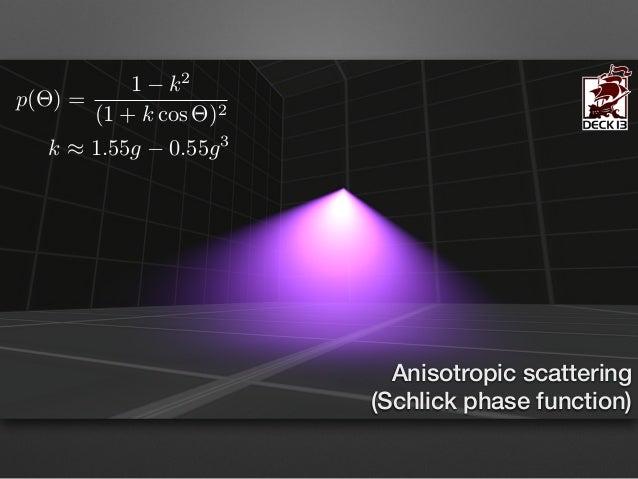

Anisotropic scattering
(Schlick phase function)
p(⇥) =
1 k2
(1 + k cos ⇥)2
k ⇡ 1.55g 0.55g3

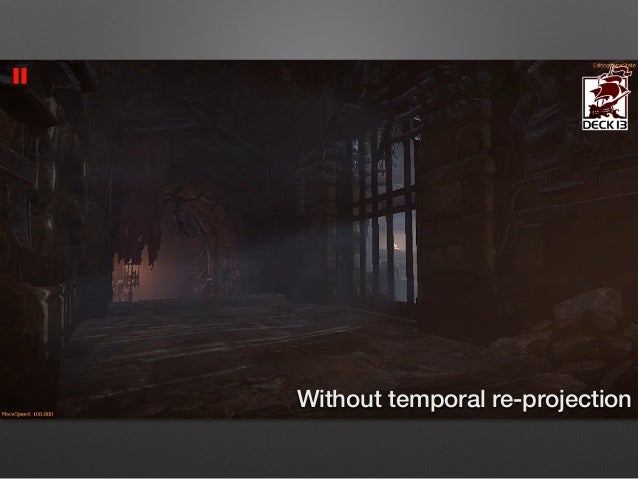

Without temporal re-projection

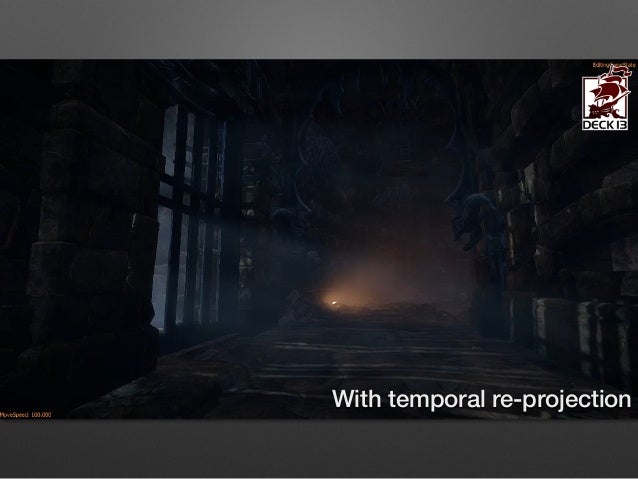

With temporal re-projection

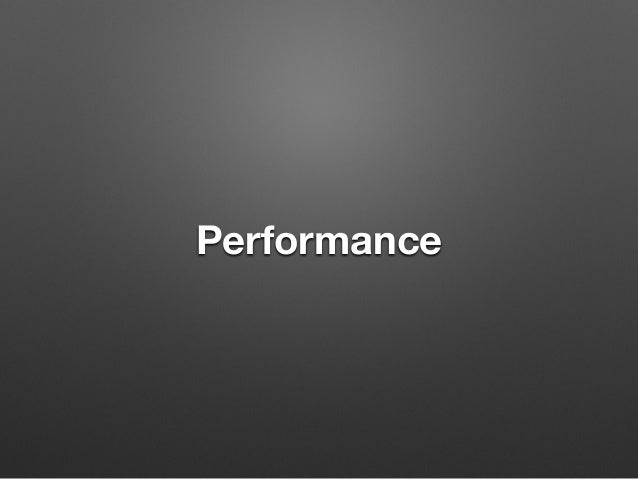

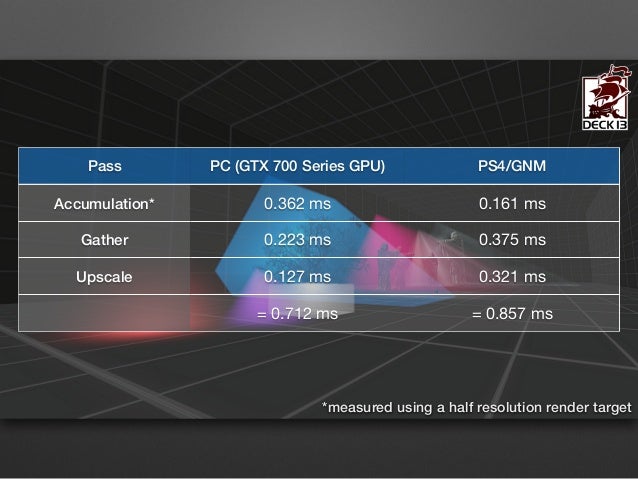

Performance
Pass PC (GTX 700 Series GPU) PS4/GNM
Accumulation* 0.362 ms 0.161 ms
Gather 0.223 ms 0.375 ms
Upscale 0.127 ms 0.321 ms
= ...
Results

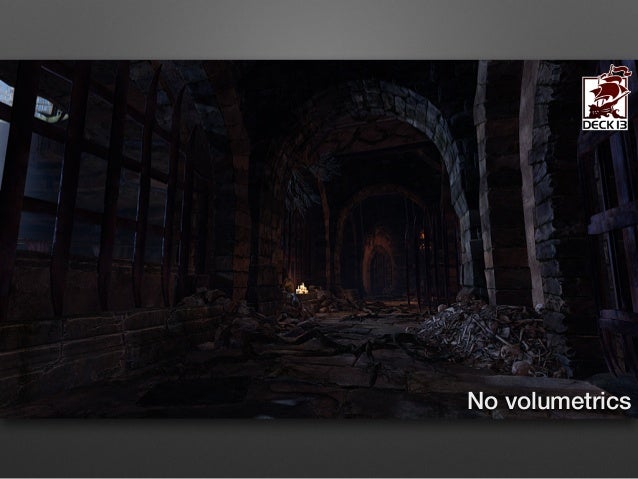

No volumetrics

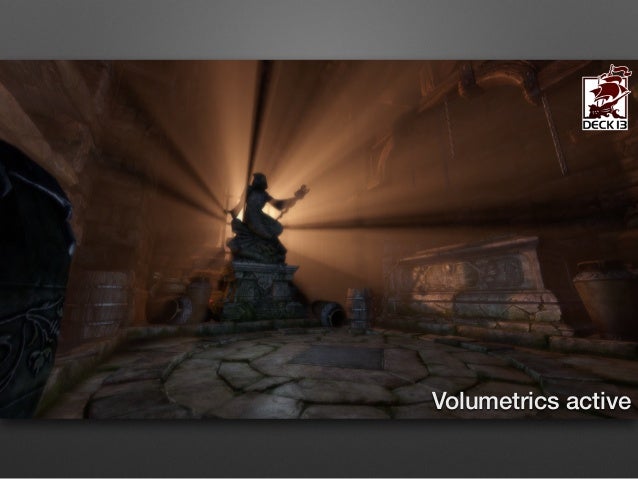

Volumetrics active
No volumetrics
Volumetrics active

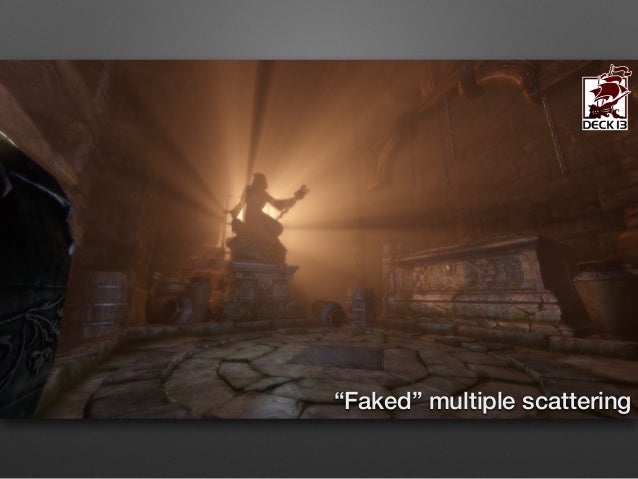

“Faked” multiple scattering
Thanks for listening! :)
Questions?
Contact
• Benjamin Glatzel <bglatzel@deck13.com>
• @begla
• http://www.deck13.com
References
• [1] Volumetric Light Scattering as a Post-Process - http://
http.developer.nvidia.com/GPUGems3/gpugems3_ch13....
Bonus Slides
½-Resolution accumulation buffer
¼-Resolution accumulation buffer
static const float gauss_filter_weights[] = {!
0.14446445, 0.13543542, 0.11153505, 0.08055309, 0.05087564, 0.02798160, 0.0...
float4 ps_upsample ( VERTEX_OUTPUT f_in ) : SV_Target!
{!
[...]!
!
// Better choose something relative to the far clip dis...
Volumetric Lighting for Many Lights in Lords of the Fallen
Volumetric Lighting for Many Lights in Lords of the Fallen
Volumetric Lighting for Many Lights in Lords of the Fallen
Volumetric Lighting for Many Lights in Lords of the Fallen
Volumetric Lighting for Many Lights in Lords of the Fallen
Volumetric Lighting for Many Lights in Lords of the Fallen
Prochain SlideShare
Chargement dans…5
×

Volumetric Lighting for Many Lights in Lords of the Fallen

17 349 vues

Publié le

In this session I’m going to give you an in-depth insight into the design and the implementation of the volumetric lighting system we’ve developed for ‘Lords of the Fallen’. The system allows the simulation of countless volumetric lighting effects in parallel while still being a feasible solution on next-gen consoles.

This presentation was held at the Digital Dragons 2014 conference.

Videos shown during the talk are available here: http://bglatzel.movingblocks.net/publications
