openFrameworks
- 1.
- 2.

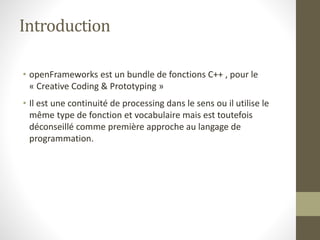

- 3. Introduction • openFrameworks estun bundle de fonctions C++ , pour le « Creative Coding & Prototyping » • Il est une continuité de processing dans le sens ou il utilise le même type de fonction et vocabulaire mais est toutefois déconseillé comme première approche au langage de programmation.

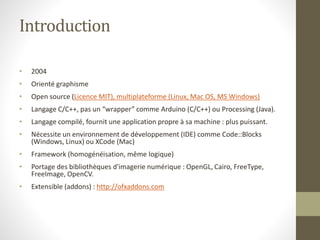

- 4. Introduction • 2004 • Orientégraphisme • Open source (Licence MIT), multiplateforme (Linux, Mac OS, MS Windows) • Langage C/C++, pas un “wrapper” comme Arduino (C/C++) ou Processing (Java). • Langage compilé, fournit une application propre à sa machine : plus puissant. • Nécessite un environnement de développement (IDE) comme Code::Blocks (Windows, Linux) ou XCode (Mac) • Framework (homogénéisation, même logique) • Portage des bibliothèques d'imagerie numérique : OpenGL, Cairo, FreeType, FreeImage, OpenCV. • Extensible (addons) : http://ofxaddons.com

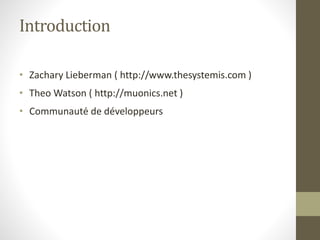

- 5. Introduction • Zachary Lieberman( http://www.thesystemis.com ) • Theo Watson ( http://muonics.net ) • Communauté de développeurs
- 6.
- 7.

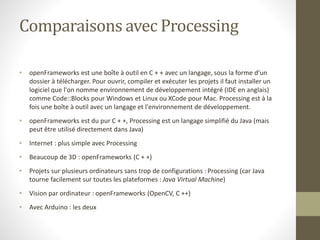

- 8. Comparaisons avec Processing •openFrameworks est une boîte à outil en C + + avec un langage, sous la forme d'un dossier à télécharger. Pour ouvrir, compiler et exécuter les projets il faut installer un logiciel que l'on nomme environnement de développement intégré (IDE en anglais) comme Code::Blocks pour Windows et Linux ou XCode pour Mac. Processing est à la fois une boîte à outil avec un langage et l'environnement de développement. • openFrameworks est du pur C + +, Processing est un langage simplifié du Java (mais peut être utilisé directement dans Java) • Internet : plus simple avec Processing • Beaucoup de 3D : openFrameworks (C + +) • Projets sur plusieurs ordinateurs sans trop de configurations : Processing (car Java tourne facilement sur toutes les plateformes : Java Virtual Machine) • Vision par ordinateur : openFrameworks (OpenCV, C ++) • Avec Arduino : les deux
- 9.

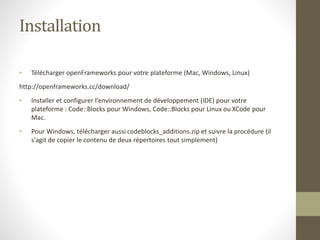

- 10. Installation • Télécharger openFrameworkspour votre plateforme (Mac, Windows, Linux) http://openframeworks.cc/download/ • Installer et configurer l'environnement de développement (IDE) pour votre plateforme : Code::Blocks pour Windows, Code::Blocks pour Linux ou XCode pour Mac. • Pour Windows, télécharger aussi codeblocks_additions.zip et suivre la procédure (il s'agit de copier le contenu de deux répertoires tout simplement)

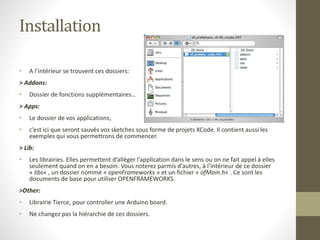

- 11. Installation • A l’intérieurse trouvent ces dossiers: > Addons: • Dossier de fonctions supplémentaires… > Apps: • Le dossier de vos applications, • c’est ici que seront sauvés vos sketches sous forme de projets XCode. Il contient aussi les exemples qui vous permettrons de commencer. > Lib: • Les librairies. Elles permettent d’alléger l’application dans le sens ou on ne fait appel à elles seulement quand on en a besoin. Vous noterez parmis d’autres, à l’intérieur de ce dossier « libs« , un dossier nommé « openFrameworks » et un fichier « ofMain.h« . Ce sont les documents de base pour utiliser OPENFRAMEWORKS. >Other: • Librairie Tierce, pour controller une Arduino board. • Ne changez pas la hiérarchie de ces dossiers.

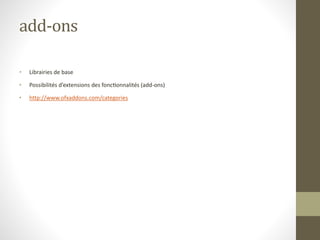

- 12. add-ons • Librairies debase • Possibilités d’extensions des fonctionnalités (add-ons) • http://www.ofxaddons.com/categories

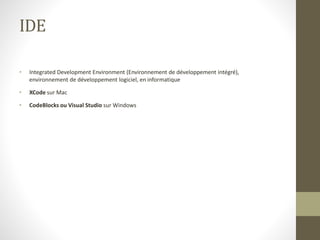

- 13. IDE • Integrated DevelopmentEnvironment (Environnement de développement intégré), environnement de développement logiciel, en informatique • XCode sur Mac • CodeBlocks ou Visual Studio sur Windows

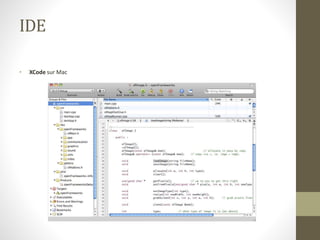

- 14.

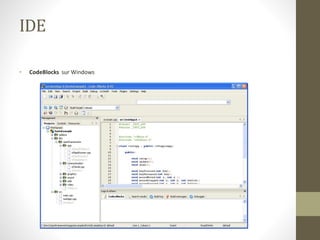

- 15. IDE • CodeBlocks surWindows

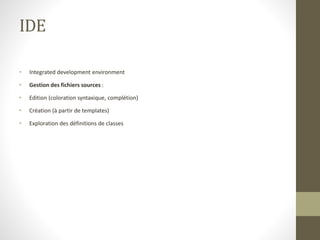

- 16. IDE • Integrated developmentenvironment • Gestion des fichiers sources : • Edition (coloration syntaxique, complétion) • Création (à partir de templates) • Exploration des définitions de classes

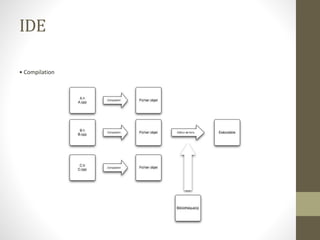

- 17. IDE • Compilation “traduction” desfichiers sources en code machine. • Editions de liens liens avec les librairies externes, regroupement des fichiers compilé en un seul fichier (binary). Cela peut-être une librairie dynamique, statique ou bien un exécutable.
- 18.

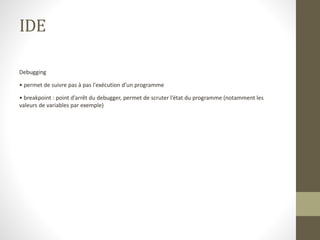

- 19. IDE Debugging • permet desuivre pas à pas l'exécution d’un programme • breakpoint : point d’arrêt du debugger, permet de scruter l’état du programme (notamment les valeurs de variables par exemple)

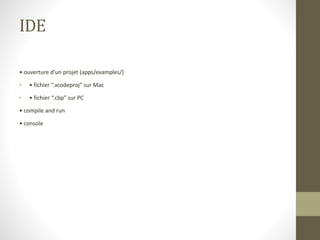

- 20. IDE • ouverture d’unprojet (apps/examples/) • • fichier “.xcodeproj” sur Mac • • fichier “.cbp” sur PC • compile and run • console

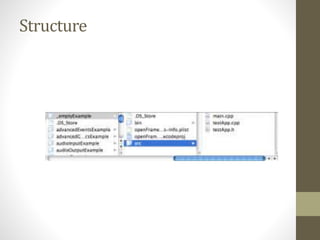

- 21.

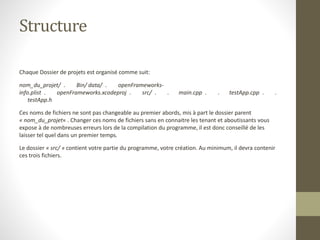

- 22. Structure Chaque Dossier deprojets est organisé comme suit: nom_du_projet/ . Bin/ data/ . openFrameworks- info.plist . openFrameworks.xcodeproj . src/ . . main.cpp . . testApp.cpp . . testApp.h Ces noms de fichiers ne sont pas changeable au premier abords, mis à part le dossier parent « nom_du_projet« . Changer ces noms de fichiers sans en connaitre les tenant et aboutissants vous expose à de nombreuses erreurs lors de la compilation du programme, il est donc conseillé de les laisser tel quel dans un premier temps. Le dossier « src/ » contient votre partie du programme, votre création. Au minimum, il devra contenir ces trois fichiers.

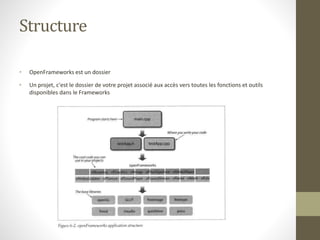

- 23. Structure • OpenFrameworks estun dossier • Un projet, c'est le dossier de votre projet associé aux accès vers toutes les fonctions et outils disponibles dans le Frameworks

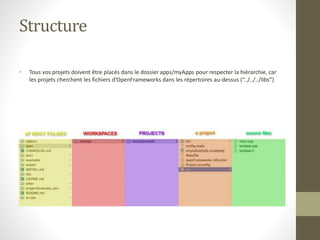

- 24. Structure • Tous vosprojets doivent être placés dans le dossier apps/myApps pour respecter la hiérarchie, car les projets cherchent les fichiers d'OpenFrameworks dans les répertoires au-dessus (“../../../libs”)

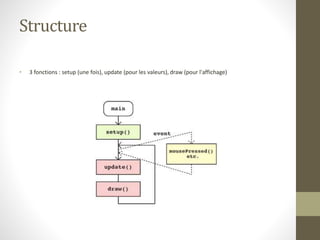

- 25. Structure • 3 fonctions: setup (une fois), update (pour les valeurs), draw (pour l'affichage)

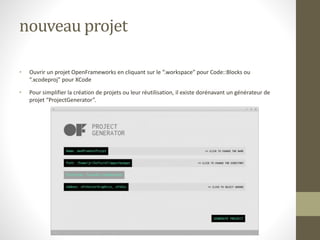

- 26. nouveau projet • Ouvrirun projet OpenFrameworks en cliquant sur le “.workspace” pour Code::Blocks ou “.xcodeproj” pour XCode • Pour simplifier la création de projets ou leur réutilisation, il existe dorénavant un générateur de projet “ProjectGenerator”.

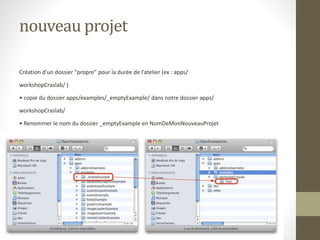

- 27. nouveau projet Création d’undossier “propre” pour la durée de l’atelier (ex : apps/ workshopCraslab/ ) • copie du dossier apps/examples/_emptyExample/ dans notre dossier apps/ workshopCraslab/ • Renommer le nom du dossier _emptyExample en NomDeMonNouveauProjet

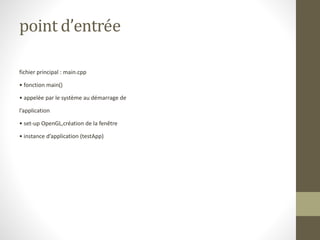

- 28. point d’entrée fichier principal: main.cpp • fonction main() • appelée par le système au démarrage de l’application • set-up OpenGL,création de la fenêtre • instance d’application (testApp)

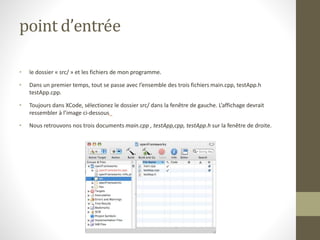

- 29. point d’entrée • ledossier « src/ » et les fichiers de mon programme. • Dans un premier temps, tout se passe avec l’ensemble des trois fichiers main.cpp, testApp.h testApp.cpp. • Toujours dans XCode, sélectionez le dossier src/ dans la fenêtre de gauche. L’affichage devrait ressembler à l’image ci-dessous • Nous retrouvons nos trois documents main.cpp , testApp,cpp, testApp.h sur la fenêtre de droite.
- 30. point d’entrée • main.cpp: Fichierprincipal du projet, il n’est pour autant pas le plus rempli: La balise #include indique quel(s) fichiers sont à charger lors de la compilation… le compilateur « charge* » donc 3 fichiers d’en-tête (« header » indiqué par la terimaison .h) dont deux font partie de OPENFRAMEWORKS (facilement recconaissable par le préfixe of) Il « charge* » aussi l’entête de notre programme: TestApp.h *charger l’entête: la manoeuvre de compliation c++ est à vrai dire plus compliquée mais ceci est une introduction. #include "ofMain.h" #include "testApp.h" #include "ofAppGlutWindow.h" int main( ).

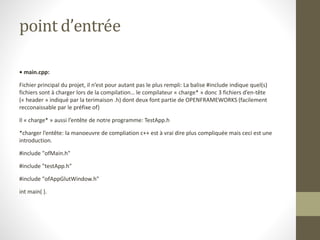

- 31. point d’entrée • main.cpp: Fichierprincipal du projet, il n’est pour autant pas le plus rempli: La balise #include indique quel(s) fichiers sont à charger lors de la compilation… le compilateur « charge* » donc 3 fichiers d’en-tête (« header » indiqué par la terimaison .h) dont deux font partie de OPENFRAMEWORKS (facilement recconaissable par le préfixe of) Il « charge* » aussi l’entête de notre programme: TestApp.h *charger l’entête: la manoeuvre de compliation c++ est à vrai dire plus compliquée mais ceci est une introduction. #include "ofMain.h" #include "testApp.h" #include "ofAppGlutWindow.h" int main( ).

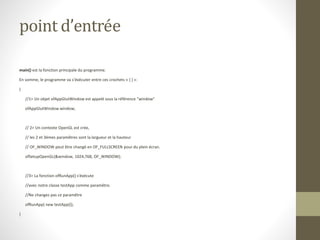

- 32. point d’entrée main() estla fonction principale du programme. En somme, le programme va s’éxécuter entre ces crochets « { } »: { //1> Un objet ofAppGlutWindow est appelé sous la référence "window" ofAppGlutWindow window; // 2> Un contexte OpenGL est crée, // les 2 et 3èmes paramêtres sont la largueur et la hauteur // OF_WINDOW peut être changé en OF_FULLSCREEN pour du plein écran. ofSetupOpenGL(&window, 1024,768, OF_WINDOW); //3> La fonction ofRunApp() s'éxécute //avec notre classe testApp comme paramêtre. //Ne changez pas ce paramêtre ofRunApp( new testApp()); }

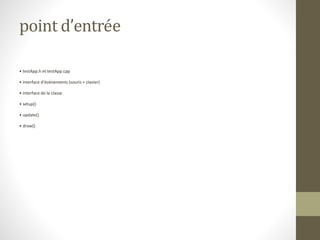

- 33. point d’entrée • testApp.het testApp.cpp • interface d’évènements (souris + clavier) • interface de la classe • setup() • update() • draw()

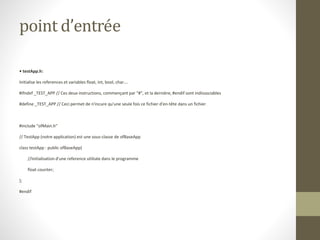

- 34. point d’entrée • testApp.h: Initialiseles references et variables float, int, bool, char…. #ifndef _TEST_APP // Ces deux instructions, commençant par "#", et la dernière, #endif sont indissociables #define _TEST_APP // Ceci permet de n'incure qu'une seule fois ce fichier d'en-tête dans un fichier #include "ofMain.h" // TestApp (notre application) est une sous-classe de ofBaseApp class testApp : public ofBaseApp{ //Initialisation d'une reference utilisée dans le programme float counter; }; #endif

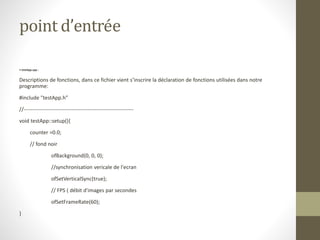

- 35. point d’entrée • testApp.cpp: Descriptions de fonctions, dans ce fichier vient s’inscrire la déclaration de fonctions utilisées dans notre programme: #include "testApp.h" //-------------------------------------------------------------- void testApp::setup(){ counter =0.0; // fond noir ofBackground(0, 0, 0); //synchronisation vericale de l'ecran ofSetVerticalSync(true); // FPS ( débit d'images par secondes ofSetFrameRate(60); }

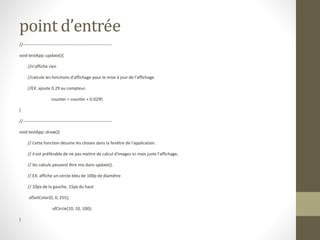

- 36. point d’entrée //-------------------------------------------------------------- void testApp::update(){ //n'afficherien //calcule les fonctions d'affichage pour le mise à jour de l'affichage //EX: ajoute 0.29 au compteur. counter = counter + 0.029f; } //-------------------------------------------------------------- void testApp::draw(){ // Cette fonction dessine les choses dans la fenêtre de l'application. // il est préférable de ne pas mettre de calcul d'images ici mais juste l'affichage, // les calculs peuvent être mis dans update(). // EX: affiche un cercle bleu de 100p de diamêtre // 10px de la gauche, 15px du haut ofSetColor(0, 0, 255); ofCircle(10, 10, 100); }

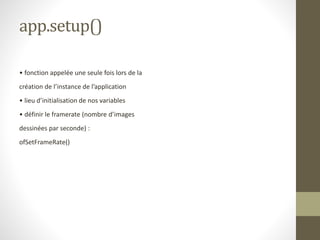

- 37. app.setup() • fonction appeléeune seule fois lors de la création de l’instance de l’application • lieu d’initialisation de nos variables • définir le framerate (nombre d’images dessinées par seconde) : ofSetFrameRate()

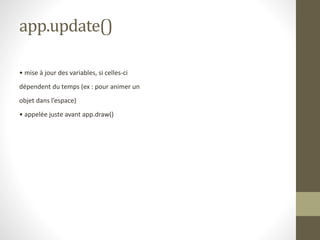

- 38. app.update() • mise àjour des variables, si celles-ci dépendent du temps (ex : pour animer un objet dans l’espace) • appelée juste avant app.draw()

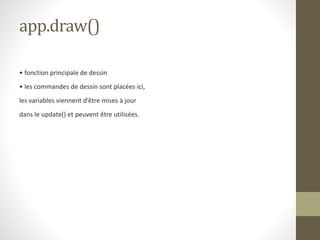

- 39. app.draw() • fonction principalede dessin • les commandes de dessin sont placées ici, les variables viennent d’être mises à jour dans le update() et peuvent être utilisées.

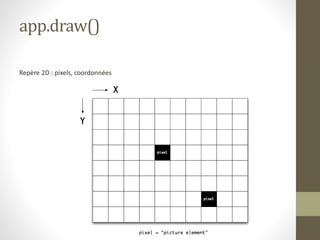

- 40. app.draw() Repère 2D :pixels, coordonnées
- 41. app.draw() Repère 2D :pixels, coordonnées
- 42.
- 43.

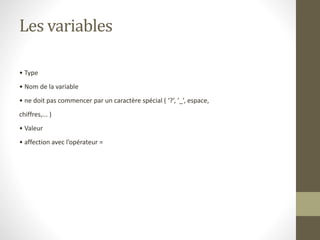

- 44. Les variables • Type •Nom de la variable • ne doit pas commencer par un caractère spécial ( ‘?’, ’_’, espace, chiffres,... ) • Valeur • affection avec l’opérateur =
- 45. Les variables • Typedes variables de base • int, boolean,float,char • Librairie standard • std::string (ou string)
- 46.
- 47.
- 48.
- 49.

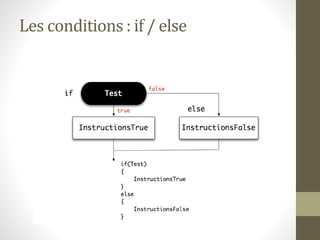

- 50. Les conditions :if / else
- 51.
- 52. Classe : déclaration •“public” accessibilité des membres depuis d’autres instances classes. • “private” accessibilité des membres seulement depuis des instances de la classe. • “protected” accessibilité des membres seulement depuis des instances de la classe.
- 53.

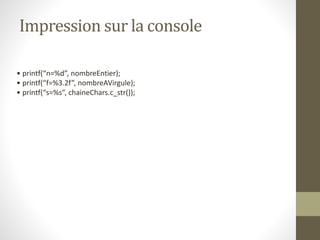

- 54. Impression sur laconsole • printf(“n=%d”, nombreEntier); • printf(“f=%3.2f”, nombreAVirgule); • printf(“s=%s”, chaineChars.c_str());
- 55.
