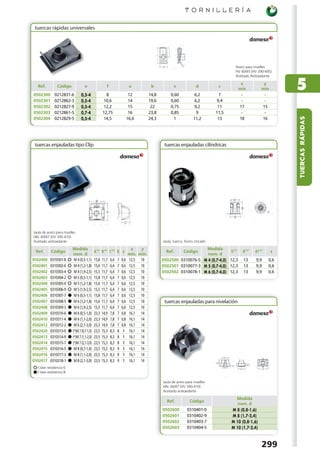

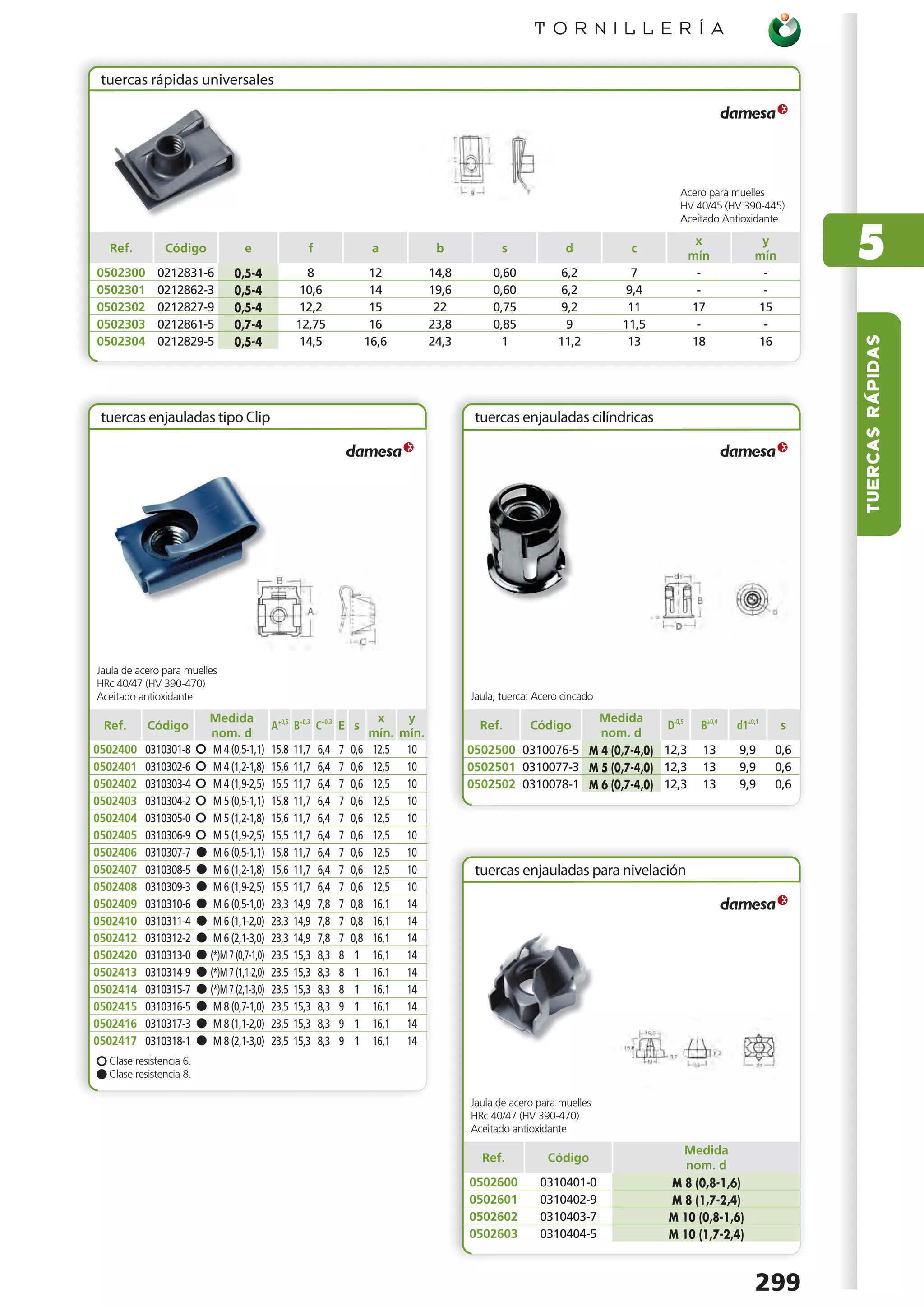

Page0299
- 1. T O R N I L L E R Í A
tuercas rápidas universales
Acero para muelles
HV 40/45 (HV 390-445)
Aceitado Antioxidante
Ref.
0502300
Código
0212831-6
e
0,5-4 8
f a
12
b
14,8
s
0,60
d
6,2
c
7
x
mín
-
y
mín
-
5
0502301 0212862-3 0,5-4 10,6 14 19,6 0,60 6,2 9,4 - -
0502302 0212827-9 0,5-4 12,2 15 22 0,75 9,2 11 17 15
0502303 0212861-5 0,7-4 12,75 16 23,8 0,85 9 11,5 - -
0502304 0212829-5 0,5-4 14,5 16,6 24,3 1 11,2 13 18 16
TUERCAS RÁPIDAS
tuercas enjauladas tipo Clip tuercas enjauladas cilíndricas
Jaula de acero para muelles
HRc 40/47 (HV 390-470)
Aceitado antioxidante Jaula, tuerca: Acero cincado
Medida x y Medida
Ref. Código A+0,5 B+0,3 C+0,3 E s Ref. Código D-0,5 B±0,4 d1±0,1 s
nom. d mín. mín. nom. d
0502400 0310301-8 M 4 (0,5-1,1) 15,8 11,7 6,4 7 0,6 12,5 10 0502500 0310076-5 M 4 (0,7-4,0) 12,3 13 9,9 0,6
0502401 0310302-6 M 4 (1,2-1,8) 15,6 11,7 6,4 7 0,6 12,5 10 0502501 0310077-3 M 5 (0,7-4,0) 12,3 13 9,9 0,6
0502402 0310303-4 M 4 (1,9-2,5) 15,5 11,7 6,4 7 0,6 12,5 10 0502502 0310078-1 M 6 (0,7-4,0) 12,3 13 9,9 0,6
0502403 0310304-2 M 5 (0,5-1,1) 15,8 11,7 6,4 7 0,6 12,5 10
0502404 0310305-0 M 5 (1,2-1,8) 15,6 11,7 6,4 7 0,6 12,5 10
0502405 0310306-9 M 5 (1,9-2,5) 15,5 11,7 6,4 7 0,6 12,5 10
0502406 0310307-7 M 6 (0,5-1,1) 15,8 11,7 6,4 7 0,6 12,5 10
0502407 0310308-5 M 6 (1,2-1,8) 15,6 11,7 6,4 7 0,6 12,5 10 tuercas enjauladas para nivelación
0502408 0310309-3 M 6 (1,9-2,5) 15,5 11,7 6,4 7 0,6 12,5 10
0502409 0310310-6 M 6 (0,5-1,0) 23,3 14,9 7,8 7 0,8 16,1 14
0502410 0310311-4 M 6 (1,1-2,0) 23,3 14,9 7,8 7 0,8 16,1 14
0502412 0310312-2 M 6 (2,1-3,0) 23,3 14,9 7,8 7 0,8 16,1 14
0502420 0310313-0 (*)M 7 (0,7-1,0) 23,5 15,3 8,3 8 1 16,1 14
0502413 0310314-9 (*)M 7 (1,1-2,0) 23,5 15,3 8,3 8 1 16,1 14
0502414 0310315-7 (*)M 7 (2,1-3,0) 23,5 15,3 8,3 8 1 16,1 14
0502415 0310316-5 M 8 (0,7-1,0) 23,5 15,3 8,3 9 1 16,1 14
0502416 0310317-3 M 8 (1,1-2,0) 23,5 15,3 8,3 9 1 16,1 14
0502417 0310318-1 M 8 (2,1-3,0) 23,5 15,3 8,3 9 1 16,1 14
Clase resistencia 6.
Clase resistencia 8.
Jaula de acero para muelles
HRc 40/47 (HV 390-470)
Aceitado antioxidante
Medida
Ref. Código
nom. d
0502600 0310401-0 M 8 (0,8-1,6)
0502601 0310402-9 M 8 (1,7-2,4)
0502602 0310403-7 M 10 (0,8-1,6)
0502603 0310404-5 M 10 (1,7-2,4)
299
