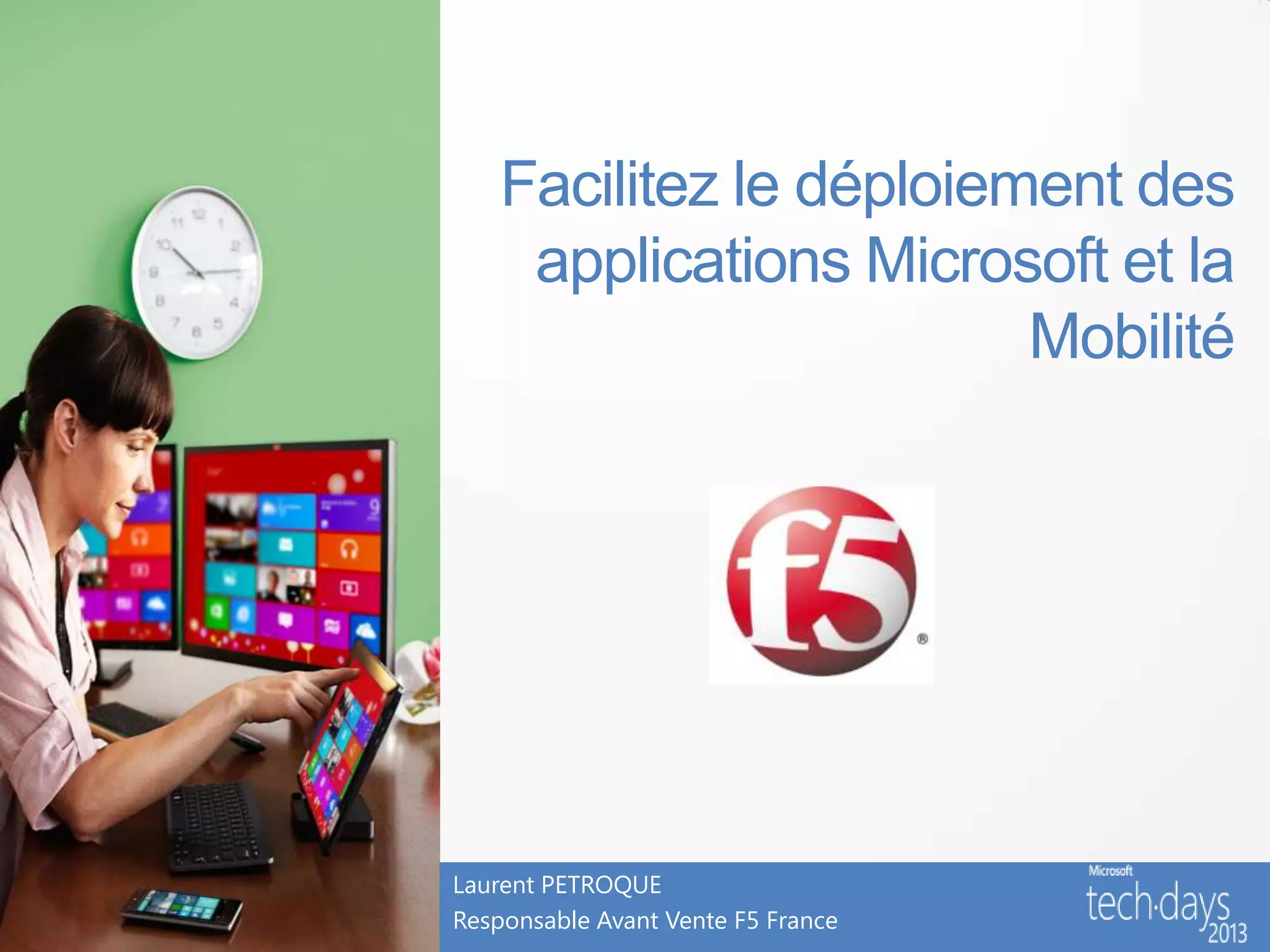

- 1. Facilitez le déploiement des applications Microsoft et la Mobilité Laurent PETROQUE Responsable Avant Vente F5 France

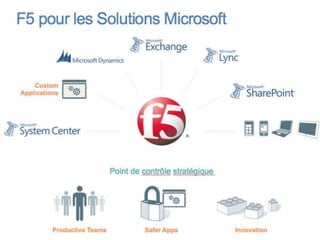

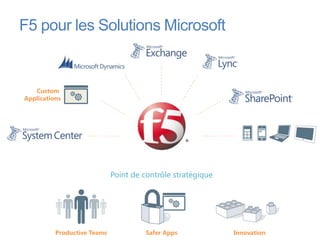

- 2. F5 pour les Solutions Microsoft Custom Applications Point de contrôle stratégique Productive Teams Safer Apps Innovation

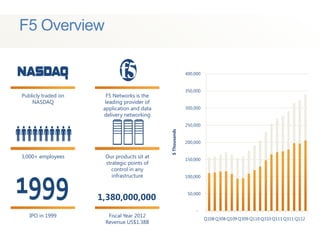

- 3. F5 Overview 400,000 350,000 Publicly traded on F5 Networks is the NASDAQ leading provider of application and data 300,000 delivery networking 250,000 $ Thousands 200,000 3,000+ employees Our products sit at 150,000 strategic points of control in any infrastructure 100,000 1,380,000,000 50,000 - IPO in 1999 Fiscal Year 2012 Q108 Q308 Q109 Q309 Q110 Q310 Q111 Q311 Q112 Revenue US$1.38B
- 4. F5 MAKES THE CONNECTED WORLD RUN BETTER 8 of the Fortune 10 companies • 44 of the Fortune 50 companies • 18 of the top 20 U.S. co destinations • 16 of the top 20 cloud infrastructure and web hosting companies

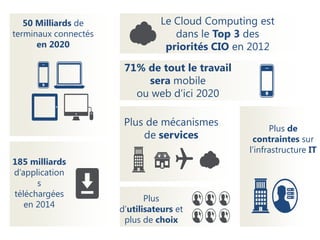

- 5. 50 Milliards de Le Cloud Computing est terminaux connectés dans le Top 3 des en 2020 priorités CIO en 2012 71% de tout le travail sera mobile ou web d’ici 2020 Plus de mécanismes Plus de de services contraintes sur l’infrastructure IT 185 milliards d’application s téléchargées Plus en 2014 d’utilisateurs et plus de choix
- 6. Application Delivery Networking Users Data Center Application Delivery Network Anytime, Anywhere, Application Any Device Services

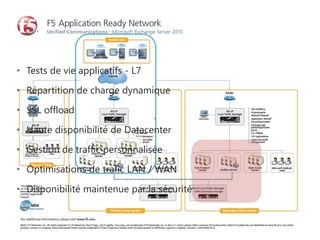

- 8. High availability for Microsoft Exchange Availability, scalability and security • Tests de vie applicatifs - L7 • Répartition de charge dynamique • SSL offload • Haute disponibilité de Datacenter • Gestion de traffic personnalisée • Optimisations de trafic LAN / WAN • Disponibilité maintenue par la sécurité

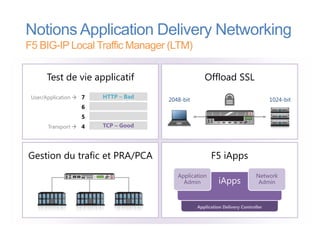

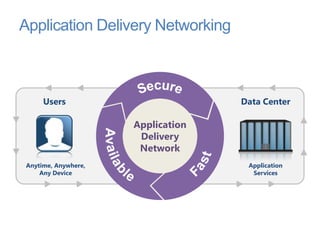

- 9. Notions Application Delivery Networking F5 BIG-IP Local Traffic Manager (LTM) Test de vie applicatif Offload SSL User/Application 7 HTTP – Bad 2048-bit 1024-bit 6 5 Transport 4 TCP – Good Gestion du trafic et PRA/PCA F5 iApps Application Network Admin iApps Admin Application Delivery Controller

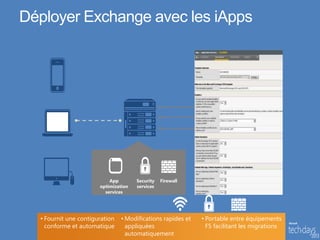

- 10. Déployer Exchange avec les iApps App Security Firewall optimization services services • Fournit une contiguration • Modifications rapides et Remot Portable entre équipements • SSL APP conforme et automatique appliquées e F5 facilitant les VPN Firewalmigrations automatiquement Access l

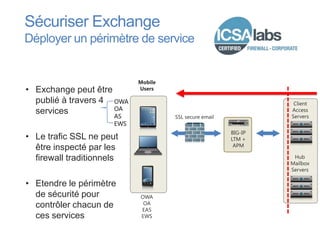

- 11. Sécuriser Exchange Déployer un périmètre de service • Exchange peut être publié à travers 4 OWA services OA AS EWS • Le trafic SSL ne peut être inspecté par les firewall traditionnels • Etendre le périmètre de sécurité pour contrôler chacun de ces services
- 12. Pré-Authentifier les accès Exchange F5 BIG-IP Access Policy Manager (APM) Authentification Conformité Endpoint Autorisation Accès Vérifier que l’utilisateur Authentification multi- Vérifier les droits de Single sign-on est référencé facteurs l’utilisateur

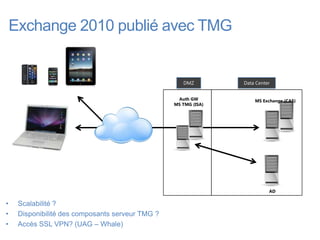

- 13. Exchange 2010 publié avec TMG DMZ Data Center Auth GW MS Exchange (CAS) MS TMG (ISA) AD • Scalabilité ? • Disponibilité des composants serveur TMG ? • Accès SSL VPN? (UAG – Whale)

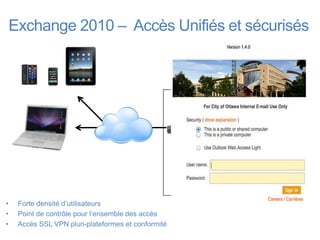

- 14. Exchange 2010 – Accès Unifiés et sécurisés DMZ Data Center MS Exchange (CAS) LTM/APM AD • Forte densité d’utilisateurs • Point de contrôle pour l’ensemble des accès • Accès SSL VPN pluri-plateformes et conformité

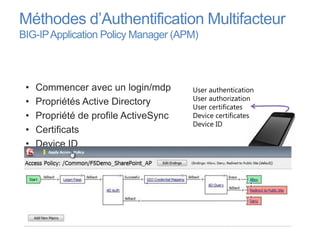

- 15. Méthodes d’Authentification Multifacteur BIG-IP Application Policy Manager (APM) • Commencer avec un login/mdp User authentication User authorization • Propriétés Active Directory User certificates • Propriété de profile ActiveSync Device certificates Device ID • Certificats • Device ID Réaliser une politique qui renforce plusieurs méthodes en une passe Android WP 7 iPhone

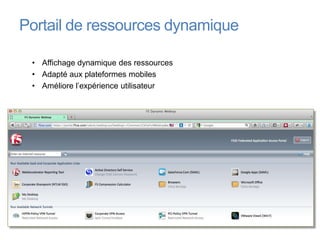

- 16. Portail de ressources dynamique • Affichage dynamique des ressources • Adapté aux plateformes mobiles • Améliore l’expérience utilisateur

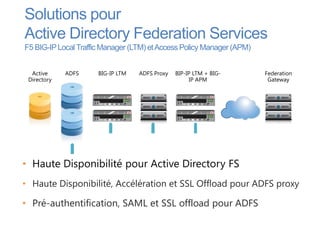

- 17. Solutions pour Active Directory Federation Services F5 BIG-IP Local Traffic Manager (LTM) et Access Policy Manager (APM) Active ADFS BIG-IP LTM ADFS Proxy BIP-IP LTM + BIG- Federation Directory IP APM Gateway • Haute Disponibilité pour Active Directory FS • Haute Disponibilité, Accélération et SSL Offload pour ADFS proxy • Pré-authentification, SAML et SSL offload pour ADFS
- 18. Architecture SAML d’une application publique Un utilisateur fait une requête pour une ressource supportant SAML University App DMZ IdP End User BIG-IP as SP Partner School Public/Private Research IdP App End User Partner School IdP End User Partner School
- 19. Architecture SAML d’une application publique APM identifie l’IdP associé à l’utilisateur et le redirige vers celui ci University App DMZ IdP End User BIG-IP as SP Partner School Public/Private Research IdP App End User Partner School IdP End User Partner School

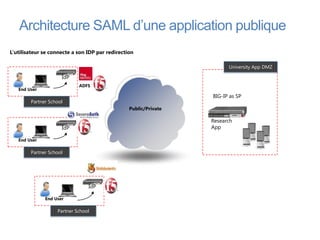

- 20. Architecture SAML d’une application publique L’utilisateur se connecte a son IDP par redirection University App DMZ IdP ADFS End User BIG-IP as SP Partner School Public/Private Research IdP App End User Partner School IdP End User Partner School

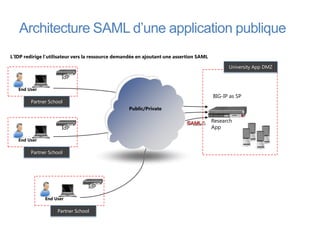

- 21. Architecture SAML d’une application publique L’IDP redirige l’utilisateur vers la ressource demandée en ajoutant une assertion SAML University App DMZ IdP End User BIG-IP as SP Partner School Public/Private Research IdP App End User Partner School IdP End User Partner School

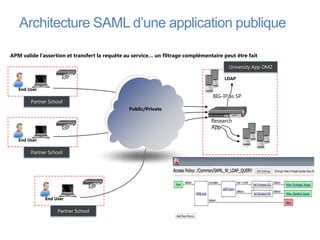

- 22. Architecture SAML d’une application publique APM valide l’assertion et transfert la requête au service… un filtrage complémentaire peut être fait University App DMZ IdP LDAP End User BIG-IP as SP Partner School Public/Private Research IdP App End User Partner School IdP End User Partner School
- 23. Solution adaptée aux déploiement hybrides avec Microsoft Office 365

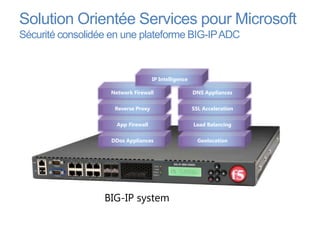

- 24. Solution Orientée Services pour Microsoft Sécurité consolidée en une plateforme BIG-IP ADC IP Intelligence Network Firewall DNS Appliances Reverse Proxy SSL Acceleration App Firewall Load Balancing DDos Appliances Geolocation BIG-IP system
- 25. “ F5 BIG-IP products enabled us to improve security for an existing application instead of having to invest time and money into developing a new, more secure application.” Application Manager, Global 500 Media and Entertainment Company TechValidate 0C0-126-2FB

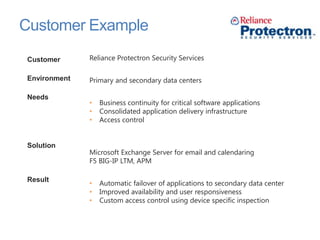

- 26. Customer Example Customer Reliance Protectron Security Services Environment Primary and secondary data centers Needs • Business continuity for critical software applications • Consolidated application delivery infrastructure • Access control Solution Microsoft Exchange Server for email and calendaring F5 BIG-IP LTM, APM Result • Automatic failover of applications to secondary data center • Improved availability and user responsiveness • Custom access control using device specific inspection

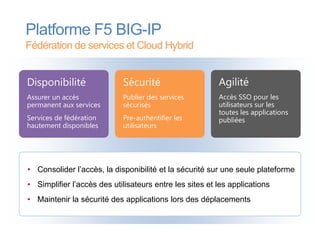

- 27. Platforme F5 BIG-IP Fédération de services et Cloud Hybrid Disponibilité Sécurité Agilité Assurer un accès Publier des services Accès SSO pour les permanent aux services sécurisés utilisateurs sur les toutes les applications Services de fédération Pre-authentifier les publiées hautement disponibles utilisateurs • Consolider l’accès, la disponibilité et la sécurité sur une seule plateforme • Simplifier l’accès des utilisateurs entre les sites et les applications • Maintenir la sécurité des applications lors des déplacements
- 29. Et la sécurité des applications Microsoft en HTTP? Mr HAIR VAIX Responsable Sécurité

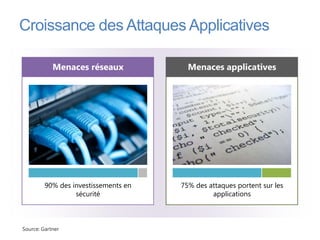

- 30. Croissance des Attaques Applicatives Menaces réseaux Menaces applicatives 90% des investissements en 75% des attaques portent sur les sécurité applications Source: Gartner

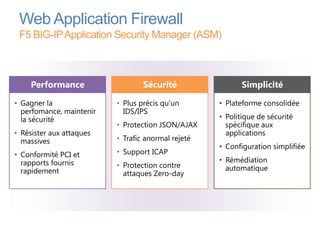

- 31. Web Application Firewall F5 BIG-IP Application Security Manager (ASM) Performance Sécurité Simplicité • Gagner la • Plus précis qu’un • Plateforme consolidée perfomance, maintenir IDS/IPS la sécurité • Politique de sécurité • Protection JSON/AJAX spécifique aux • Résister aux attaques applications massives • Trafic anormal rejeté • Configuration simplifiée • Conformité PCI et • Support ICAP rapports fournis • Rémédiation • Protection contre automatique rapidement attaques Zero-day

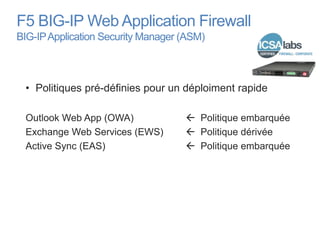

- 32. F5 BIG-IP Web Application Firewall BIG-IP Application Security Manager (ASM) • Politiques pré-définies pour un déploiment rapide Outlook Web App (OWA) Politique embarquée Exchange Web Services (EWS) Politique dérivée Active Sync (EAS) Politique embarquée

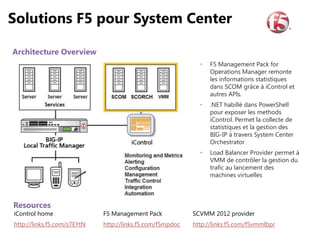

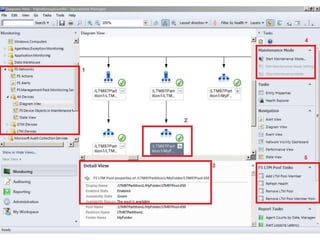

- 33. Solutions F5 pour System Center Architecture Overview • F5 Management Pack for Operations Manager remonte les informations statistiques dans SCOM grâce à iControl et autres APIs. • .NET habillé dans PowerShell pour exposer les methods iControl. Permet la collecte de statistiques et la gestion des BIG-IP à travers System Center Orchestrator • Load Balancer Provider permet à VMM de contrôler la gestion du trafic au lancement des machines virtuelles Resources iControl home F5 Management Pack SCVMM 2012 provider http://links.f5.com/s7EYtN http://links.f5.com/f5mpdoc http://links.f5.com/f5vmmlbpr

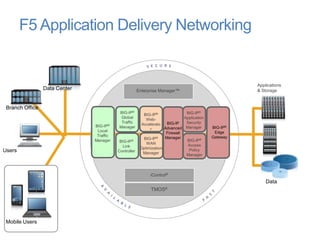

- 35. F5 Application Delivery Networking Applications Data Center Enterprise Manager™ & Storage Branch Office BIG-IP® BIG-IP® BIG-IP® Global Application Web- Traffic BIG-IP Security BIG-IP® Accelerato Manager Advanced Manager BIG-IP® Local r Firewall Edge Traffic Gateway BIG-IP® Manager Manager BIG-IP® BIG-IP® WAN Access Link Optimization Users Controller Manager Policy Manager iControl® Data TMOS® Mobile Users

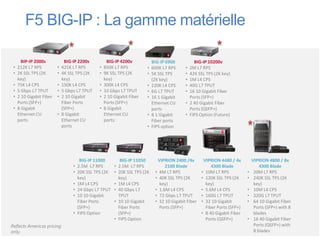

- 36. F5 BIG-IP : La gamme matérielle BIP-IP 2000s BIG-IP 2200s BIG-IP 4200v BIG-IP 6900 BIG-IP 10200v • 212K L7 RPS • 425K L7 RPS • 850K L7 RPS • 600K L7 RPS • 2M L7 RPS • 2K SSL TPS (2K • 4K SSL TPS (2K • 9K SSL TPS (2K • 5K SSL TPS • 42K SSL TPS (2K key) key) key) key) (2K key) • 1M L4 CPS • 75K L4 CPS • 150K L4 CPS • 300K L4 CPS • 220K L4 CPS • 40G L7 TPUT • 5 Gbps L7 TPUT • 5 Gbps L7 TPUT • 10 Gbps L7 TPUT • 6G L7 TPUT • 16 10 Gigabit Fiber • 2 10 Gigabit Fiber • 2 10 Gigabit • 2 10 Gigabit Fiber • 16 1 Gigabit Ports (SFP+) Ports (SFP+) Fiber Ports Ports (SFP+) Ethernet CU • 2 40 Gigabit Fiber • 8 Gigabit (SFP+) • 8 Gigabit ports Ports (QSFP+) Ethernet CU • 8 Gigabit Ethernet CU • 8 1 Gigabit • FIPS Option (Future) ports Ethernet CU ports: Fiber ports ports • FIPS option BIG-IP 11000 BIG-IP 11050 VIPRION 2400 /4x VIPRION 4480 / 4x VIPRION 4800 / 8x • 2.5M L7 RPS • 2.5M L7 RPS 2100 Blade 4300 Blade 4300 Blade • 20K SSL TPS (2K • 20K SSL TPS (2K • 4M L7 RPS • 10M L7 RPS • 20M L7 RPS key) key) • 40K SSL TPS (2K • 120K SSL TPS (2K • 240K SSL TPS (2K • 1M L4 CPS • 1M L4 CPS key) key) key) • 24 Gbps L7 TPUT • 40 Gbps L7 • 1.6M L4 CPS • 5.6M L4 CPS • 10M L4 CPS • 10 10 Gigabit TPUT • 72 Gbps L7 TPUT • 160G L7 TPUT • 320G L7 TPUT Fiber Ports • 10 10 Gigabit • 32 10 Gigabit Fiber • 32 10 Gigabit • 64 10 Gigabit Fiber (SFP+) Fiber Ports Ports (SFP+) Fiber Ports (SFP+) Ports (SFP+) with 8 • FIPS Option (SFP+) • 8 40 Gigabit Fiber blades • FIPS Option Ports (QSFP+) • 16 40 Gigabit Fiber Reflects Americas pricing Ports (QSFP+) with only. 8 blades

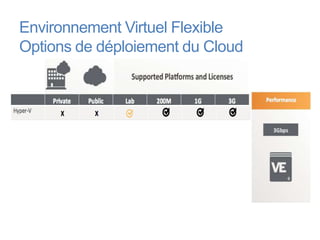

- 37. Environnement Virtuel Flexible Options de déploiement du Cloud
- 38. DEMONSTRATION
- 39. Conclusion Améliorer l’évolutivité des applications MS Sécuriser sans pénaliser l’experience utilisateur Assurer un service continue

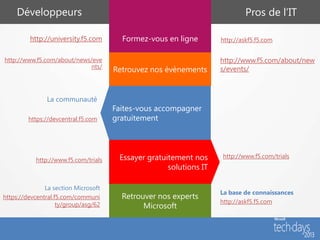

- 40. Développeurs Pros de l’IT http://university.f5.com Formez-vous en ligne http://askf5.f5.com http://www.f5.com/about/news/eve http://www.f5.com/about/new nts/ Retrouvez nos évènements s/events/ La communauté Faites-vous accompagner https://devcentral.f5.com gratuitement http://www.f5.com/trials Essayer gratuitement nos http://www.f5.com/trials solutions IT La section Microsoft La base de connaissances https://devcentral.f5.com/communi Retrouver nos experts ty/group/asg/62 http://askf5.f5.com Microsoft
