présentation plateforme Kubernetes (K8S)
- 1.
- 2.
- 3. Que signifie «Kubernetes » ? Greek for “pilot” or “Helmsman of a ship” Image Source

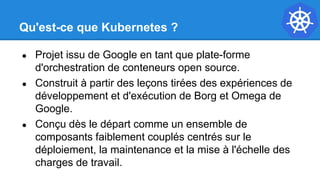

- 4. Qu'est-ce que Kubernetes? ● Projet issu de Google en tant que plate-forme d'orchestration de conteneurs open source. ● Construit à partir des leçons tirées des expériences de développement et d'exécution de Borg et Omega de Google. ● Conçu dès le départ comme un ensemble de composants faiblement couplés centrés sur le déploiement, la maintenance et la mise à l'échelle des charges de travail.

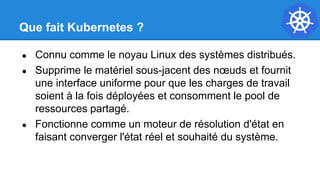

- 5. Que fait Kubernetes? ● Connu comme le noyau Linux des systèmes distribués. ● Supprime le matériel sous-jacent des nœuds et fournit une interface uniforme pour que les charges de travail soient à la fois déployées et consomment le pool de ressources partagé. ● Fonctionne comme un moteur de résolution d'état en faisant converger l'état réel et souhaité du système.

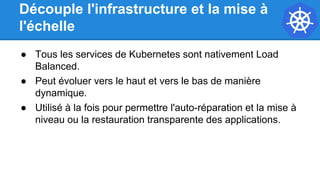

- 6. Découple l'infrastructure etla mise à l'échelle ● Tous les services de Kubernetes sont nativement Load Balanced. ● Peut évoluer vers le haut et vers le bas de manière dynamique. ● Utilisé à la fois pour permettre l'auto-réparation et la mise à niveau ou la restauration transparente des applications.

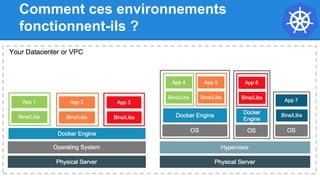

- 7.
- 8.

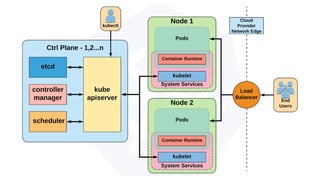

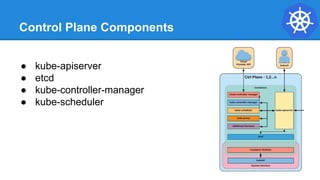

- 10.
- 11. Control Plane Components ●kube-apiserver ● etcd ● kube-controller-manager ● kube-scheduler

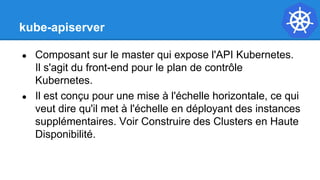

- 12. kube-apiserver ● Composant surle master qui expose l'API Kubernetes. Il s'agit du front-end pour le plan de contrôle Kubernetes. ● Il est conçu pour une mise à l'échelle horizontale, ce qui veut dire qu'il met à l'échelle en déployant des instances supplémentaires. Voir Construire des Clusters en Haute Disponibilité.

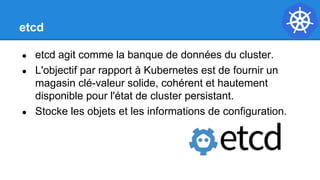

- 13. etcd ● etcd agitcomme la banque de données du cluster. ● L'objectif par rapport à Kubernetes est de fournir un magasin clé-valeur solide, cohérent et hautement disponible pour l'état de cluster persistant. ● Stocke les objets et les informations de configuration.

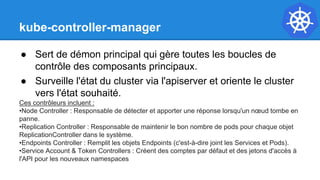

- 14. kube-controller-manager ● Sert dedémon principal qui gère toutes les boucles de contrôle des composants principaux. ● Surveille l'état du cluster via l'apiserver et oriente le cluster vers l'état souhaité. Ces contrôleurs incluent : •Node Controller : Responsable de détecter et apporter une réponse lorsqu'un nœud tombe en panne. •Replication Controller : Responsable de maintenir le bon nombre de pods pour chaque objet ReplicationController dans le système. •Endpoints Controller : Remplit les objets Endpoints (c'est-à-dire joint les Services et Pods). •Service Account & Token Controllers : Créent des comptes par défaut et des jetons d'accès à l'API pour les nouveaux namespaces

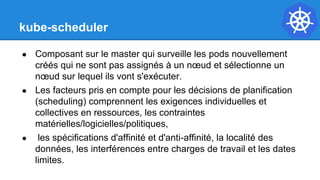

- 15. kube-scheduler ● Composant surle master qui surveille les pods nouvellement créés qui ne sont pas assignés à un nœud et sélectionne un nœud sur lequel ils vont s'exécuter. ● Les facteurs pris en compte pour les décisions de planification (scheduling) comprennent les exigences individuelles et collectives en ressources, les contraintes matérielles/logicielles/politiques, ● les spécifications d'affinité et d'anti-affinité, la localité des données, les interférences entre charges de travail et les dates limites.
- 16.

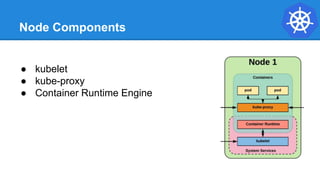

- 17. Node Components ● kubelet ●kube-proxy ● Container Runtime Engine

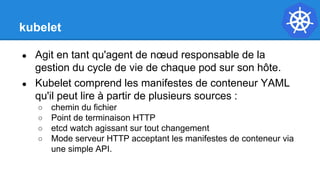

- 18. kubelet ● Agit entant qu'agent de nœud responsable de la gestion du cycle de vie de chaque pod sur son hôte. ● Kubelet comprend les manifestes de conteneur YAML qu'il peut lire à partir de plusieurs sources : ○ chemin du fichier ○ Point de terminaison HTTP ○ etcd watch agissant sur tout changement ○ Mode serveur HTTP acceptant les manifestes de conteneur via une simple API.

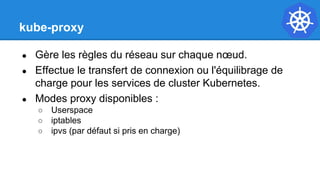

- 19. kube-proxy ● Gère lesrègles du réseau sur chaque nœud. ● Effectue le transfert de connexion ou l'équilibrage de charge pour les services de cluster Kubernetes. ● Modes proxy disponibles : ○ Userspace ○ iptables ○ ipvs (par défaut si pris en charge)

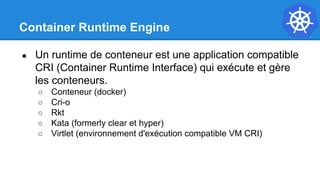

- 20. Container Runtime Engine ●Un runtime de conteneur est une application compatible CRI (Container Runtime Interface) qui exécute et gère les conteneurs. ○ Conteneur (docker) ○ Cri-o ○ Rkt ○ Kata (formerly clear et hyper) ○ Virtlet (environnement d'exécution compatible VM CRI)

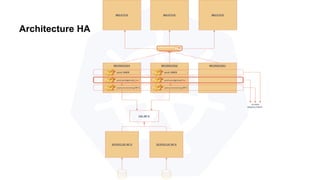

- 22. Aperçus Architecture au seinde HUAWEI
- 23.
- 24.

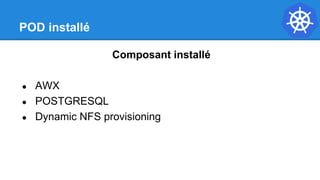

- 25. POD installé Composant installé ●AWX ● POSTGRESQL ● Dynamic NFS provisioning
- 26.

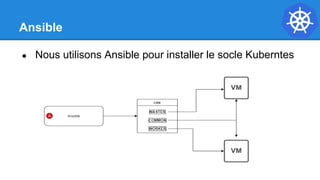

- 27. Ansible ● Nous utilisonsAnsible pour installer le socle Kuberntes

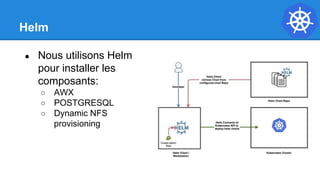

- 28. Helm ● Nous utilisonsHelm pour installer les composants: ○ AWX ○ POSTGRESQL ○ Dynamic NFS provisioning
