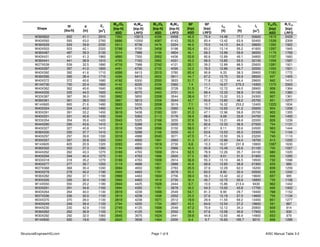

AISC

1. Shape
W
[lbs/ft]
d
[in]
Zx
[in3
]
Mpx/Ωb
[kip-ft]
ASD
ΦbMpx
[kip-ft]
LRFD
Mrx/Ωb
[kip-ft]
ASD
ΦbMrx
[kip-ft]
LRFD
BF
[kip]
ASD
BF
[kip]
LRFD
Lp
[ft]
Lr
[ft]
Ix
[in4
]
Vnx/Ωv
[kip]
ASD
ΦvVnx
[kip]
LRFD
W36X652 652 41.1 2910 7260 10913 4296 6458 46.9 70.4 14.48 77.7 50600 1619 2429
W40X593 593 43.0 2760 6886 10350 4087 6143 55.5 83.4 13.42 63.9 50400 1539 2309
W36X529 529 39.8 2330 5813 8738 3476 5224 46.6 70.0 14.13 64.3 39600 1282 1922
W40X503 503 42.1 2320 5788 8700 3458 5198 55.4 83.2 13.14 55.2 41600 1297 1945
W36X487 487 39.3 2130 5314 7988 3196 4804 46.1 69.3 13.99 59.9 36000 1179 1769
W40X431 431 41.3 1960 4890 7350 2952 4436 53.6 80.6 12.89 49.1 34800 1107 1660
W36X441 441 38.9 1910 4765 7163 2882 4331 45.2 68.0 13.85 55.5 32100 1058 1587
W27X539 539 32.5 1890 4716 7088 2742 4121 26.1 39.2 12.89 88.5 25600 1281 1921
W40X397 397 41.0 1800 4491 6750 2725 4095 52.2 78.5 12.86 46.7 32000 1000 1501
W40X392 392 41.6 1710 4266 6413 2515 3780 60.4 90.8 9.33 38.3 29900 1181 1772
W36X395 395 38.4 1710 4266 6413 2602 3911 44.7 67.2 13.70 50.9 28500 937 1405
W40X372 372 40.6 1680 4192 6300 2550 3833 51.7 77.8 12.72 44.4 29600 942 1413
W14X730 730 22.4 1660 4142 6225 2236 3360 7.4 11.1 16.57 275.3 14300 1375 2063
W40X362 362 40.6 1640 4092 6150 2480 3728 51.5 77.4 12.72 44.0 28900 909 1364
W44X335 335 44.0 1620 4042 6075 2463 3701 59.5 89.4 12.33 38.9 31100 906 1360
W33X387 387 36.0 1560 3892 5850 2358 3544 38.4 57.7 13.32 53.3 24300 907 1361
W36X361 361 38.0 1550 3867 5813 2358 3544 43.7 65.6 13.60 48.2 25700 851 1277
W14X665 665 21.6 1480 3693 5550 2008 3019 7.1 10.7 16.32 253.2 12400 1223 1834
W40X324 324 40.2 1460 3643 5475 2236 3360 49.2 74.0 12.65 41.2 25600 804 1206
W30X391 391 33.2 1450 3618 5438 2183 3281 31.3 47.1 12.96 58.8 20700 903 1355
W40X331 331 40.8 1430 3568 5363 2113 3176 58.9 88.6 9.08 33.8 24700 996 1493
W33X354 354 35.6 1420 3543 5325 2166 3255 37.6 56.5 13.21 49.8 22000 826 1239
W44X290 290 43.6 1410 3518 5288 2166 3255 55.0 82.6 12.33 36.9 27000 754 1131
W40X327 327 40.8 1410 3518 5288 2096 3150 58.0 87.1 9.11 33.6 24500 963 1444
W36X330 330 37.7 1410 3518 5288 2166 3255 42.3 63.6 13.53 45.5 23300 769 1154
W40X297 297 39.8 1330 3318 4988 2043 3071 47.5 71.4 12.50 39.3 23200 740 1110
W30X357 357 32.8 1320 3293 4950 1991 2993 31.3 47.1 12.86 54.4 18700 813 1220
W14X605 605 20.9 1320 3293 4950 1816 2730 6.8 10.3 16.07 231.8 10800 1087 1630
W36X302 302 37.3 1280 3194 4800 1974 2966 40.5 60.8 13.49 43.6 21100 705 1057
W44X262 262 43.3 1270 3169 4763 1939 2914 52.5 78.9 12.26 35.7 24100 680 1020
W40X294 294 40.4 1270 3169 4763 1886 2835 57.0 85.7 9.01 31.5 21900 856 1285
W33X318 318 35.2 1270 3169 4763 1939 2914 36.8 55.3 13.10 46.5 19500 732 1098
W40X277 277 39.7 1250 3119 4688 1921 2888 45.8 68.8 12.65 38.8 21900 659 989
W27X368 368 30.4 1240 3094 4650 1851 2783 25.0 37.6 12.29 62.0 16200 839 1259
W40X278 278 40.2 1190 2969 4463 1781 2678 55.2 83.0 8.90 30.4 20500 828 1242
W36X282 282 37.1 1190 2969 4463 1834 2756 39.4 59.3 13.42 42.2 19600 657 985
W30X326 326 32.4 1190 2969 4463 1816 2730 30.4 45.7 12.72 50.6 16800 739 1108
W14X550 550 20.2 1180 2944 4425 1626 2444 6.7 10.0 15.86 213.4 9430 962 1442
W33X291 291 34.8 1160 2894 4350 1781 2678 36.2 54.3 13.00 43.8 17700 668 1002
W40X264 264 40.0 1130 2819 4238 1696 2549 54.1 81.3 8.90 29.7 19400 768 1152
W27X336 336 30.0 1130 2819 4238 1698 2552 25.0 37.6 12.19 57.0 14600 756 1134
W24X370 370 28.0 1130 2819 4238 1671 2512 19.9 29.9 11.55 69.2 13400 851 1277
W40X249 249 39.4 1120 2794 4200 1734 2607 43.0 64.6 12.54 37.2 19600 591 887
W44X230 230 42.9 1100 2745 4125 1696 2549 47.2 70.9 12.12 34.3 20800 609 914
W36X262 262 36.9 1100 2745 4125 1698 2552 38.3 57.6 13.28 40.6 17900 620 930
W30X292 292 32.0 1060 2645 3975 1624 2441 29.8 44.8 12.65 46.9 14900 653 979
W14X500 500 19.6 1050 2620 3938 1464 2200 6.4 9.7 15.65 195.7 8210 858 1288
StructuralEngineerHQ.com Page 1 of 6 AISC Manual Table 3-2

2. Shape
W
[lbs/ft]
d
[in]
Zx
[in3
]
Mpx/Ωb
[kip-ft]
ASD
ΦbMpx
[kip-ft]
LRFD
Mrx/Ωb
[kip-ft]
ASD
ΦbMrx
[kip-ft]
LRFD
BF
[kip]
ASD
BF
[kip]
LRFD
Lp
[ft]
Lr
[ft]
Ix
[in4
]
Vnx/Ωv
[kip]
ASD
ΦvVnx
[kip]
LRFD
W36X256 256 37.4 1040 2595 3900 1563 2349 46.7 70.1 9.36 31.5 16800 718 1077
W33X263 263 34.5 1040 2595 3900 1605 2412 34.5 51.9 12.93 41.6 15900 600 900
W36X247 247 36.7 1030 2570 3863 1595 2397 37.2 55.9 13.21 39.4 16700 587 881
W27X307 307 29.6 1030 2570 3863 1549 2328 25.2 37.9 12.04 52.6 13100 687 1030
W24X335 335 27.5 1020 2545 3825 1509 2268 20.0 30.1 11.41 63.1 11900 759 1139
W40X235 235 39.7 1010 2520 3788 1528 2297 50.9 76.6 8.97 28.4 17400 659 989
W40X215 215 39.0 964 2405 3615 1500 2255 39.1 58.8 12.50 35.7 16700 507 761
W36X231 231 36.5 963 2403 3611 1492 2242 35.8 53.8 13.10 38.6 15600 555 832
W30X261 261 31.6 943 2353 3536 1448 2176 29.3 44.0 12.47 43.4 13100 588 882
W33X241 241 34.2 940 2345 3525 1451 2181 33.2 49.8 12.79 39.7 14200 568 852
W36X232 232 37.1 936 2335 3510 1413 2124 44.5 66.9 9.25 30.0 15000 646 968
W27X281 281 29.3 936 2335 3510 1422 2137 24.6 37.0 11.97 49.1 11900 621 932
W14X455 455 19.0 936 2335 3510 1320 1985 6.2 9.3 15.47 179.2 7190 768 1151
W24X306 306 27.1 922 2300 3458 1378 2071 19.8 29.8 11.30 57.9 10700 683 1024
W40X211 211 39.4 906 2260 3398 1373 2063 48.5 72.9 8.87 27.2 15500 591 887
W40X199 199 38.7 869 2168 3259 1345 2021 37.2 55.8 12.19 34.3 14900 503 755
W14X426 426 18.7 869 2168 3259 1233 1853 6.1 9.2 15.33 168.4 6600 703 1055
W33X221 221 33.9 857 2138 3214 1326 1992 31.8 47.9 12.68 38.2 12900 525 788
W27X258 258 29.0 852 2126 3195 1301 1956 24.2 36.4 11.87 45.9 10800 568 853
W30X235 235 31.3 847 2113 3176 1306 1964 28.2 42.4 12.40 41.0 11700 520 779
W24X279 279 26.7 835 2083 3131 1254 1885 19.6 29.5 11.20 53.4 9600 619 929
W36X210 210 36.7 833 2078 3124 1256 1887 42.4 63.8 9.11 28.5 13200 609 914
W14X398 398 18.3 801 1999 3004 1146 1722 6.0 9.0 15.22 157.8 6000 648 972
W40X183 183 39.0 774 1931 2903 1179 1772 44.1 66.3 8.80 25.8 13200 507 761
W33X201 201 33.7 773 1929 2899 1198 1801 30.2 45.4 12.57 36.7 11600 482 723
W27X235 235 28.7 772 1926 2895 1182 1777 23.9 35.9 11.76 42.9 9700 522 784
W36X194 194 36.5 767 1914 2876 1160 1743 40.7 61.1 9.04 27.6 12100 558 838
W18X311 311 22.3 754 1881 2828 1090 1638 11.2 16.8 10.42 81.1 6970 678 1017
W30X211 211 30.9 751 1874 2816 1161 1746 27.0 40.6 12.33 38.7 10300 479 718
W24X250 250 26.3 744 1856 2790 1125 1691 19.4 29.2 11.09 48.7 8490 547 821
W14X370 370 17.9 736 1836 2760 1060 1593 5.8 8.8 15.08 148.0 5440 594 891
W36X182 182 36.3 718 1791 2693 1088 1635 39.2 58.8 9.01 27.0 11300 526 790
W27X217 217 28.4 711 1774 2666 1095 1646 23.3 35.1 11.73 40.8 8910 471 707
W40X167 167 38.6 693 1729 2599 1048 1575 41.7 62.7 8.48 24.8 11600 502 753
W18X283 283 21.9 676 1687 2535 987 1483 11.0 16.6 10.28 73.6 6170 613 920
W30X191 191 30.7 675 1684 2531 1048 1575 25.8 38.8 12.22 36.8 9200 436 654
W24X229 229 26.0 675 1684 2531 1027 1544 19.2 28.9 10.99 45.2 7650 499 749
W14X342 342 17.5 672 1677 2520 975 1465 5.7 8.6 14.98 137.8 4900 539 809
W36X170 170 36.2 668 1667 2505 1015 1525 37.4 56.2 8.94 26.4 10500 492 738
W27X194 194 28.1 631 1574 2366 976 1467 22.5 33.8 11.62 38.2 7860 422 632
W33X169 169 33.8 629 1569 2359 959 1441 34.2 51.4 8.83 26.7 9290 453 679
W36X160 160 36.0 624 1557 2340 947 1423 35.9 53.9 8.83 25.8 9760 468 702
W18X258 258 21.5 611 1524 2291 898 1349 11.0 16.5 10.17 67.3 5510 550 826
W30X173 173 30.4 607 1514 2276 945 1420 24.4 36.6 12.08 35.5 8230 398 597
W24X207 207 25.7 606 1512 2273 927 1394 19.0 28.5 10.88 41.7 6820 447 671
W14X311 311 17.1 603 1504 2261 884 1328 5.6 8.4 14.84 125.4 4330 482 723
W12X336 336 16.8 603 1504 2261 844 1268 4.8 7.2 12.26 150.3 4060 598 897
StructuralEngineerHQ.com Page 2 of 6 AISC Manual Table 3-2

3. Shape
W
[lbs/ft]
d
[in]
Zx
[in3
]
Mpx/Ωb
[kip-ft]
ASD
ΦbMpx
[kip-ft]
LRFD
Mrx/Ωb
[kip-ft]
ASD
ΦbMrx
[kip-ft]
LRFD
BF
[kip]
ASD
BF
[kip]
LRFD
Lp
[ft]
Lr
[ft]
Ix
[in4
]
Vnx/Ωv
[kip]
ASD
ΦvVnx
[kip]
LRFD
W40X149 149 38.2 598 1492 2243 896 1347 38.5 57.9 8.09 23.6 9800 481 722
W36X150 150 35.9 581 1450 2179 880 1323 34.4 51.7 8.72 25.3 9040 449 673
W27X178 178 27.8 570 1422 2138 882 1326 21.7 32.6 11.48 36.4 7020 403 605
W33X152 152 33.5 559 1395 2096 851 1278 32.1 48.2 8.72 25.7 8160 425 638
W24X192 192 25.5 559 1395 2096 858 1289 18.6 28.0 10.84 39.7 6260 413 620
W18X234 234 21.1 549 1370 2059 814 1223 10.8 16.3 10.07 61.4 4900 490 734
W14X283 283 16.7 542 1352 2033 802 1205 5.5 8.3 14.73 114.4 3840 431 646
W12X305 305 16.3 537 1340 2014 760 1142 4.7 7.0 12.08 136.5 3550 531 797
W21X201 201 23.0 530 1322 1988 805 1210 14.6 21.9 10.67 46.2 5310 419 628
W27X161 161 27.6 515 1285 1931 800 1202 20.8 31.3 11.41 34.7 6310 364 546
W33X141 141 33.3 514 1282 1928 782 1176 30.5 45.8 8.58 25.0 7450 403 604
W24X176 176 25.2 511 1275 1916 786 1181 18.3 27.5 10.74 37.4 5680 378 567
W36X135 135 35.6 509 1270 1909 767 1152 31.8 47.7 8.41 24.3 7800 427 641
W30X148 148 30.7 500 1248 1875 761 1145 28.8 43.3 8.05 24.9 6680 399 599
W18X211 211 20.7 490 1223 1838 732 1100 10.7 16.1 9.96 55.7 4330 439 658
W14X257 257 16.4 487 1215 1826 725 1089 5.5 8.2 14.59 104.4 3400 387 581
W12X279 279 15.9 481 1200 1804 686 1032 4.5 6.8 11.94 125.7 3110 487 730
W21X182 182 22.7 476 1188 1785 728 1095 14.3 21.5 10.60 42.7 4730 377 565
W24X162 162 25.0 468 1168 1755 723 1087 17.8 26.7 10.77 35.8 5170 353 529
W33X130 130 33.1 467 1165 1751 709 1066 28.9 43.4 8.44 24.2 6710 384 576
W27X146 146 27.4 464 1158 1740 723 1087 19.7 29.6 11.30 33.3 5660 332 497
W18X192 192 20.4 442 1103 1658 664 998 10.7 16.1 9.85 51.0 3870 392 588
W30X132 132 30.3 437 1090 1639 664 998 26.9 40.5 7.95 23.8 5770 373 559
W14X233 233 16.0 436 1088 1635 655 984 5.4 8.1 14.48 95.0 3010 342 514
W21X166 166 22.5 432 1078 1620 664 998 14.1 21.2 10.56 39.9 4280 338 506
W12X252 252 15.4 428 1068 1605 617 927 4.4 6.6 11.80 114.2 2720 431 647
W24X146 146 24.7 418 1043 1568 648 974 17.1 25.8 10.63 33.7 4580 321 482
W33X118 118 32.9 415 1035 1556 627 942 26.8 40.3 8.19 23.4 5900 362 543
W30X124 124 30.2 408 1018 1530 620 932 25.9 38.9 7.88 23.2 5360 353 530
W18X175 175 20.0 398 993 1493 601 903 10.6 15.9 9.75 46.9 3450 356 534
W27X129 129 27.6 395 986 1481 603 906 23.3 35.0 7.81 24.2 4760 337 505
W14X211 211 15.7 390 973 1463 590 887 5.3 8.0 14.38 86.6 2660 308 462
W12X230 230 15.1 386 963 1448 561 843 4.3 6.5 11.69 104.7 2420 390 584
W30X116 116 30.0 378 943 1418 575 864 24.7 37.2 7.74 22.6 4930 339 509
W21X147 147 22.1 373 931 1399 575 864 13.7 20.7 10.42 36.3 3630 318 477
W24X131 131 24.5 370 923 1388 575 864 16.3 24.5 10.49 31.9 4020 296 445
W18X158 158 19.7 356 888 1335 541 814 10.5 15.7 9.68 42.8 3060 319 479
W14X193 193 15.5 355 886 1331 541 814 5.3 7.9 14.31 79.4 2400 276 414
W12X210 210 14.7 348 868 1305 510 767 4.3 6.4 11.59 95.8 2140 347 520
W30X108 108 29.8 346 863 1298 522 785 23.6 35.4 7.59 22.1 4470 325 487
W27X114 114 27.3 343 856 1286 522 785 21.6 32.5 7.70 23.1 4080 311 467
W21X132 132 21.8 333 831 1249 515 774 13.2 19.9 10.35 34.2 3220 283 425
W24X117 117 24.3 327 816 1226 508 764 15.3 23.0 10.38 30.4 3540 267 401
W18X143 143 19.5 322 803 1208 493 740 10.4 15.6 9.61 39.6 2750 285 427
W14X176 176 15.2 320 798 1200 491 738 5.2 7.8 14.20 73.2 2140 252 378
W30X99 99.0 29.7 312 778 1170 470 706 22.2 33.3 7.42 21.3 3990 309 463
W12X190 190 14.4 311 776 1166 459 690 4.2 6.3 11.48 87.3 1890 305 458
StructuralEngineerHQ.com Page 3 of 6 AISC Manual Table 3-2

4. Shape
W
[lbs/ft]
d
[in]
Zx
[in3
]
Mpx/Ωb
[kip-ft]
ASD
ΦbMpx
[kip-ft]
LRFD
Mrx/Ωb
[kip-ft]
ASD
ΦbMrx
[kip-ft]
LRFD
BF
[kip]
ASD
BF
[kip]
LRFD
Lp
[ft]
Lr
[ft]
Ix
[in4
]
Vnx/Ωv
[kip]
ASD
ΦvVnx
[kip]
LRFD
W21X122 122 21.7 307 766 1151 477 717 12.9 19.4 10.31 32.7 2960 260 391
W27X102 102 27.1 305 761 1144 466 701 20.1 30.2 7.59 22.3 3620 279 419
W18X130 130 19.3 290 724 1088 447 672 10.2 15.3 9.54 36.6 2460 259 388
W24X104 104 24.1 289 721 1084 451 677 14.3 21.5 10.28 29.2 3100 241 362
W14X159 159 15.0 287 716 1076 444 667 5.2 7.8 14.13 66.7 1900 224 335
W30X90 90.0 29.5 283 706 1061 428 643 20.6 30.9 7.38 20.9 3610 277 416
W24X103 103 24.5 280 699 1050 428 643 18.2 27.3 7.03 21.9 3000 270 404
W21X111 111 21.5 279 696 1046 435 654 12.4 18.7 10.24 31.2 2670 237 355
W27X94 94.0 26.9 278 694 1043 424 638 19.1 28.7 7.49 21.6 3270 264 395
W12X170 170 14.0 275 686 1031 410 617 4.1 6.2 11.37 78.5 1650 269 403
W18X119 119 19.0 262 654 983 403 606 10.1 15.2 9.50 34.3 2190 249 373
W14X145 145 14.8 260 649 975 405 609 5.1 7.7 14.06 61.7 1710 201 302
W24X94 94.0 24.3 254 634 953 388 583 17.3 26.0 6.99 21.2 2700 250 375
W21X101 101 21.4 253 631 949 396 596 11.8 17.8 10.21 30.1 2420 214 321
W27X84 84.0 26.7 244 609 915 372 559 17.6 26.5 7.31 20.8 2850 246 368
W12X152 152 13.7 243 606 911 365 549 4.1 6.1 11.27 70.6 1430 238 358
W14X132 132 14.7 234 584 878 365 549 5.1 7.7 13.28 55.8 1530 190 284
W18X106 106 18.7 230 574 863 356 536 9.7 14.6 9.40 31.8 1910 221 331
W24X84 84.0 24.1 224 559 840 342 515 16.1 24.3 6.89 20.3 2370 227 340
W21X93 93.0 21.6 221 551 829 335 504 14.6 21.9 6.50 21.3 2070 251 376
W12X136 136 13.4 214 534 803 325 488 4.0 6.0 11.16 63.2 1240 212 318
W14X120 120 14.5 212 529 795 332 499 5.1 7.7 13.21 51.9 1380 171 257
W18X97 97.0 18.6 211 526 791 328 494 9.4 14.2 9.36 30.4 1750 199 299
W24X76 76.0 23.9 200 499 750 307 462 15.1 22.7 6.78 19.5 2100 210 315
W16X100 100 17.0 198 494 743 306 459 7.9 11.9 8.87 32.8 1490 199 298
W21X83 83.0 21.4 196 489 735 299 449 13.9 20.8 6.46 20.2 1830 220 331
W14X109 109 14.3 192 479 720 302 454 5.0 7.5 13.18 48.5 1240 150 225
W18X86 86.0 18.4 186 464 698 290 436 9.0 13.6 9.29 28.6 1530 177 265
W12X120 120 13.1 186 464 698 285 428 3.9 5.9 11.06 56.5 1070 186 279
W24X68 68.0 23.7 177 442 664 269 404 14.1 21.2 6.61 18.9 1830 197 295
W16X89 89.0 16.8 175 437 656 271 407 7.8 11.7 8.80 30.2 1300 176 265
W14X99 99.0 14.2 173 432 649 274 412 4.9 7.4 13.10 45.3 1110 138 207
W21X73 73.0 21.2 172 429 645 264 396 12.9 19.3 6.39 19.2 1600 193 289
W12X106 106 12.9 164 409 615 253 381 3.9 5.9 10.99 50.7 933 157 236
W18X76 76.0 18.2 163 407 611 255 383 8.5 12.8 9.22 27.1 1330 155 232
W21X68 68.0 21.1 160 399 600 245 368 12.5 18.8 6.36 18.7 1480 181 272
W14X90 90.0 14.0 157 392 589 250 375 4.8 7.2 13.07 42.5 999 123 185
W24X62 62.0 23.7 153 382 574 229 344 16.0 24.0 4.87 14.4 1550 204 306
W16X77 77.0 16.5 150 374 563 234 352 7.3 11.0 8.72 27.8 1110 150 225
W12X96 96.0 12.7 147 367 551 229 344 3.9 5.8 10.91 46.7 833 140 210
W10X112 112 11.4 147 367 551 220 331 2.7 4.0 9.47 64.1 716 172 258
W18X71 71.0 18.5 146 364 548 222 333 10.5 15.7 6.00 19.6 1170 183 275
W21X62 62.0 21.0 144 359 540 222 333 11.6 17.4 6.25 18.1 1330 168 252
W14X82 82.0 14.3 139 347 521 215 323 5.4 8.1 8.76 33.2 881 146 219
W24X55 55.0 23.6 134 334 503 199 299 14.7 22.1 4.73 13.9 1350 186 280
W18X65 65.0 18.4 133 332 499 204 307 10.0 15.0 5.97 18.8 1070 166 248
W12X87 87.0 12.5 132 329 495 206 310 3.8 5.8 10.84 43.1 740 129 193
StructuralEngineerHQ.com Page 4 of 6 AISC Manual Table 3-2

5. Shape
W
[lbs/ft]
d
[in]
Zx
[in3
]
Mpx/Ωb
[kip-ft]
ASD
ΦbMpx
[kip-ft]
LRFD
Mrx/Ωb
[kip-ft]
ASD
ΦbMrx
[kip-ft]
LRFD
BF
[kip]
ASD
BF
[kip]
LRFD
Lp
[ft]
Lr
[ft]
Ix
[in4
]
Vnx/Ωv
[kip]
ASD
ΦvVnx
[kip]
LRFD
W16X67 67.0 16.3 130 324 488 204 307 6.9 10.4 8.69 26.1 954 129 193
W10X100 100 11.1 130 324 488 196 294 2.7 4.0 9.36 57.8 623 151 226
W21X57 57.0 21.1 129 322 484 194 291 13.4 20.1 4.77 14.3 1170 171 256
W21X55 55.0 20.8 126 314 473 192 289 10.8 16.3 6.11 17.4 1140 156 234
W14X74 74.0 14.2 126 314 473 196 294 5.3 8.0 8.76 31.0 795 128 192
W18X60 60.0 18.2 123 307 461 189 284 9.6 14.5 5.93 18.2 984 151 227
W12X79 79.0 12.4 119 297 446 187 281 3.8 5.7 10.77 39.9 662 117 175
W14X68 68.0 14.0 115 287 431 180 270 5.2 7.8 8.69 29.3 722 116 174
W10X88 88.0 10.8 113 282 424 172 259 2.6 3.9 9.29 51.2 534 131 196
W18X55 55.0 18.1 112 279 420 172 258 9.2 13.9 5.90 17.6 890 141 212
W21X50 50.0 20.8 110 274 413 165 248 12.2 18.3 4.59 13.6 984 158 237
W12X72 72.0 12.3 108 269 405 170 256 3.7 5.6 10.74 37.5 597 106 159
W21X48 48.0 20.6 107 267 401 162 244 9.8 14.7 5.86 16.5 959 144 216
W16X57 57.0 16.4 105 262 394 161 242 8.0 12.0 5.65 18.3 758 141 212
W14X61 61.0 13.9 102 254 383 161 242 5.0 7.5 8.65 27.5 640 104 156
W18X50 50.0 18.0 101 252 379 155 233 8.7 13.1 5.83 16.9 800 128 192
W10X77 77.0 10.6 97.6 244 366 150 225 2.6 3.9 9.18 45.3 455 112 169
W12X65 65.0 12.1 96.8 242 363 154 231 3.6 5.4 10.67 35.1 533 94 142
W21X44 44.0 20.7 95.4 238 358 143 214 11.2 16.8 4.45 13.0 843 145 217
W16X50 50.0 16.3 92.0 230 345 141 213 7.6 11.5 5.62 17.2 659 124 186
W18X46 46.0 18.1 90.7 226 340 138 207 9.7 14.6 4.56 13.7 712 130 195
W14X53 53.0 13.9 87.1 217 327 136 204 5.3 7.9 6.78 22.3 541 103 154
W12X58 58.0 12.2 86.4 216 324 136 205 3.8 5.7 8.87 29.8 475 88 132
W10X68 68.0 10.4 85.3 213 320 132 199 2.6 3.8 9.15 40.6 394 98 147
W16X45 45.0 16.1 82.3 205 309 127 191 7.2 10.8 5.55 16.5 586 111 167
W18X40 40.0 17.9 78.4 196 294 119 180 8.8 13.3 4.49 13.1 612 113 169
W14X48 48.0 13.8 78.4 196 294 123 184 5.1 7.6 6.75 21.1 484 94 141
W12X53 53.0 12.1 77.9 194 292 123 185 3.7 5.5 8.76 28.2 425 83 125
W10X60 60.0 10.2 74.6 186 280 116 175 2.5 3.8 9.08 36.6 341 86 129
W16X40 40.0 16.0 73.0 182 274 113 170 6.7 10.0 5.55 15.9 518 98 146
W12X50 50.0 12.2 71.9 179 270 112 169 4.0 6.0 6.92 23.8 391 90 135
W8X67 67.0 9.00 70.1 175 263 105 159 1.7 2.6 7.49 47.6 272 103 154
W14X43 43.0 13.7 69.6 174 261 109 164 4.8 7.2 6.68 20.0 428 84 125
W10X54 54.0 10.1 66.6 166 250 105 158 2.5 3.8 9.04 33.6 303 75 112
W18X35 35.0 17.7 66.5 166 249 101 151 8.1 12.2 4.31 12.3 510 106 159
W12X45 45.0 12.1 64.2 160 241 101 151 3.8 5.8 6.89 22.4 348 81 122
W16X36 36.0 15.9 64.0 160 240 99 148 6.2 9.3 5.37 15.2 448 94 141
W14X38 38.0 14.1 61.5 153 231 95 143 5.4 8.1 5.47 16.2 385 87 131
W10X49 49.0 10.0 60.4 151 227 95 143 2.4 3.7 8.97 31.6 272 68 102
W8X58 58.0 8.75 59.8 149 224 91 137 1.7 2.6 7.42 41.6 228 89 134
W12X40 40.0 11.9 57.0 142 214 90 135 3.7 5.5 6.85 21.1 307 70 105
W10X45 45.0 10.1 54.9 137 206 86 129 2.6 3.9 7.10 26.9 248 71 106
W14X34 34.0 14.0 54.6 136 205 85 128 5.1 7.6 5.40 15.6 340 80 120
W16X31 31.0 15.9 54.0 135 203 82 124 6.8 10.2 4.13 11.8 375 87 131
W12X35 35.0 12.5 51.2 128 192 80 120 4.3 6.5 5.44 16.6 285 75 113
W8X48 48.0 8.50 49.0 122 184 75 113 1.7 2.5 7.35 35.2 184 68 102
W14X30 30.0 13.8 47.3 118 177 73 110 4.7 7.0 5.26 14.9 291 75 112
StructuralEngineerHQ.com Page 5 of 6 AISC Manual Table 3-2

6. Shape
W
[lbs/ft]
d
[in]
Zx
[in3
]
Mpx/Ωb
[kip-ft]
ASD
ΦbMpx
[kip-ft]
LRFD
Mrx/Ωb
[kip-ft]
ASD
ΦbMrx
[kip-ft]
LRFD
BF
[kip]
ASD
BF
[kip]
LRFD
Lp
[ft]
Lr
[ft]
Ix
[in4
]
Vnx/Ωv
[kip]
ASD
ΦvVnx
[kip]
LRFD
W10X39 39.0 9.92 46.8 117 176 74 111 2.5 3.8 6.99 24.2 209 62 94
W16X26 26.0 15.7 44.2 110 166 67 101 6.0 9.0 3.96 11.2 301 79 118
W12X30 30.0 12.3 43.1 108 162 67 101 3.9 5.9 5.37 15.6 238 64 96
W14X26 26.0 13.9 40.2 100 151 62 93 5.3 8.0 3.81 11.0 245 71 106
W8X40 40.0 8.25 39.8 99 149 62 93 1.6 2.5 7.21 29.9 146 59 89
W10X33 33.0 9.73 38.8 97 146 61 92 2.4 3.6 6.85 21.8 171 56 85
W12X26 26.0 12.2 37.2 93 140 58 88 3.6 5.4 5.33 14.9 204 56 84
W10X30 30.0 10.5 36.6 91 137 57 85 3.1 4.6 4.84 16.1 170 63 95
W8X35 35.0 8.12 34.7 87 130 54 82 1.6 2.4 7.17 27.0 127 50 76
W14X22 22.0 13.7 33.2 83 125 51 76 4.8 7.2 3.67 10.4 199 63 95
W10X26 26.0 10.3 31.3 78 117 49 73 2.9 4.4 4.80 14.9 144 54 80
W8X31 31.0 8.00 30.4 76 114 48 72 1.6 2.4 7.14 24.8 110 46 68
W12X22 22.0 12.3 29.3 73 110 44 67 4.7 7.0 3.00 9.1 156 64 96
W8X28 28.0 8.06 27.2 68 102 42 64 1.7 2.5 5.72 21.0 98 46 69
W10X22 22.0 10.2 26.0 65 98 41 61 2.7 4.0 4.70 13.8 118 49 73
W12X19 19.0 12.2 24.7 62 93 37 56 4.3 6.4 2.90 8.6 130 57 86
W8X24 24.0 7.93 23.1 58 87 37 55 1.6 2.4 5.69 18.9 83 39 58
W10X19 19.0 10.2 21.6 54 81 33 49 3.2 4.8 3.09 9.7 96 51 77
W8X21 21.0 8.28 20.4 51 77 32 48 1.8 2.8 4.45 14.8 75 41 62
W12X16 16.0 12.0 20.1 50 75 30 45 3.8 5.7 2.73 8.0 103 53 79
W6X25 25.0 6.38 18.9 47 71 29 44 1.0 1.5 5.37 23.7 53 41 61
W10X17 17.0 10.1 18.7 47 70 28 43 3.0 4.5 2.98 9.2 82 48 73
W12X14 14.0 11.9 17.4 43 65 26 39 3.4 5.2 2.66 7.7 89 48 71
W8X18 18.0 8.14 17.0 42 64 27 40 1.7 2.6 4.34 13.5 62 37 56
W10X15 15.0 9.99 16.0 40 60 24 36 2.8 4.1 2.86 8.6 69 46 69
W6X20 20.0 6.20 15.0 37 56 23 35 1.0 1.5 5.30 19.8 41 32 48
W8X15 15.0 8.11 13.6 34 51 21 31 1.9 2.9 3.09 10.1 48 40 60
W10X12 12.0 9.87 12.6 31 47 19 29 2.3 3.5 2.77 8.1 54 38 56
W6X16 16.0 6.28 11.7 29 44 18 27 1.1 1.6 3.42 14.1 32 33 49
W5X19 19.0 5.15 11.6 29 44 18 27 0.6 0.9 4.52 23.0 26 28 42
W8X13 13.0 7.99 11.4 28 43 17 26 1.8 2.7 2.98 9.3 40 37 55
W6X15 15.0 5.99 10.8 27 41 17 26 0.9 1.3 5.12 16.5 29 28 41
W5X16 16.0 5.01 9.63 24 36 15 22 0.6 0.9 4.45 19.8 21 24 36
W8X10 10.0 7.89 8.87 22 33 14 21 1.5 2.3 2.97 8.5 31 27 40
W6X12 12.0 6.03 8.30 21 31 13 19 1.0 1.5 3.24 11.2 22 28 42
W4X13 13.0 4.16 6.28 16 24 10 14 0.4 0.6 3.53 19.2 11 23 35
W6X9 9.00 5.90 6.23 16 23 10 15 0.9 1.3 3.20 9.8 16 20 30
W6X8.5 8.50 5.83 5.73 14 21 9 13 0.8 1.3 3.14 9.5 15 20 30
