Format.pptx

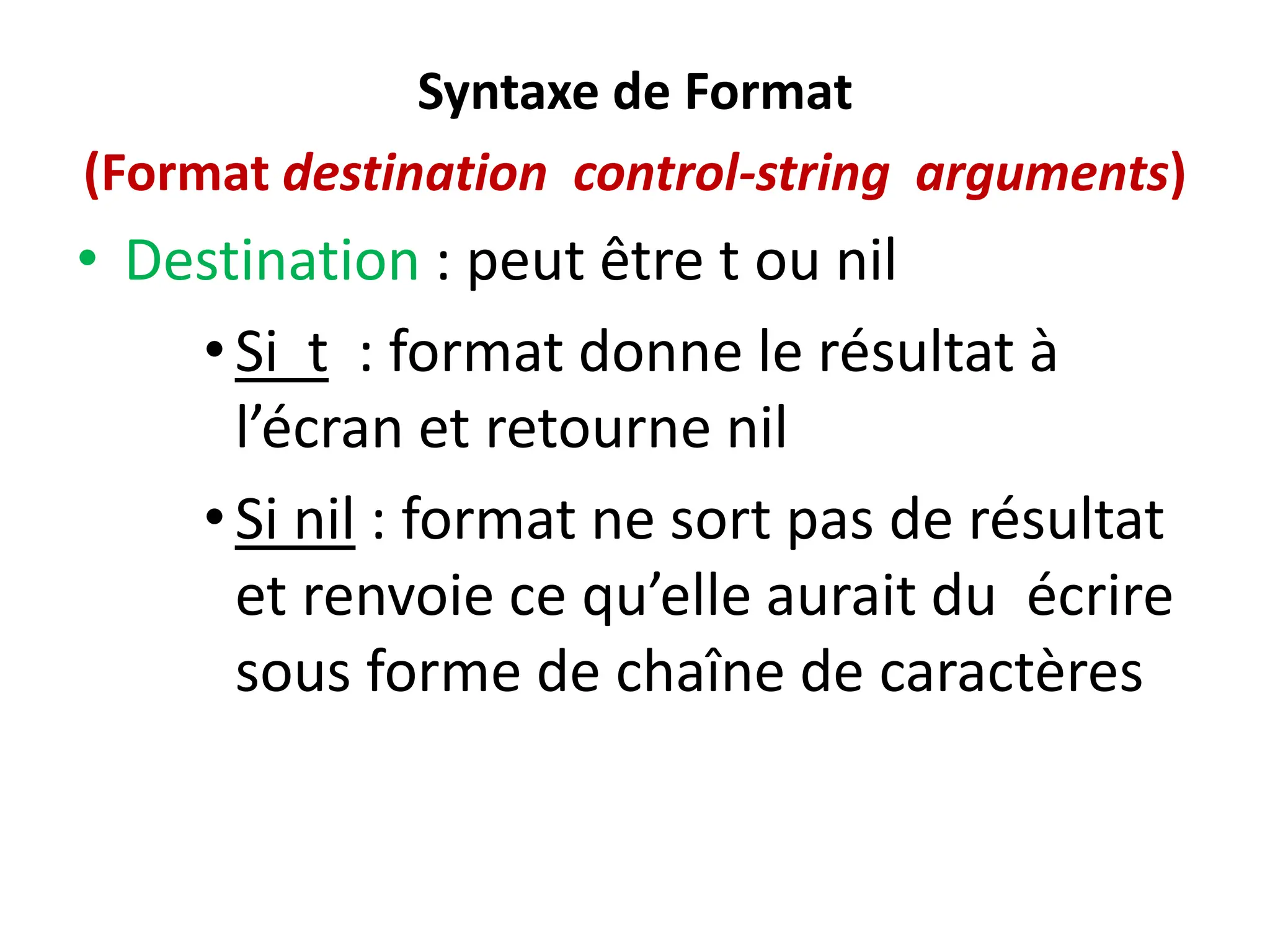

1. Syntaxe de Format
(Format destination control-string arguments)
• Destination : peut être t ou nil
•Si t : format donne le résultat à
l’écran et retourne nil
•Si nil : format ne sort pas de résultat
et renvoie ce qu’elle aurait du écrire
sous forme de chaîne de caractères

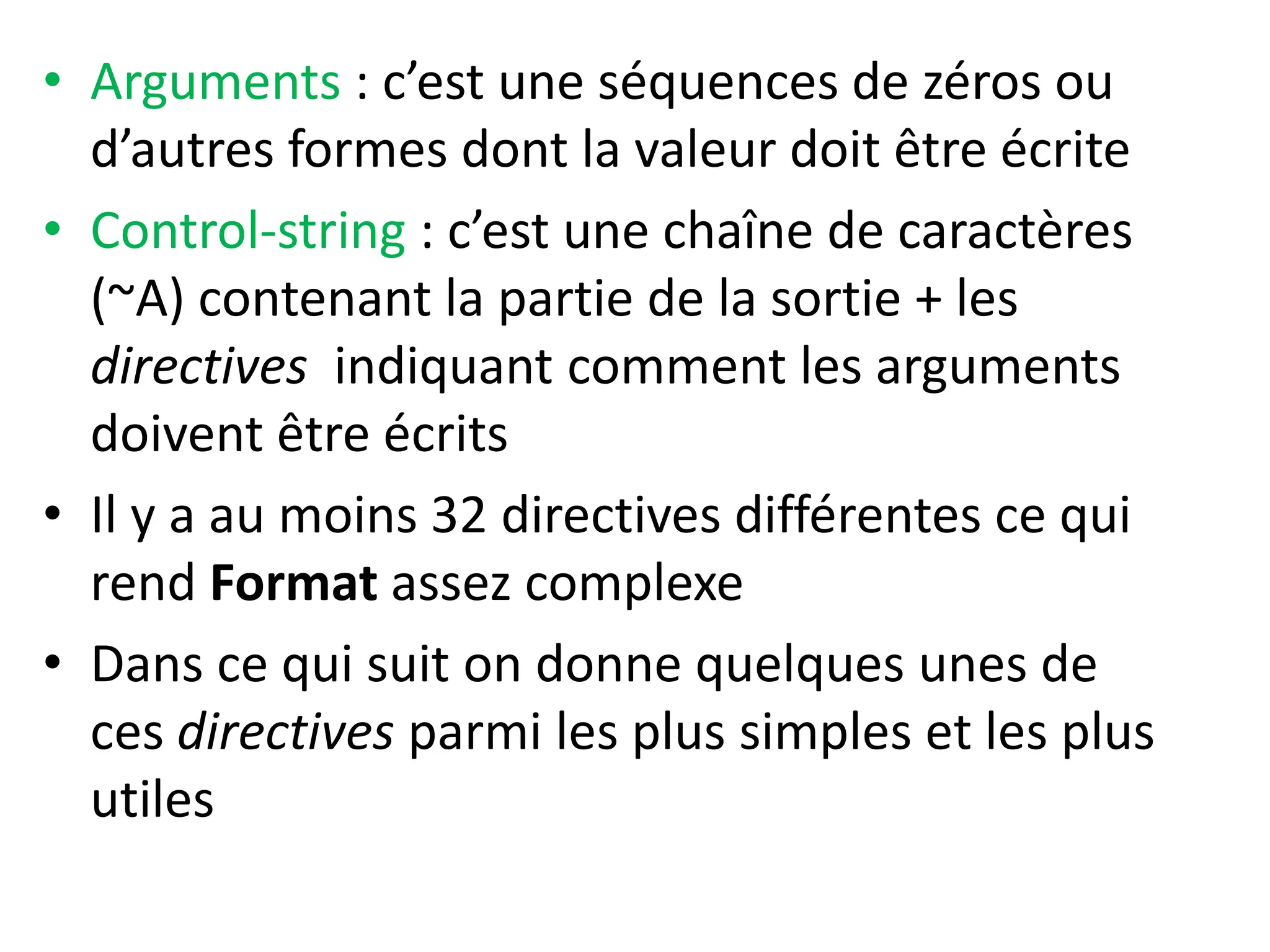

2. • Arguments : c’est une séquences de zéros ou
d’autres formes dont la valeur doit être écrite
• Control-string : c’est une chaîne de caractères
(~A) contenant la partie de la sortie + les
directives indiquant comment les arguments
doivent être écrits
• Il y a au moins 32 directives différentes ce qui
rend Format assez complexe
• Dans ce qui suit on donne quelques unes de
ces directives parmi les plus simples et les plus
utiles
3. • Il y a des directives qui n’appartiennent pas aux
arguments mais permettent de donner des
directions quant à l’apparence de la sortie
La dernière directive permet d’introduire une
control-string sur 2 ou plusieurs lignes
Directive output
~% # nouvelle ligne
~ & # nouvelle ligne sauf si déjà en début
d’une nouvelle ligne
~ ~ ~
~#newline Rien
4. Exemples
> (format t "~&Enter a sentence:")
Enter a sentence:
NIL
> (format nil "~&Enter a sentence:")
"Enter a sentence:"
> (format t "~&Enter a sentence~%:")
Enter a sentence
:
NIL
> (format t "~&Enter a sentence~~")
Enter a sentence~
NIL
5. > (format t "~&Enter a sentence
:")
Enter a sentence
:
NIL
> (format t "~&Enter a sentence~
:")
Enter a sentence:
NIL
6. • Les autres directives contrôlent l’impression
d’un argument et « consomme » un argument
Avec Format on peut évaluer
(format t "~&I heard you say ~A." sentence)
Directive Argument Comment argument est écrit
~ A Any object Without escape character
~S Any object With escape character
~{dir}~ A list Each member according to dir
Minuscule ou
majuscule
7. Directive Interprétation
--------- --------------
~% new line
~& fresh line
~| page break
~T tab stop
~< justification
~> terminate ~<
~C character
~( case conversion
~) terminate ~(
~D decimal integer
~B binary integer
~O octal integer
8. ~X hexadecimal integer
~bR base-b integer
~R spell an integer
~P plural
~F floating point
~E scientific notation
~G ~F or ~E, depending upon magnitude
~$ monetary
~A legibly, without escapes
~S READably, with escapes
~~ ~
