Comment Realiser Cable Jtag

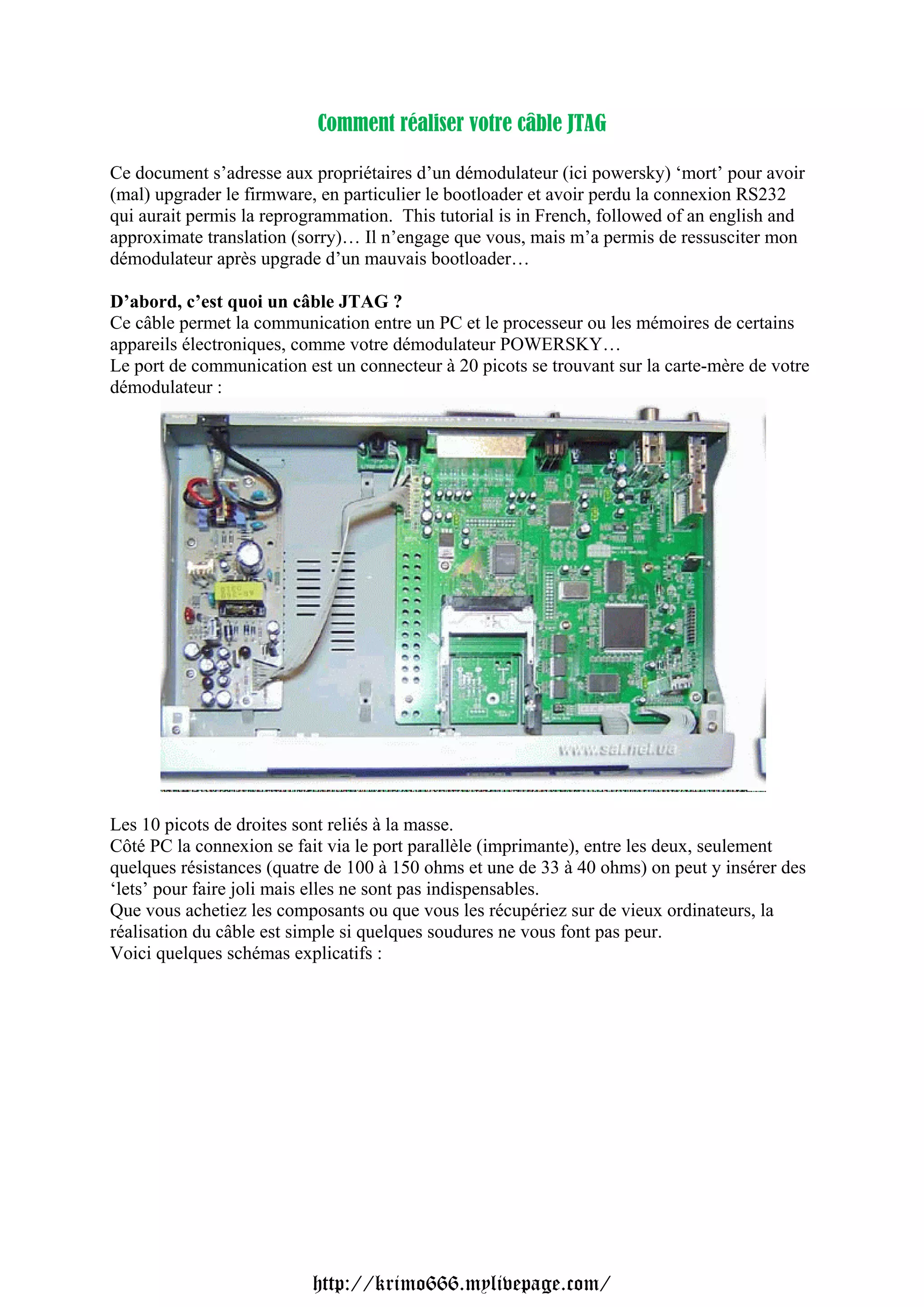

1. Comment réaliser votre câble JTAG
Ce document s’adresse aux propriétaires d’un démodulateur (ici powersky) ‘mort’ pour avoir
(mal) upgrader le firmware, en particulier le bootloader et avoir perdu la connexion RS232
qui aurait permis la reprogrammation. This tutorial is in French, followed of an english and
approximate translation (sorry)… Il n’engage que vous, mais m’a permis de ressusciter mon
démodulateur après upgrade d’un mauvais bootloader…
D’abord, c’est quoi un câble JTAG ?
Ce câble permet la communication entre un PC et le processeur ou les mémoires de certains
appareils électroniques, comme votre démodulateur POWERSKY…
Le port de communication est un connecteur à 20 picots se trouvant sur la carte-mère de votre
démodulateur :
Les 10 picots de droites sont reliés à la masse.
Côté PC la connexion se fait via le port parallèle (imprimante), entre les deux, seulement
quelques résistances (quatre de 100 à 150 ohms et une de 33 à 40 ohms) on peut y insérer des
‘lets’ pour faire joli mais elles ne sont pas indispensables.
Que vous achetiez les composants ou que vous les récupériez sur de vieux ordinateurs, la
réalisation du câble est simple si quelques soudures ne vous font pas peur.
Voici quelques schémas explicatifs :
http://krimo666.mylivepage.com/
3.
Comment reprogrammer le démodulateur ?
Il vous faut reprogrammer la mémoire flash de votre démodulateur, le programme d’interface
entre le flash et l’ordinateur est appelé jkeys, une fois ouvert, appuyez sur « detect », il devrait
trouver le processeur, ici : STi5518MVB-X
Appuyez sur « flash programming »
http://krimo666.mylivepage.com/
4.
Et « Detect »
Les données détectées ici sont celles du Powersky CISK 8210 si il ne trouve pas, essayez avec
« IRD model » = 3700
Effacez la mémoire avant de la programmer puis programmez avec le bon fichier « .bin »
(donné dans le pack) soyez sûr qu’il correspond à votre modèle, par exemple en utilisant un
éditeur de HEX et en cherchant « DTM » et « CISK » (pour mon modèle).
http://krimo666.mylivepage.com/
5.
Et là… rien ne se passe… sauf que la connexion RS232 est à nouveau disponible !
Utilisez le programme « Arioner » pour programmer le « bootloader » (fichier :
S821CISKV_$DTM_BOOT_BUCPCn.auc dans le cas présent), puis enfin le firmware
(fichier : Alex Soft FINAL VIA2 SECA2 CONAX ALL S821CISKV.auc dans le cas présent)
Vous êtes sauvé, mais soyez prudent la prochaine fois !
Cordialement, Julien P.
http://krimo666.mylivepage.com/
6. This document addresses to the owners of a demodulator (here powersky) ` dead' to have
(badly) upgrader the firmware, in particular the bootloader and to have lost the connection
RS232 which would have allowed the reprogramming. This tutorial is in French, followed of
year English and approximate translation (sorry)… It engages only you, but alive my
demodulator allowed me after upgrade of a bad bootloader…
How to carry out your cable JTAG for expensive step?
Initially, it is what a cable JTAG?
This cable allows the communication between a PC and the processor or the memories of
certain electronic instruments, like your demodulator POWERSKY…
The wearing of communication is a connector with 20 barbs being on the mother board of
your demodulator:
The 10 barbs of right-hand sides are connected to the mass.
Side PC connection is made via the parallel port (printer), between the two, only some
resistances (four from 100 to 150 ohms and one from 33 to 40 ohms) one can insert ` lets'
there to make pretty but they are not essential.
That you buy the components or that you recovered them on old computers, the realization of
the cable is simple if some weldings do not frighten you.
Here some explanatory diagrams:
http://krimo666.mylivepage.com/
8. How to reprogram the demodulator ?
You should reprogram the memory flash of your demodulator, the programme of interface
between the flash and the computer is called jkeys, once opened, support on "detect", it
should find the processor, here: STi5518MVB-X
http://krimo666.mylivepage.com/
10. The data detected here are those of Powersky CISK 8210 if it does not find, test with "IRD
model" = 3700
Erase the memory before programming it then program with the good file "bin" (given in the
pack) are sure that it corresponds to your model, for example by using an editor of HEX and
by seeking "DTM" and "CISK" (for my model).
And there… nothing occurs… except that connection RS232 is again available!
Use the program "Arioner" to program the "bootloader" (file:
S82ÇISKV_DTM_BOOT_BUCPCn.auc in this case), then finally the firmware (file:
FINAL Alex Soft VIA2 SECA2 CONAX ALL S82ÇISKV.auc in this case)
You are saved, but are careful the next time!
Cordially, Julien P.
