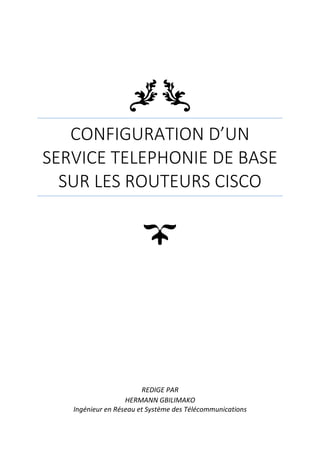

1. CONFIGURATION D’UN
SERVICE TELEPHONIE DE BASE
SUR LES ROUTEURS CISCO
REDIGE PAR
HERMANN GBILIMAKO
Ingénieur en Réseau et Système des Télécommunications
2. CONFIGURATION D’UN SERVICE TELEPHONIE DE BASE SUR
LES ROUTEURS CISCO
HERMANN GBILIMAKO
1
Introduction
Dans ce tutoriel, nous allons voir comment configurer un service de téléphonie
en se servant d’un routeur Cisco.
Prérequis :
Avoir un routeur Cisco disposant d’un iOS (système d’exploitation des
routeurs Cisco) supportant le service de téléphonie. Dans notre cas, nous
avons travaillé sur GNS3 ;
Savoir faire les configurations de base d’un routeur Cisco ;
Disposer d’un téléphone IP Cisco ou dans le cas échéant, installer le logiciel
Cisco IP Communicator sur un pc ;
Architecture

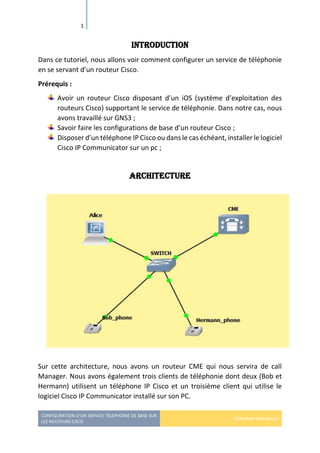

Sur cette architecture, nous avons un routeur CME qui nous servira de call
Manager. Nous avons également trois clients de téléphonie dont deux (Bob et
Hermann) utilisent un téléphone IP Cisco et un troisième client qui utilise le
logiciel Cisco IP Communicator installé sur son PC.
3. CONFIGURATION D’UN SERVICE TELEPHONIE DE BASE SUR
LES ROUTEURS CISCO
HERMANN GBILIMAKO
2

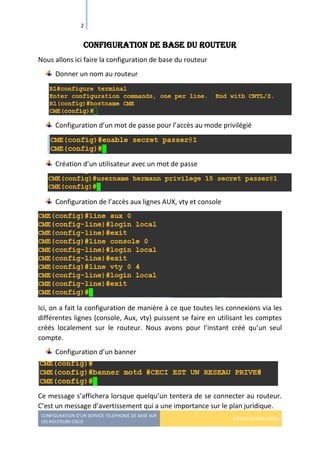

Configuration de base du routeur
Nous allons ici faire la configuration de base du routeur
Donner un nom au routeur
Configuration d’un mot de passe pour l’accès au mode privilégié
Création d’un utilisateur avec un mot de passe
Configuration de l’accès aux lignes AUX, vty et console
Ici, on a fait la configuration de manière à ce que toutes les connexions via les
différentes lignes (console, Aux, vty) puissent se faire en utilisant les comptes
créés localement sur le routeur. Nous avons pour l’instant créé qu’un seul
compte.
Configuration d’un banner
Ce message s’affichera lorsque quelqu’un tentera de se connecter au routeur.
C’est un message d’avertissement qui a une importance sur le plan juridique.
4. CONFIGURATION D’UN SERVICE TELEPHONIE DE BASE SUR
LES ROUTEURS CISCO
HERMANN GBILIMAKO
3

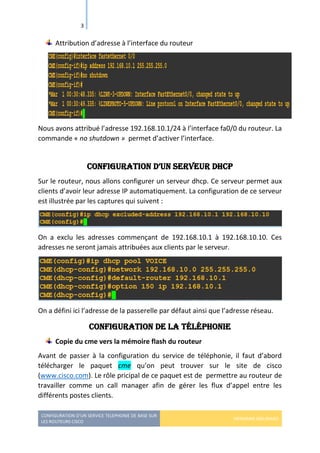

Attribution d’adresse à l’interface du routeur
Nous avons attribué l’adresse 192.168.10.1/24 à l’interface fa0/0 du routeur. La
commande « no shutdown » permet d’activer l’interface.
Configuration d’un serveur dHCP
Sur le routeur, nous allons configurer un serveur dhcp. Ce serveur permet aux
clients d’avoir leur adresse IP automatiquement. La configuration de ce serveur
est illustrée par les captures qui suivent :
On a exclu les adresses commençant de 192.168.10.1 à 192.168.10.10. Ces
adresses ne seront jamais attribuées aux clients par le serveur.
On a défini ici l’adresse de la passerelle par défaut ainsi que l’adresse réseau.
Configuration de la téléphonie
Copie du cme vers la mémoire flash du routeur
Avant de passer à la configuration du service de téléphonie, il faut d’abord
télécharger le paquet cme qu’on peut trouver sur le site de cisco
(www.cisco.com). Le rôle pricipal de ce paquet est de permettre au routeur de
travailler comme un call manager afin de gérer les flux d’appel entre les
différents postes clients.
5. CONFIGURATION D’UN SERVICE TELEPHONIE DE BASE SUR
LES ROUTEURS CISCO
HERMANN GBILIMAKO
4

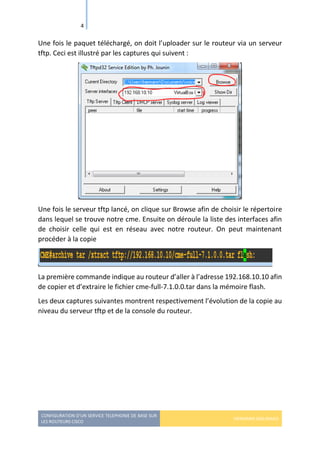

Une fois le paquet téléchargé, on doit l’uploader sur le routeur via un serveur
tftp. Ceci est illustré par les captures qui suivent :
Une fois le serveur tftp lancé, on clique sur Browse afin de choisir le répertoire
dans lequel se trouve notre cme. Ensuite on déroule la liste des interfaces afin
de choisir celle qui est en réseau avec notre routeur. On peut maintenant
procéder à la copie
La première commande indique au routeur d’aller à l’adresse 192.168.10.10 afin
de copier et d’extraire le fichier cme-full-7.1.0.0.tar dans la mémoire flash.
Les deux captures suivantes montrent respectivement l’évolution de la copie au
niveau du serveur tftp et de la console du routeur.
6. CONFIGURATION D’UN SERVICE TELEPHONIE DE BASE SUR
LES ROUTEURS CISCO
HERMANN GBILIMAKO
5

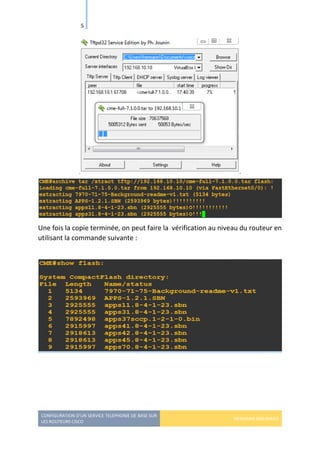

Une fois la copie terminée, on peut faire la vérification au niveau du routeur en
utilisant la commande suivante :
7. CONFIGURATION D’UN SERVICE TELEPHONIE DE BASE SUR
LES ROUTEURS CISCO
HERMANN GBILIMAKO
6

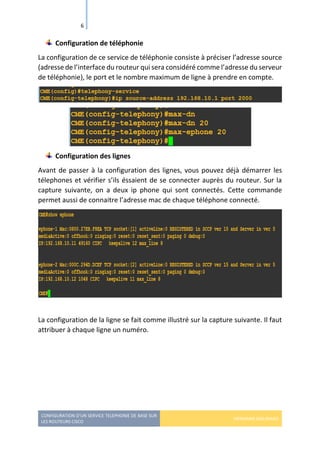

Configuration de téléphonie
La configuration de ce service de téléphonie consiste à préciser l’adresse source
(adresse de l’interface du routeur qui sera considéré comme l’adresse du serveur
de téléphonie), le port et le nombre maximum de ligne à prendre en compte.
Configuration des lignes
Avant de passer à la configuration des lignes, vous pouvez déjà démarrer les
télephones et vérifier s’ils éssaient de se connecter auprès du routeur. Sur la
capture suivante, on a deux ip phone qui sont connectés. Cette commande
permet aussi de connaitre l’adresse mac de chaque téléphone connecté.
La configuration de la ligne se fait comme illustré sur la capture suivante. Il faut
attribuer à chaque ligne un numéro.
8. CONFIGURATION D’UN SERVICE TELEPHONIE DE BASE SUR
LES ROUTEURS CISCO
HERMANN GBILIMAKO
7

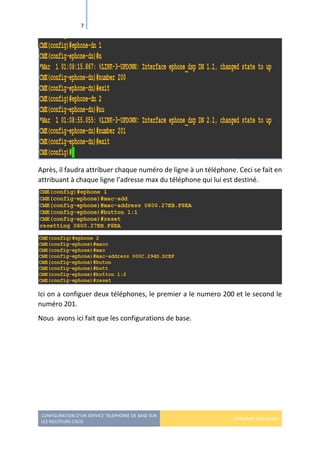

Après, il faudra attribuer chaque numéro de ligne à un téléphone. Ceci se fait en
attribuant à chaque ligne l’adresse max du téléphone qui lui est destiné.
Ici on a configuer deux téléphones, le premier a le numero 200 et le second le
numéro 201.
Nous avons ici fait que les configurations de base.
9. CONFIGURATION D’UN SERVICE TELEPHONIE DE BASE SUR
LES ROUTEURS CISCO
HERMANN GBILIMAKO
8
test d’aPPel

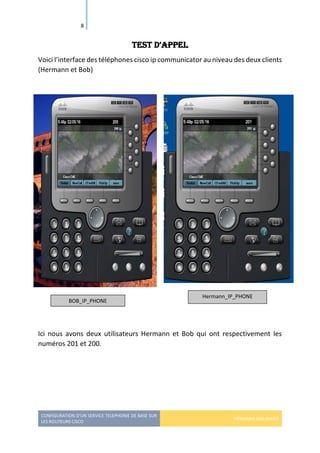

Voici l’interface des téléphones cisco ip communicator au niveau des deux clients
(Hermann et Bob)
Ici nous avons deux utilisateurs Hermann et Bob qui ont respectivement les
numéros 201 et 200.
BOB_IP_PHONE
Hermann_IP_PHONE
10. CONFIGURATION D’UN SERVICE TELEPHONIE DE BASE SUR
LES ROUTEURS CISCO
HERMANN GBILIMAKO
9

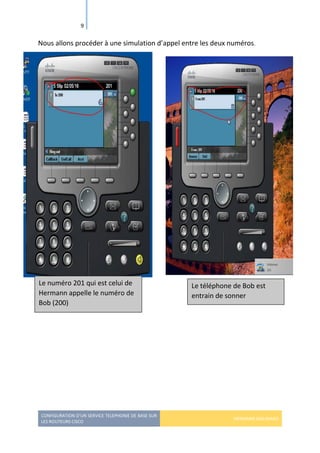

Nous allons procéder à une simulation d’appel entre les deux numéros.
Le numéro 201 qui est celui de
Hermann appelle le numéro de
Bob (200)
Le téléphone de Bob est
entrain de sonner
11. CONFIGURATION D’UN SERVICE TELEPHONIE DE BASE SUR
LES ROUTEURS CISCO
HERMANN GBILIMAKO
10

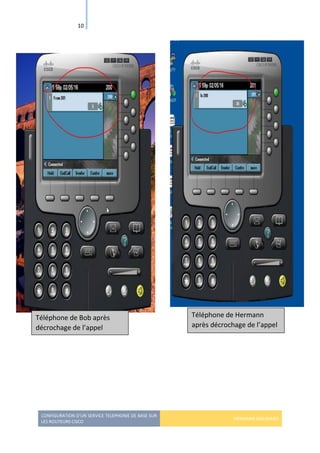

Téléphone de Bob après
décrochage de l’appel
Téléphone de Hermann
après décrochage de l’appel
12. CONFIGURATION D’UN SERVICE TELEPHONIE DE BASE SUR
LES ROUTEURS CISCO
HERMANN GBILIMAKO
11

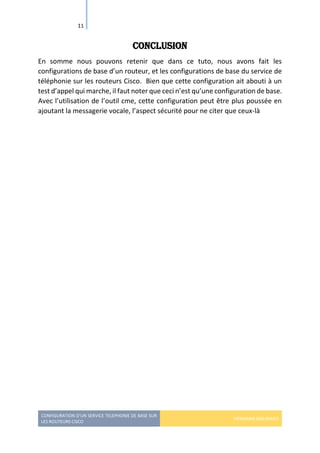

Conclusion
En somme nous pouvons retenir que dans ce tuto, nous avons fait les
configurations de base d’un routeur, et les configurations de base du service de
téléphonie sur les routeurs Cisco. Bien que cette configuration ait abouti à un
test d’appel qui marche, il faut noter que ceci n’est qu’une configuration de base.
Avec l’utilisation de l’outil cme, cette configuration peut être plus poussée en
ajoutant la messagerie vocale, l’aspect sécurité pour ne citer que ceux-là
